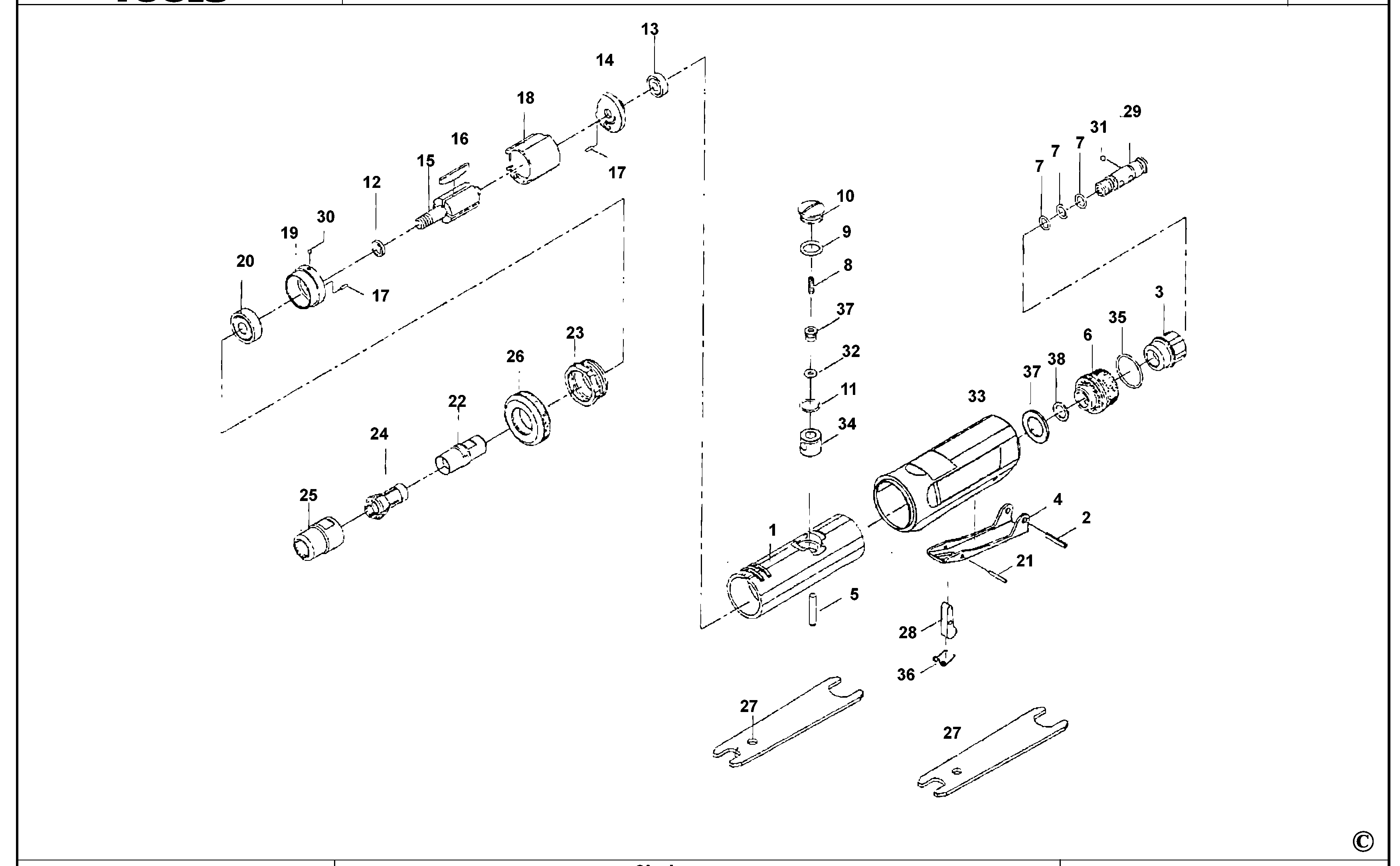

AGQP50M GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AGQP50M-01 | 1 | HOUSING MOTOR | GB |  |
||
| 2 | AS20-51 | 1 | PIN | GB | |
||
| 3 | AGQP50M-03 | 1 | INLET | GB | |
||
| 4 | AGQP50M-04 | 1 | LEVER | GB | |
||
| 5 | AGQP50M-05 | 1 | SHAFT | GB | |
||
| 6 | AGQP50M-06 | 1 | DEFLECTOR | GB | |
||
| 7 | AS20-52 | 1 | O RING | GB | |
||
| 8 | AGQP50M-08 | 1 | SPRING | GB | |
||
| 9 | AGQP50M-09 | 1 | O RING | GB | |
||
| 10 | AGQP50M-10 | 1 | SCREW | GB | |
||
| 11 | AGQP50M-11 | 1 | O RING | GB | |
||
| 12 | AGQP50M-12 | 1 | SPACER | GB | |
||
| 13 | AGQP50M-13 | 1 | BEARING,BALL | GB | |
||
| 14 | AGQP50M-14 | 1 | PLATE | GB | |
||
| 15 | AGQP50M-15 | 1 | ROTOR | GB | |
||
| 16 | AGQP50M-16 | 1 | BLADE | GB | |
||
| 17 | AD1400-14 | 1 | PLATE | GB | |
||
| 18 | AGQP50M-18 | 1 | CYLINDER | GB | |
||
| 19 | AGQP50M-19 | 1 | PLATE | GB | |
||
| 20 | AD3800AH-20 | 1 | BEARING,BALL | GB |  |
||
| 21 | AGQP50M-21 | 1 | PIN | GB | |
||
| 22 | AGQP50M-22 | 1 | SPINDLE | GB | |
||
| 23 | AGQP50M-23 | 1 | COUPLING | GB | |
||
| 24 | AGQP100-24 | 1 | COLLET | GB | |
||
| 25 | AGQP50M-25 | 1 | COLLET NUT | GB | |
||
| 26 | AGQP50M-26 | 1 | CAP | GB | |
||
| 27 | AGQP50M-27 | 1 | SPANNER | GB | |
||
| 28 | AGQP50M-28 | 1 | BAR | GB | |
||
| 29 | AGQP50M-29 | 1 | SHAFT | GB | |
||
| 30 | AGQP50M-30 | 1 | BALL | GB | |
||
| 31 | AWQP120-24 | 1 | BALL | GB | |
||
| 32 | AWQP380-37 | 1 | O RING | GB | |
||
| 33 | AGQP50M-33 | 1 | SPINDLE | GB | |
||
| 34 | AGQP50M-34 | 1 | BUSHING | GB | |
||
| 35 | AGQP50M-35 | 1 | O RING | GB | |
||
| 36 | AGQP50M-28 | 1 | BAR | GB | |
||
| 37 | AGQP100-41 | 1 | SPRING | GB | |
||
| 38 | AGQP50M-38 | 1 | WASHER | GB | |
||
| 39 | AGQP50M-39 | 1 | FELT | GB | |
