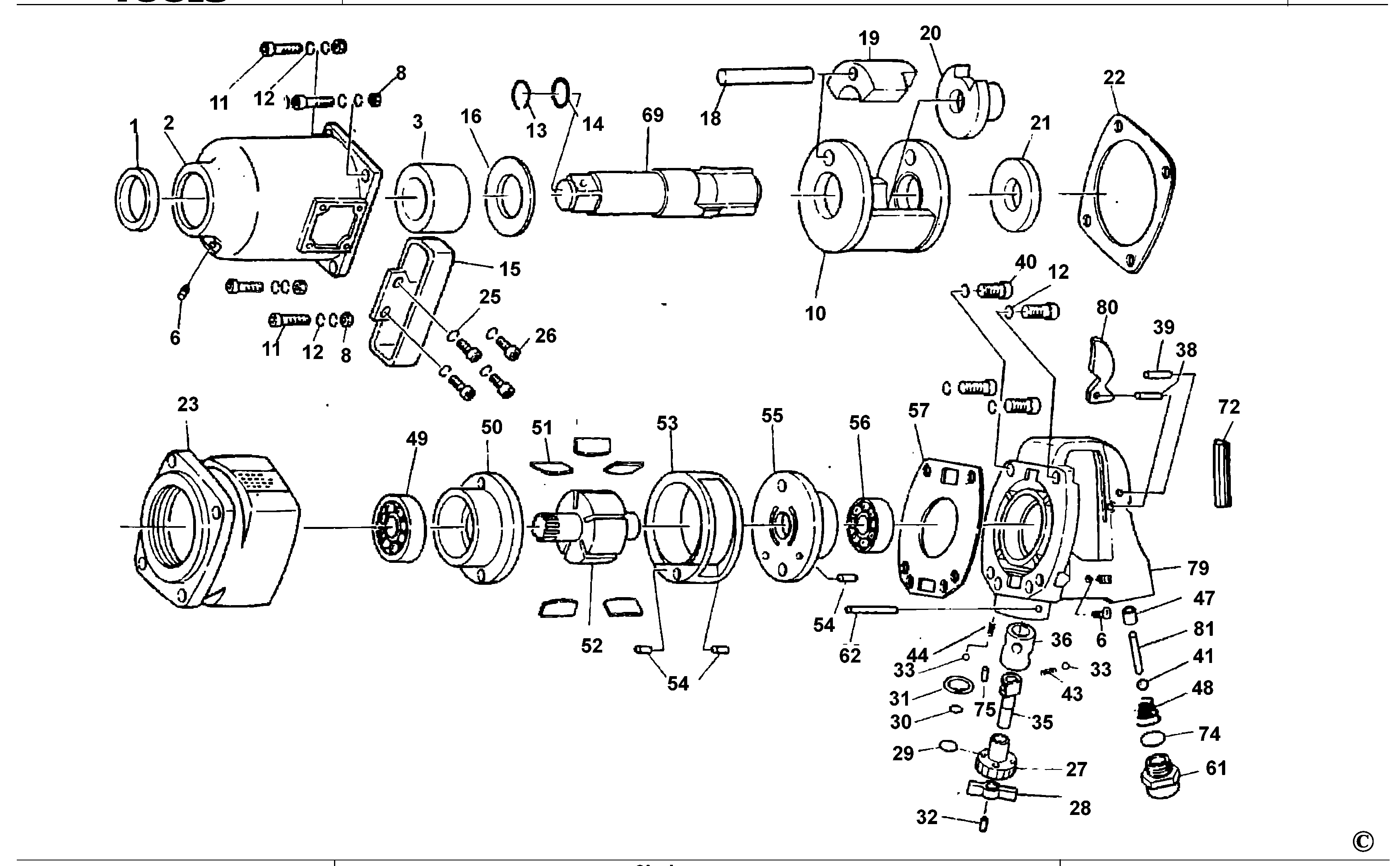

AW288 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW288-01 | 1 | SEAL | GB |  |
||
| 2 | AW288-02 | 1 | CASE | GB | |
||
| 3 | AW288-03 | 1 | BUSHING | GB | |
||
| 6 | AW288-06 | 1 | SCREW | GB | |
||
| 8 | AW288-08 | 1 | NUT | GB | |
||
| 10 | AW288-10 | 1 | FRAME | GB | |
||
| 11 | AW288-11 | 1 | BOLT | GB | |
||
| 12 | AW288-12 | 1 | WASHER | GB | |
||
| 13 | AW188-59 | 1 | RING | GB | |
||
| 14 | AW188-58 | 1 | O RING | GB | |
||
| 15 | AW288-15 | 1 | HANDLE | GB | |
||
| 16 | AW288-16 | 1 | WASHER | GB | |
||
| 18 | AW288-18 | 1 | PIN | GB | |
||
| 19 | AW288-19 | 1 | HAMMER | GB | |
||
| 20 | AW288-20 | 1 | CAM | GB | |
||
| 21 | AW288-21 | 1 | SPACER | GB | |
||
| 22 | AW288-22 | 1 | FELT | GB | |
||
| 23 | AW288-23 | 1 | CASE | GB | |
||
| 25 | AW157-42 | 1 | WASHER | GB | |
||
| 26 | AW288-26 | 1 | BOLT | GB | |
||
| 27 | AW288-27 | 1 | VALVE | GB | |
||
| 28 | AW288-28 | 1 | LEVER | GB | |
||
| 29 | AW288-29 | 1 | O RING | GB | |
||
| 30 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 31 | AW288-31 | 1 | RING | GB | |
||
| 32 | AW288-32 | 1 | PIN | GB | |
||
| 33 | AR133-43 | 1 | BALL | GB | |
||
| 35 | AW288-35 | 1 | BALL | GB | |
||
| 36 | AW288-36 | 1 | BUSHING | GB | |
||
| 38 | AW288-39 | 1 | PIN | GB | |
||
| 39 | AW288-39 | 1 | PIN | GB | |
||
| 40 | AW288-40 | 1 | BOLT | GB | |
||
| 41 | AW288-41 | 1 | BALL | GB | |
||
| 43 | AW288-43 | 1 | SPRING | GB | |
||
| 44 | AW288-44 | 1 | SPRING | GB | |
||
| 47 | AW288-47 | 1 | BUSHING | GB | |
||
| 48 | AW288-48 | 1 | SPRING | GB | |
||
| 49 | AW288-49 | 1 | BEARING | GB | |
||
| 50 | AW288-50 | 1 | PLATE | GB | |
||
| 51 | AW288-51 | 1 | BLADE | GB | |
||
| 52 | AW288-52 | 1 | ROTOR | GB | |
||
| 53 | AW288-53 | 1 | CYLINDER | GB | |
||
| 54 | AW288-54 | 1 | PIN | GB | |
||
| 55 | AW288-55 | 1 | PLATE | GB | |
||
| 56 | AW288-56 | 1 | BEARING,BALL | GB | |
||
| 57 | AW288-57 | 1 | FELT | GB | |
||
| 61 | AW288-61 | 1 | BUSHING | GB | |
||
| 62 | AW288-62 | 1 | PIN | GB | |
||
| 69 | AW288-69 | 1 | ANVIL | GB | |
||
| 72 | AW288-72 | 1 | GUARD | GB | |
||
| 74 | AS707-06 | 1 | O RING | GB | |
||
| 75 | AW288-75 | 1 | ROLL PIN | GB | |
||
| 79 | AW288-79 | 1 | FRAME | GB | |
||
| 80 | AW288-80 | 1 | LEVER | GB | |
||
| 81 | AW288-81 | 1 | PIN | GB | |
