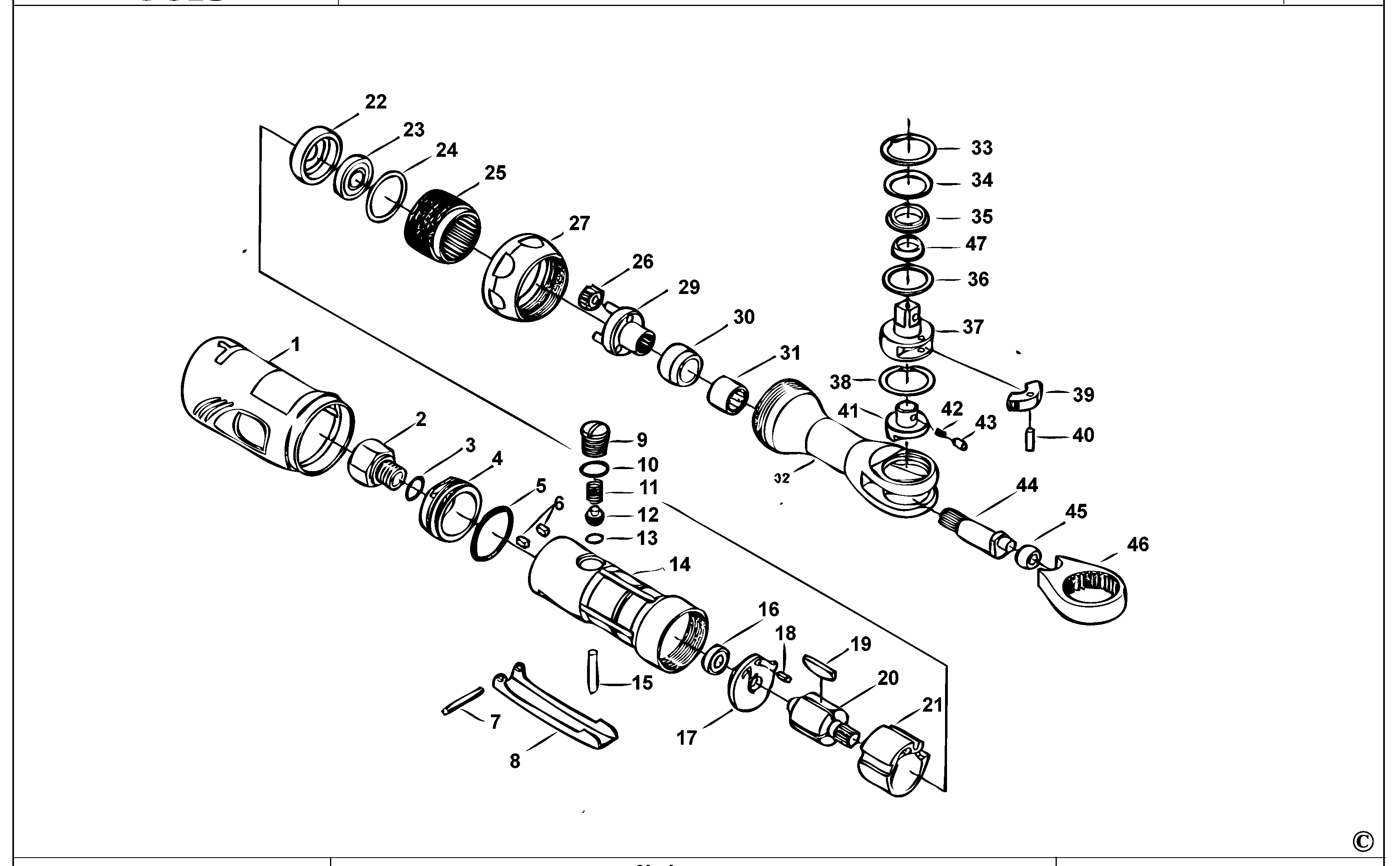

AR7760A RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AR7760A-01 | 1 | COVER | GB |  |
||
| 2 | AR7760A-02 | 1 | BUSHING | GB | |
||
| 3 | AD527-30 | 1 | O RING | GB |  |
||
| 4 | AR250-04 | 1 | DEFLECTOR | GB | |
||
| 5 | AR250-05 | 1 | O RING | GB | |
||
| 6 | AS517-32 | 1 | FOAM | GB | |||
| 7 | AW156TR-46 | 1 | PIN | GB | |||
| 8 | AR250-08 | 1 | LEVER | GB | |
||
| 9 | AR133-05 | 1 | LEVER | GB | |
||
| 10 | AR133-06 | 1 | O RING | GB | |
||
| 11 | AR133-07 | 1 | SPRING | GB | |
||
| 12 | AR133-08 | 1 | VALVE | GB | |
||
| 13 | AR133-09 | 1 | O RING | GB | |
||
| 14 | AR250-14 | 1 | HOUSING MOTOR | GB | |
||
| 15 | AR133-10 | 1 | PLUNGER | GB | |
||
| 16 | AR760-12 | 1 | BEARING | GB | |
||
| 17 | AR7760-17 | 1 | PLATE | GB | |
||
| 18 | AR2760C-13 | 1 | PIN | GB | |
||
| 19 | AR250-19 | 1 | BLADE | GB | |
||
| 20 | AR250-20 | 1 | ROTOR | GB | |
||
| 21 | AR250-21 | 1 | CYLINDER | GB | |
||
| 22 | AR7760-22 | 1 | PLATE | GB | |
||
| 23 | AR133-18 | 1 | BEARING PLATE | GB | |
||
| 24 | AR760-20 | 1 | WASHER LOCK | GB | |
||
| 25 | AR2765-22 | 1 | PLATE | GB | |
||
| 26 | AR760-21 | 1 | GEAR | GB | |
||
| 27 | AR250-30 | 1 | NUT | GB | |
||
| 29 | AR760-23 | 1 | CAGE | GB | |
||
| 30 | AR2760C-23 | 1 | BUSHING | GB | |
||
| 31 | AR760-26 | 1 | BEARING NEEDLE | GB | |
||
| 32 | AR7760-32 | 1 | HOUSING | GB | |
||
| 33 | AR760-42 | 1 | RING | GB | |
||
| 34 | AR2865-48 | 1 | WASHER | GB | |
||
| 35 | AR2865-47 | 1 | WASHER | GB | |
||
| 36 | AR2865-45 | 1 | WASHER | GB | |
||
| 37 | AR760-43 | 1 | ANVIL | GB | |
||
| 38 | AR2865-44 | 1 | WASHER | GB | |
||
| 39 | AR760-37 | 1 | PAWL | GB | |
||
| 40 | AR760-36 | 1 | PIN | GB | |
||
| 41 | AR760-32 | 1 | BUTTON | GB | |
||
| 42 | AR760-33 | 1 | SPRING | GB | |
||
| 43 | AR760-34 | 1 | PIN | GB | |
||
| 44 | AR7760-44 | 1 | CRANKSHAFT | GB | |
||
| 45 | AR760-29 | 1 | BUSHING | GB | |
||
| 46 | AR760-30 | 1 | YOKE | GB | |
||
| 47 | AR2865-46 | 1 | SLEEVE | GB | |
