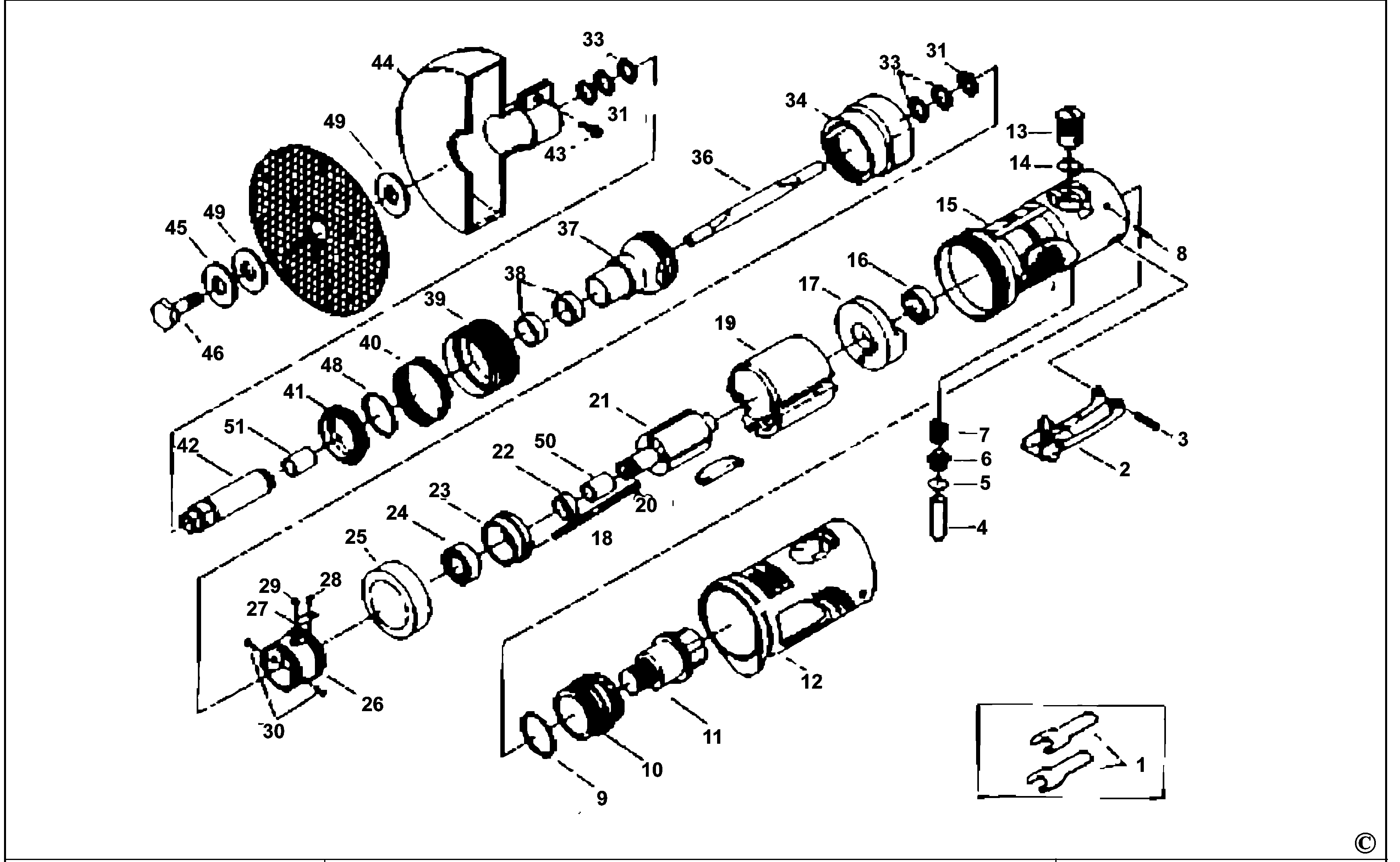

AT35A CUT OFF MACHINE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AT35-01 | 1 | WRENCH SET | GB |  |
||
| 2 | AG50-29 | 1 | LEVER | GB |  |
||
| 3 | AW156TR-46 | 1 | PIN | GB | |||
| 4 | AR133-10 | 1 | PLUNGER | GB | |
||
| 5 | AR133-09 | 1 | O RING | GB | |
||
| 6 | AR133-08 | 1 | VALVE | GB | |
||
| 7 | AR133-07 | 1 | SPRING | GB | |
||
| 9 | AG70-08 | 1 | O RING | GB | |
||
| 10 | AG70-10 | 1 | SLEEVE | GB | |||
| 11 | AG60-27 | 1 | BUSHING | GB | |
||
| 12 | AG70-12 | 1 | COVER | GB | |
||
| 13 | AG60-17 | 1 | REGULATOR | GB | |
||
| 14 | AR134-10 | 1 | O RING | GB | |||
| 15 | AT35A-15 | 1 | HOUSING MOTOR | GB | |
||
| 16 | ADG210-11 | 1 | BEARING,BALL | GB | |
||
| 17 | AG70-17 | 1 | PLATE | GB | |
||
| 18 | AT35A-18 | 1 | PIN | GB | |
||
| 19 | AG70-19 | 1 | CYLINDER | GB | |
||
| 20 | AG70-20 | 1 | BLADE | GB | |
||
| 21 | AT35-21 | 1 | ROTOR | GB | |
||
| 22 | AT35-22 | 1 | BEARING | GB | |
||
| 23 | AT35-23 | 1 | PLATE | GB | |
||
| 24 | AW435-20 | 1 | BEARING,BALL | GB | |
||
| 25 | AT35A-25 | 1 | LOCKING RING | GB | |
||
| 26 | AT35A-26 | 1 | JOINT | GB | |
||
| 27 | AT35-27 | 1 | SPRING | GB | |
||
| 28 | AT35-28 | 1 | SCREW | GB | |
||
| 29 | ASD810-11 | 1 | BALL STEEL | GB | |
||
| 30 | AT35-30 | 1 | SCREW | GB | |
||
| 31 | AT35-31 | 1 | RING | GB | |
||
| 33 | AT35A-33 | 1 | WASHER | GB | |
||
| 34 | AT35A-34 | 1 | LOCKING RING | GB | |
||
| 36 | AT35-36 | 1 | SHAFT | GB | |
||
| 37 | AT35-37 | 1 | SHAFT | GB | |
||
| 38 | AT35-38 | 1 | BEARING | GB | |
||
| 39 | AT35-39 | 1 | SLEEVE | GB | |
||
| 40 | AT35-40 | 1 | SPRING | GB | |
||
| 41 | AT35-41 | 1 | RING | GB | |
||
| 42 | AT35A-42 | 1 | DRIVE SHAFT | GB | |
||
| 43 | AW138-52 | 1 | SCREW | GB | |
||
| 44 | AT35-44 | 1 | COVER | GB | |
||
| 45 | APF600-22 | 1 | WASHER | GB | |
||
| 46 | AT35-46 | 1 | BOLT | GB | |
||
| 48 | AW135-20 | 1 | O RING | GB | |
||
| 49 | AT35-49 | 1 | WASHER | GB | |
||
| 50 | AT35-50 | 1 | BUSHING | GB | |
||
| 51 | AT35A-51 | 1 | BUSHING | GB | |
||
| 101 | 839180 | 1 | ELEMENT | GB | |
||
| 102 | 568386-00 | 1 | CORD PROTECTOR | GB | |
||
| 103 | 569182-00 | 1 | ROD | GB | |
||
| 104 | 146861-00 | 1 | PINION | GB | |
||
| 105 | N504731 | 1 | GEARBOX SA | GB | |||
| 106 | 869160-04 | 1 | HANDLE & COVER | GB | |
||
| 107 | 831244 | 1 | BUTTON | GB | |
||
| 109 | 1004772-40 | 1 | HEAD SA | GB | |
||
| 110 | 1004512-37 | 1 | REGULATOR | GB | |
||
| 111 | 569112-00 | 1 | SPRING | GB | |
||
| 112 | 322370 | 1 | HANDLE | GB | |
||
| 113 | 289020 | 1 | JAW | GB | |
||
| 117 | 567819-00 | 2 | FIELD SA | GB | |
||
| 120 | 596151-00 | 1 | PLATEN | GB | |
||
| 121 | 279840-00 | 1 | KNOB | GB | |
||
| 124 | 148347 | 1 | CLIP | GB | |
||
| 125 | 499742-00 | 1 | COVER | GB | |
||
| 126 | 90542787 | 1 | HOOK | GB | |
||
| 129 | 568397-00 | 1 | AXLE SA | GB | |
||
| 130 | A25226 | 1 | STAND | GB | |
||
| 131 | 586840-01 | 1 | RATING PLATE | GB | |
||
| 134 | 1004772-47 | 1 | HEAD SA | GB | |
||
| 135 | 1004772-42 | 1 | HEAD SA | GB | |
||
| 136 | 494053-00 | 1 | ECCENTRIC | GB | |
||
| 137 | N876221 | 1 | CHASSIS SA | GB | |||
| 138 | N381301 | 1 | FENCE LH | GB | |||
| 139 | N032830 | 4 | BRUSH & LEAD | GB | |
||
| 140 | 647903-00 | 1 | RATING PLATE | GB | |
||
| 143 | N742825 | 1 | PIVOT SA | GB | |||
| 146 | N044840 | 2 | RATING PLATE | GB | |
||
| 147 | 596633-00 | 2 | HANDLE COVER | GB | |
||
| 148 | 278054-00 | 2 | KEY | GB | |
||
| 149 | 6010085-05 | 2 | SWITCH | GB | |||
| 150 | 90538466 | 3 | SLEEVE BEARING | GB | |
||
| 153 | 90626849 | 1 | SPRING | GB | |
||
| 154 | N306340 | 2 | SIDE HANDLE | GB | |
||
| 155 | 596149-00 | 5 | SCREW | GB | |
||
| 160 | 642025-00 | 1 | WARNING LABEL | GB | |
||
| 161 | 123286-00 | 1 | PINION | GB | |
||
| 163 | 879747-49 | 1 | BLOCK | GB | |
||
| 165 | 372818 | 1 | HANDLE SA | GB | |||
| 166 | 568551-00 | 1 | NUT | GB | |
||
| 167 | 568550-00 | 2 | NUT | GB | |
||
| 168 | 577809-00 | 1 | LEVER | GB | |||
| 169 | 6010073-31 | 1 | BLADE SA | SHAFT & BLADE OF GRI | GB | |
|
| 170 | N675694 | 1 | ROD SA | GB | |||
| 172 | 596578-00 | 1 | PIN | GB | |
||
| 176 | 151946-13 | 1 | BATTERY | GB | |||
| 800 | 6010023-08 | 1 | BASE | CAST IRON | GB | |
|
| 846 | 321948 | 1 | LEVER | GB | |
