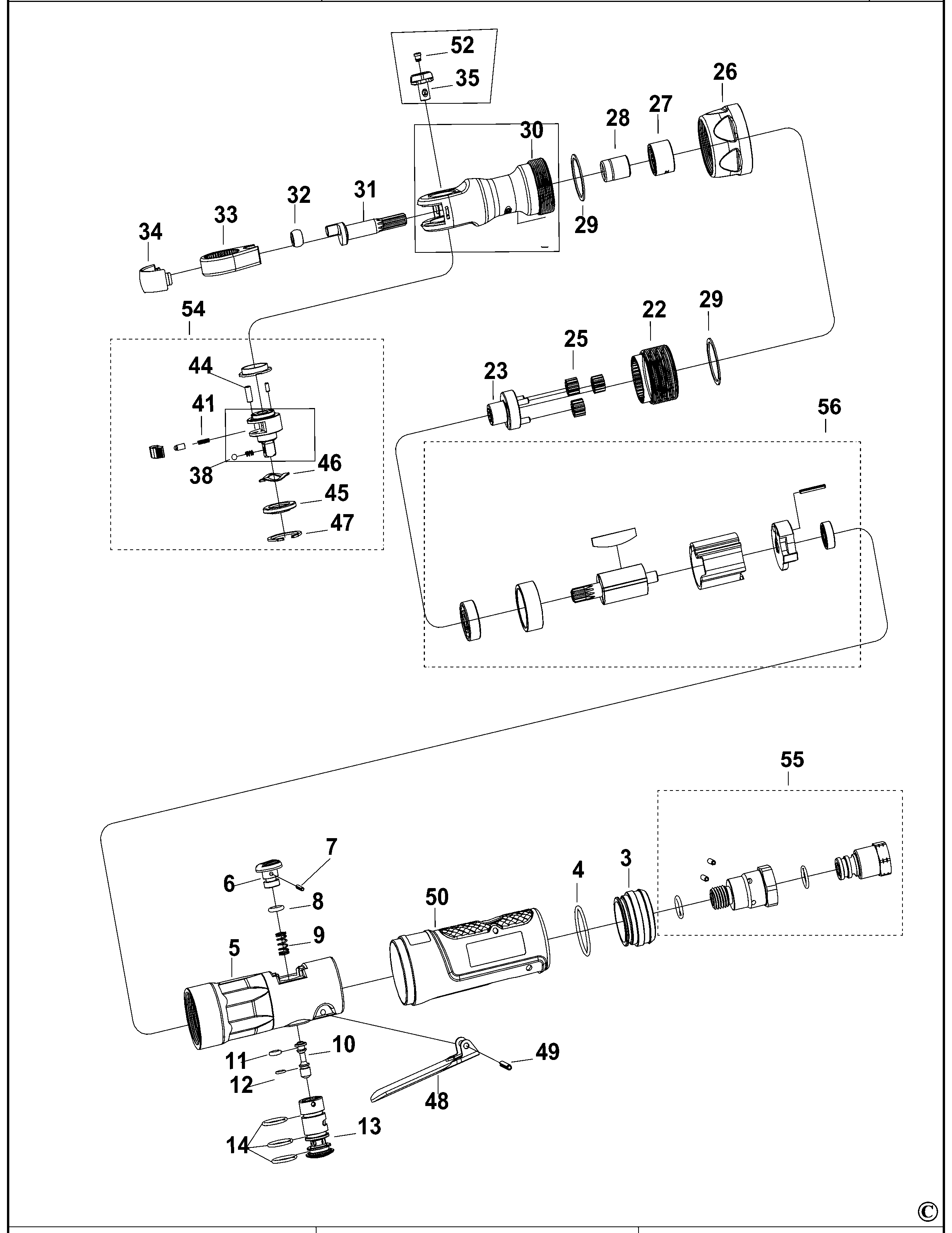

ARM525 CUT OFF Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 31Y200070 | 1 | DEFLECTOR | GB |  |
||
| 4 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 5 | 31H200017 | 1 | HOUSING MOTOR | GB |  |
||
| 6 | 31P200001 | 1 | REGULATOR | GB | |
||
| 7 | 31R200238 | 1 | PIN | GB | |
||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 9 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 10 | 31P200002 | 1 | PLUNGER | GB | |
||
| 11 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 12 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 13 | 31P200003 | 1 | REGULATOR | GB | |
||
| 14 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 22 | 31G200022 | 1 | GEAR | GB | |
||
| 23 | 31G200023 | 1 | SPINDLE | GB | |
||
| 25 | 31G200024 | 1 | GEAR | GB | |
||
| 26 | 31H200018 | 1 | NUT | GB | |
||
| 27 | 31R200243 | 1 | BEARING | GB | |
||
| 28 | 31R200207 | 1 | SEAL | GB | |
||
| 29 | 31R200244 | 1 | SPACER | GB | |
||
| 31 | 31D200050 | 1 | CRANKSHAFT | GB | |
||
| 32 | 31D200051 | 1 | BUSHING | GB | |
||
| 33 | 31D200052 | 1 | YOKE | GB | |
||
| 34 | 31Y200071 | 1 | HOUSING | GB | |
||
| 35 | 31Y100000 | 1 | KNOB | GB | |
||
| 36 | 31R200245 | 1 | WASHER | GB | |
||
| 38 | 31D100026 | 1 | ANVIL | GB | |
||
| 41 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 44 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 45 | 31R200252 | 1 | WASHER | GB | |
||
| 46 | 31R200253 | 1 | WASHER SPECIAL | GB | |
||
| 47 | 31R200254 | 1 | RING | GB | |
||
| 48 | 31P200005 | 1 | TRIGGER | GB | |
||
| 49 | 31R200255 | 1 | PIN | GB | |
||
| 50 | 31H200020 | 1 | GRIP | GB | |||
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 54 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 55 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 56 | 000000-00 | 1 | NO LONGER AVAILABLE | GB |
