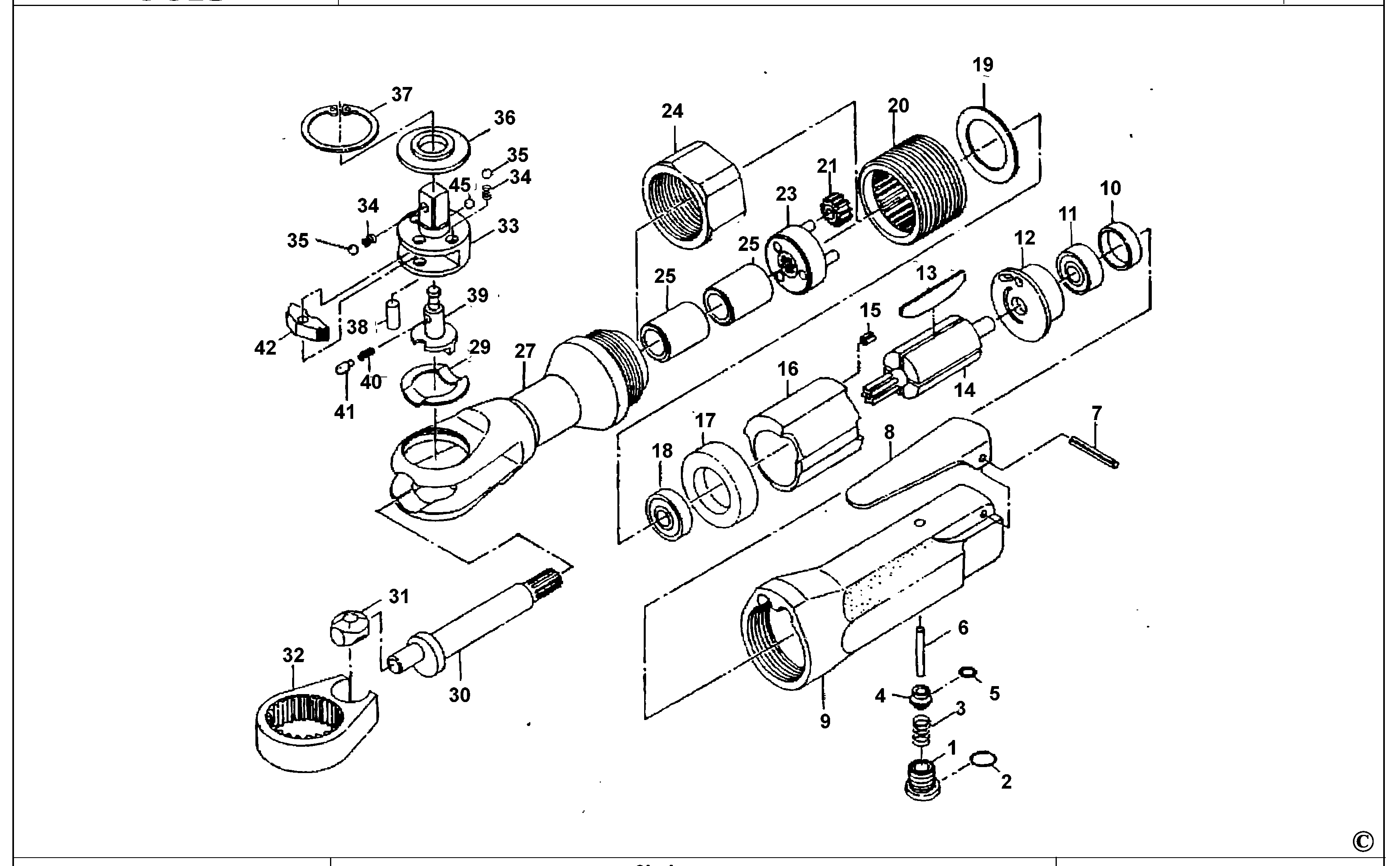

AR154 RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AR133-05 | 1 | LEVER | GB |  |
||
| 2 | AR133-06 | 1 | O RING | GB | |
||
| 3 | AR133-07 | 1 | SPRING | GB | |
||
| 4 | AR133-08 | 1 | VALVE | GB | |
||
| 5 | AR133-09 | 1 | O RING | GB | |
||
| 6 | AR133-10 | 1 | PLUNGER | GB | |
||
| 7 | AR133-02 | 1 | PIN | GB | |
||
| 8 | AR133-04 | 1 | LEVER | GB |  |
||
| 9 | AR154-01 | 1 | HOUSING | GB | |
||
| 10 | AR133-48 | 1 | CAP | GB | |
||
| 11 | ADG210-11 | 1 | BEARING,BALL | GB | |
||
| 13 | AR133-14 | 1 | BLADE | GB | |
||
| 14 | AR144-14 | 1 | ROTOR | GB | |
||
| 15 | AR133-15 | 1 | PIN | GB | |
||
| 16 | AR133-16 | 1 | CYLINDER | GB | |
||
| 18 | AR133-18 | 1 | BEARING PLATE | GB | |
||
| 19 | AR133-20 | 1 | SPACER | GB | |
||
| 20 | AR144-20 | 1 | GEAR | GB | |
||
| 21 | AR144-21 | 1 | GEAR | GB | |
||
| 23 | AR144-23 | 1 | CAGE | GB | |
||
| 24 | AR133-19 | 1 | NUT | GB | |
||
| 25 | AR133-29 | 1 | BUSHING | GB | |
||
| 27 | AR144-27 | 1 | HOUSING | GB | |
||
| 29 | AR133-50 | 1 | WASHER | GB | |
||
| 30 | AR144-30 | 1 | CRANKSHAFT | GB | |
||
| 31 | AR133-33 | 1 | BUSHING | GB | |
||
| 32 | AR133-34 | 1 | YOKE | GB | |
||
| 33 | AR133-41 | 1 | ANVIL | GB | |
||
| 34 | AR133-42 | 1 | SPRING | GB | |
||
| 35 | AR133-43 | 1 | BALL | GB | |
||
| 36 | AR133-44 | 1 | WASHER | GB | |
||
| 37 | AR133-45 | 1 | RING | GB | |
||
| 38 | AR133-31 | 1 | PIN | GB | |
||
| 39 | AR133-39 | 1 | BUTTON | GB | |
||
| 40 | AR133-38 | 1 | SPRING | GB | |
||
| 41 | AR133-39 | 1 | BUTTON | GB | |
||
| 42 | AR133-40 | 1 | PAWL | GB | |
||
| 45 | AR133-37 | 1 | BALL | GB | |
