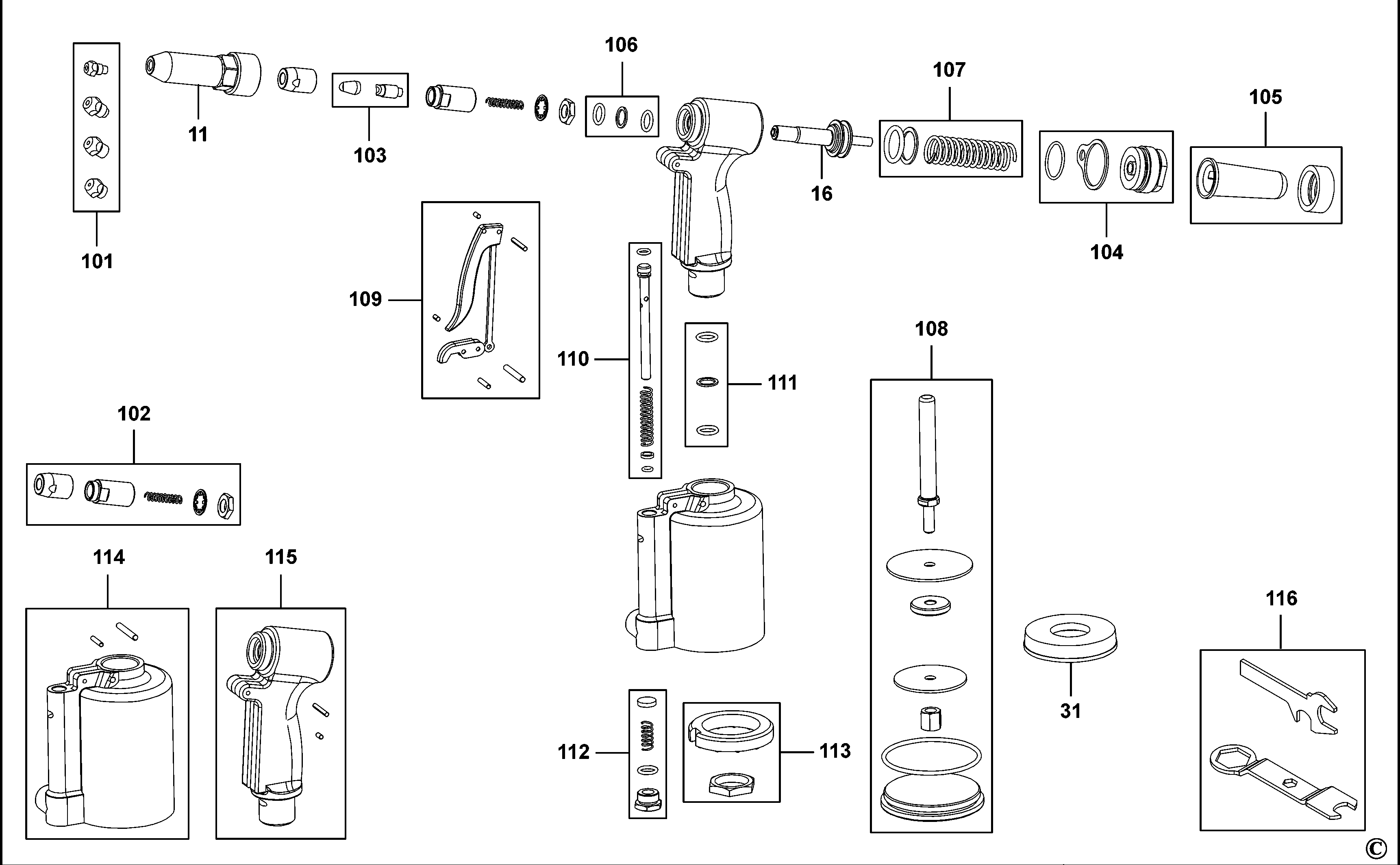

E230901 RIVETER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 828407 | 1 | GEAR SA | H2 | XJ | ||
| 3 | 749209 | 1 | WARNING LABEL | H2 | XJ | ||
| 4 | 325560-00 | 1 | BRAND LABEL | XJ |  |
||
| 8 | 568400-00 | 1 | GRILL | XJ | |
||
| 9 | 6010076-18 | 1 | BASE | FLASK BOTTOM | XJ | ||
| 10 | 379710 | 1 | SUPPORT RH | XJ |  |
||
| 11 | 30H200459 | 1 | NOSE HOUSING | XJ | |
||
| 11 | 559862-00 | 1 | BRUSH SA | XJ | |
||
| 12 | 6010119-16 | 8 | RING | H2 | XJ | |
|
| 13 | 591215-00 | 1 | TRIGGER | XJ | |
||
| 14 | 1003297-00 | 1 | SWITCH | XJ | |||
| 16 | 30Y201082 | 1 | PISTON | XJ | |
||
| 17 | 90626849 | 1 | SPRING | XJ | |
||
| 18 | 6010036-24 | 1 | MOTOR 115V | XJ | |||
| 19 | 6010119-16 | 3 | RING | H2 | XJ | |
|
| 21 | 6010028-25 | 1 | WASHER | XJ | |
||
| 23 | 372367 | 1 | TIP | H2 | XJ | |
|
| 24 | 6010036-19 | 1 | COUPLING SA | DRIVE COUPLER | XJ | ||
| 25 | 6010111-01 | 1 | LID | XJ | |||
| 26 | 5145401-00 | 1 | LED LIGHT | XJ | |
||
| 28 | 95674-00 | 1 | FAN | XJ | |||
| 30 | 560136-00 | 2 | MOTOR SA | XJ | |
||
| 31 | 30Y201083 | 1 | PISTON RING | XJ | |
||
| 31 | 559879-00 | 2 | COVER SA | H2 | XJ | |
|
| 33 | 6010002-27 | 1 | LEADS | INTERNAL WIRING | PARTS NOT DRAWN | XJ | |
| 35 | 6010027-22 | 1 | HOLDER | DISC HOLDER | PARTS NOT DRAWN | XJ | |
| 36 | 6010027-25 | 1 | PCB 115V | PARTS NOT DRAWN | XJ | |
|
| 101 | 30K100009 | 1 | NOSE | XJ | |
||
| 102 | 30K100010 | 1 | JAW | A | XJ | |
|
| 103 | 30K100011 | 1 | JAW | B | XJ | |
|
| 104 | 30K100012 | 1 | COVER SA | XJ | |
||
| 105 | 30K100013 | 1 | COLLECTOR | XJ | |
||
| 106 | 30K100014 | 1 | SEAL | XJ | |
||
| 107 | 30K100015 | 1 | SPRING SA | XJ | |
||
| 108 | 30K100016 | 1 | PISTON KIT | XJ | |
||
| 109 | 30K100017 | 1 | TRIGGER | XJ | |
||
| 110 | 30K100018 | 1 | REGULATOR | XJ | |
||
| 111 | 30K100019 | 1 | SEAL | XJ | |
||
| 112 | 30K100020 | 1 | VALVE KIT | XJ | |
||
| 113 | 30K100021 | 1 | LOCKING DEVICE | XJ | |
||
| 114 | 30K100022 | 1 | TANK | XJ | |
||
| 115 | 30K100023 | 1 | HOUSING HANDLE | XJ | |
||
| 116 | 30K100024 | 1 | WRENCH SPECIAL | XJ | |
