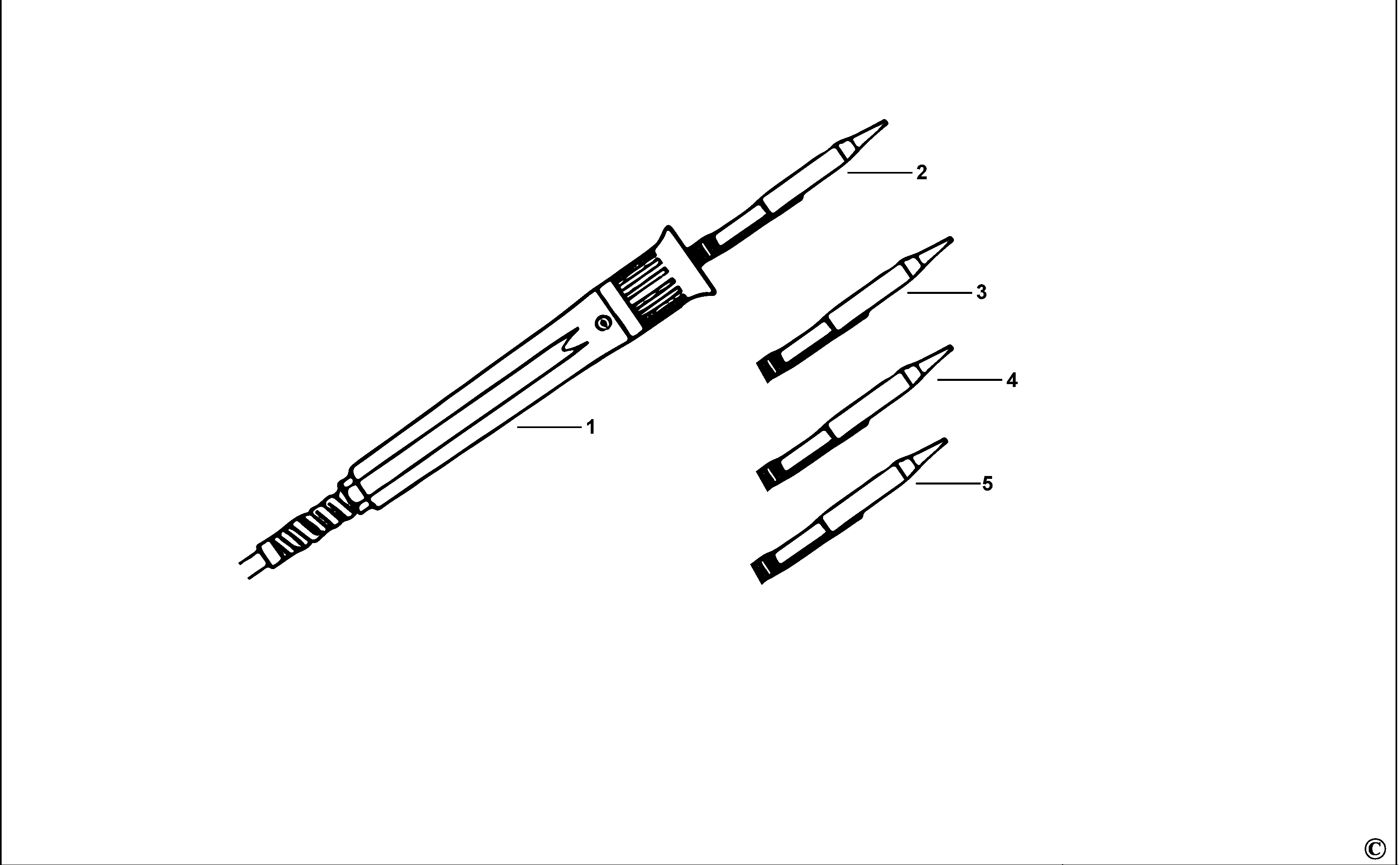

1002.60E SOLDERING IRON Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | XJ | |||
| 2 | 1002.P1 | 1 | TIP | XJ | |||
| 2 | 807490 | 1 | SPINDLE SA | XJ |  |
||
| 3 | 1002.P2 | 1 | TIP | XJ | |||
| 4 | 1002.P3 | 1 | TIP | XJ | |||
| 4 | 372067-04 | 1 | CORDSET | XJ | |
||
| 5 | 1002.P4 | 1 | TIP | XJ | |||
| 5 | 6010085-08 | 1 | MOTOR 230V | XJ | |||
| 6 | 585290-04 | 1 | FIELD 115V | XJ | |
||
| 7 | 372308-02 | 2 | CHARGER 12V QW | XJ | |
||
| 8 | 5145811-00 | 1 | CHARGER (EURO) | 4.8V - NiCad | XJ | ||
| 11 | 809545 | 1 | SPANNER | XJ | |
||
| 12 | 6010391-90 | 1 | HANDLE SA | XJ | |
||
| 13 | 371054-08 | 1 | LABEL | XJ | |
||
| 14 | AW262-47 | 1 | SHANK | XJ | |
||
| 15 | 372192 | 1 | LEAD RED | XJ | |
||
| 16 | 372193 | 1 | LEAD BLACK | XJ | |
||
| 17 | 372198-01 | 1 | CLAMSHELL | XJ | |
||
| 18 | 853528 | 1 | CUP | XJ | |
||
| 19 | A25226 | 1 | STAND | XJ |  |
||
| 20 | 90542787 | 1 | HOOK | XJ | |
||
| 21 | 372163 | 1 | GEARCASE SA | XJ | |
||
| 23 | 279389-00 | 1 | CORD CLAMP | XJ | |
||
| 24 | 586840-01 | 1 | RATING PLATE | XJ | |
||
| 25 | N876221 | 1 | CHASSIS SA | XJ | |||
| 26 | 372320 | 1 | CABLE SA | XJ | |
||
| 27 | 371054-09 | 1 | LABEL | XJ | |
||
| 28 | 370084-08 | 1 | FIELD | XJ | |
||
| 29 | 809611 | 1 | INSERT | XJ | |
||
| 30 | 372318 | 1 | KEY | XJ | |
||
| 32 | 568298-00 | 1 | SLEEVE | XJ | |
||
| 33 | 487352-01 | 1 | COVER SA | XJ | |||
| 34 | 577797-00 | 1 | WASHER | XJ | |||
| 35 | 323159-49 | 1 | PULLEY REPAIR KIT | XJ | |
||
| 36 | 322939-01 | 1 | SPINDLE | XJ | |
||
| 37 | 567553-00 | 1 | BRAND LABEL | XJ | |
||
| 38 | 90538466 | 5 | SLEEVE BEARING | XJ | |
||
| 41 | 248397-02 | 2 | COVER BRUSH | XJ | |
||
| 42 | 6010029-70 | 5 | WASHER | XJ | |
||
| 44 | 401126-00 | 2 | RATING PLATE | XJ | |
||
| 45 | 90626849 | 1 | SPRING | XJ | |
||
| 46 | 1004774-91 | 4 | SPRING | XJ | |
||
| 47 | 568368-00 | 1 | WASHER | XJ | |
||
| 48 | 279371-00 | 1 | PINION | XJ | |
||
| 51 | 596320-00 | 1 | BASEPLATE | XJ | |
||
| 52 | 6010074-32 | 2 | SHAFT SA | SHAFT & BLADE OF GRA | XJ | |
|
| 53 | 6010085-05 | 2 | SWITCH | XJ | |||
| 54 | 823484 | 1 | NAMEPLATE | XJ | |
||
| 55 | 372131 | 1 | CLAMP SA | XJ | |||
| 56 | 559868-00 | 1 | MOTOR SA | XJ | |
||
| 57 | 642025-00 | 1 | WARNING LABEL | XJ | |
||
| 58 | 323395-29 | 1 | SPRING | XJ | |
||
| 59 | 1004772-40 | 1 | HEAD SA | XJ | |
||
| 60 | 401127-00 | 2 | KNOB | XJ | |
||
| 63 | 248019-02 | 1 | GEARBOX SA | Orange | XJ | |
|
| 71 | 499742-00 | 2 | COVER | XJ | |
||
| 80 | 152577-06 | 1 | PINION | XJ | |||
| 81 | 1004512-37 | 1 | REGULATOR | XJ | |
||
| 846 | 321948 | 1 | LEVER | XJ | |
