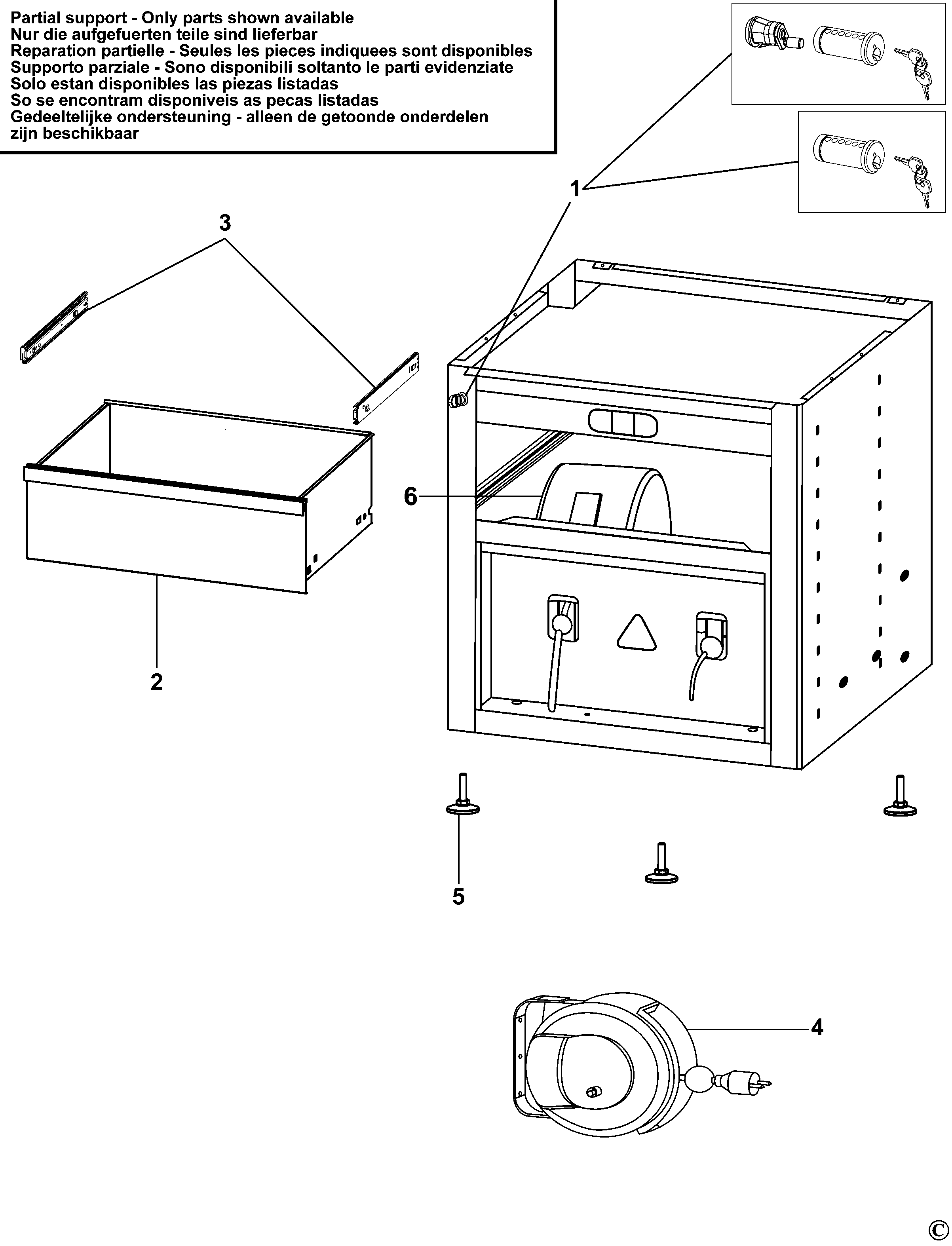

JLS2-MBSEN BASE CABINET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | JLS2.02 | 1 | LOCK | XJ |  |
||
| 1 | 247815-00 | 1 | CUTTER BLOCK SA | XJ | |
||
| 2 | JLS2-MBSEN.01 | 1 | DRAWER | XJ |  |
||
| 2 | 806722-03 | 1 | CLAMSHELL | XJ | |
||
| 3 | JLS2-MBS.10 | 1 | SLIDE | XJ | |
||
| 4 | JLS2-MBSEN.02 | 1 | CABLE & PLUG | XJ | |
||
| 5 | JLS2.03 | 1 | FEET | SET OF 4 | XJ | |
|
| 5 | 328783-00 | 1 | RATING PLATE | XJ | |
||
| 6 | JLS2-MBSEN.03 | 1 | PLUG | XJ | |
||
| 6 | 6010036-26 | 1 | CAPACITOR | METTALISED CAPACITOR | XJ | ||
| 7 | N028878 | 2 | KIT SA | XJ | |
||
| 8 | 90535569-02 | 1 | DOOR | BLUE | XJ | ||
| 10 | 1003297-00 | 1 | SWITCH | XJ | |||
| 11 | 323753-00 | 1 | WASHER | XJ | |
||
| 12 | 6010036-32 | 1 | SCREW | XJ | |||
| 13 | N663174 | 2 | GEARBOX | XJ | |
||
| 14 | 6010036-30 | 1 | SCREW | XJ | |||
| 16 | 6010020-23 | 3 | HOUSING | HOUSING BODY | XJ | ||
| 17 | 368251 | 2 | CLAMSHELL | XJ | |
||
| 18 | 6010071-08 | 1 | MOTOR 230V | H1D | XJ | ||
| 19 | 808698-06 | 1 | BOWL | XJ | |
||
| 20 | 371074-01 | 1 | CHARGER | XJ | |
||
| 21 | 6010071-16 | 1 | TOP | TOP CABINET | H1D | XJ | |
| 22 | 372571-01 | 1 | CLAMP SA | XJ | |||
| 23 | 809049 | 1 | LABEL | XJ | |
||
| 24 | 373244-04 | 1 | MOTOR SA | H1 | XJ | |
|
| 24 | 752879 | 1 | FOOT | H1D | XJ | |
|
| 25 | 1006028-00 | 4 | SPRING TORSION | XJ | |
||
| 26 | 372520 | 1 | GUARD | XJ | |
||
| 29 | 805925-00 | 1 | SLIDER | XJ | |
||
| 30 | 372563 | 1 | SWITCH & LEAD SA | XJ | |
||
| 31 | 372429-04 | 1 | RATING PLATE | XJ | |
||
| 32 | 368245 | 1 | SPRING | H1D | XJ | |
|
| 32 | 373244-04 | 1 | MOTOR SA | H1C | XJ | |
|
| 33 | 140164502 | 1 | LEAD 130MM YELLOW | XJ | |
||
| 34 | 90531369 | 5 | CHUCK KEYLESS | XJ | |||
| 37 | 589467-00 | 2 | SIDE HANDLE | XJ | |
||
| 39 | 752920 | 1 | NUT | XJ | |
||
| 44 | 806167-01 | 1 | MOTOR SA | XJ | |
||
| 45 | 795026 | 2 | LEAD | XJ | |
||
| 46 | 568349-00 | 1 | BEARING | XJ | |
||
| 48 | N082122 | 2 | CHARGER 10.8V (EURO) | DCB100; DCB100-QW - 1.8A | XJ | ||
| 49 | 860077-01 | 2 | WASHER | XJ | |
