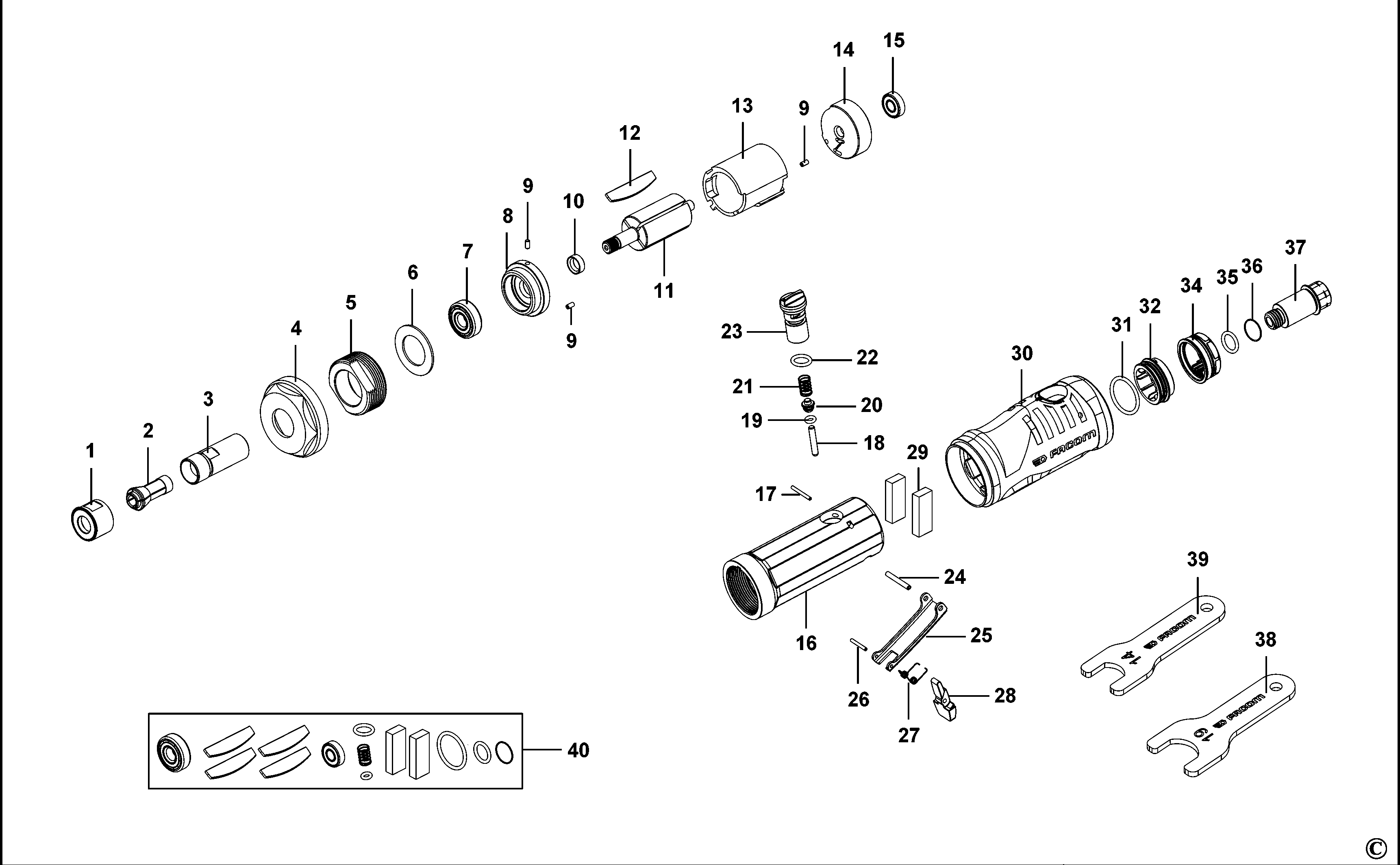

V.DG500F DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N444814 | 1 | COLLET NUT | XJ |  |
||
| 2 | N444782 | 1 | COLLET 6MM | XJ | |
||
| 3 | N444866 | 1 | SPINDLE | XJ | |
||
| 4 | N444867 | 1 | COUPLING | XJ | |
||
| 5 | N444868 | 1 | LOCKING RING | XJ | |
||
| 6 | N444869 | 1 | SPACER | XJ | |
||
| 7 | N444845 | 1 | BEARING,BALL | XJ | |
||
| 8 | N444846 | 1 | END PANEL. FRONT | XJ | |
||
| 9 | N444847 | 3 | SPIROL PIN | XJ | |
||
| 10 | N444848 | 1 | SPACER | XJ | |
||
| 11 | N444849 | 1 | ROTOR | XJ | |
||
| 12 | 1004755-69 | 4 | BLADE SET | XJ | |
||
| 13 | N444851 | 1 | CYLINDER | XJ | |
||
| 14 | N444852 | 1 | END PANEL. REAR | XJ | |
||
| 15 | N444853 | 1 | BEARING,BALL | XJ | |
||
| 16 | N444854 | 1 | HOUSING MOTOR | XJ | |
||
| 17 | N444787 | 1 | SPIROL PIN | XJ | |
||
| 18 | N444783 | 1 | SHAFT | XJ | |
||
| 19 | N444785 | 1 | O RING | XJ | |
||
| 20 | N444786 | 1 | VALVE | XJ | |
||
| 21 | N444784 | 1 | VALVE SPRING | XJ | |
||
| 22 | N444855 | 1 | O RING | XJ | |
||
| 23 | N444856 | 1 | REGULATOR | XJ | |
||
| 24 | N444788 | 1 | SPIROL PIN | XJ | |
||
| 25 | N444857 | 1 | TRIGGER | XJ | |
||
| 26 | N444858 | 1 | SPIROL PIN | XJ | |
||
| 27 | N444789 | 1 | SPRING | XJ | |
||
| 28 | N444790 | 1 | LEVER | XJ | |
||
| 29 | N444859 | 2 | Muffler | XJ | |
||
| 30 | N444864 | 1 | COVER HOUSING | XJ | |
||
| 31 | N444791 | 1 | O RING | XJ | |
||
| 32 | N444792 | 1 | Seat | XJ | |
||
| 34 | N444793 | 1 | TUBE.EXHAUST | XJ | |
||
| 35 | N444860 | 1 | O RING | XJ | |
||
| 36 | N444861 | 1 | O RING | XJ | |
||
| 37 | N463180 | 1 | BUSHING | XJ | |
||
| 38 | N444870 | 1 | SPANNER | XJ | |
||
| 39 | N444871 | 1 | SPANNER | XJ | |
||
| 40 | N444917 | 1 | SERVICE KIT | XJ | |
