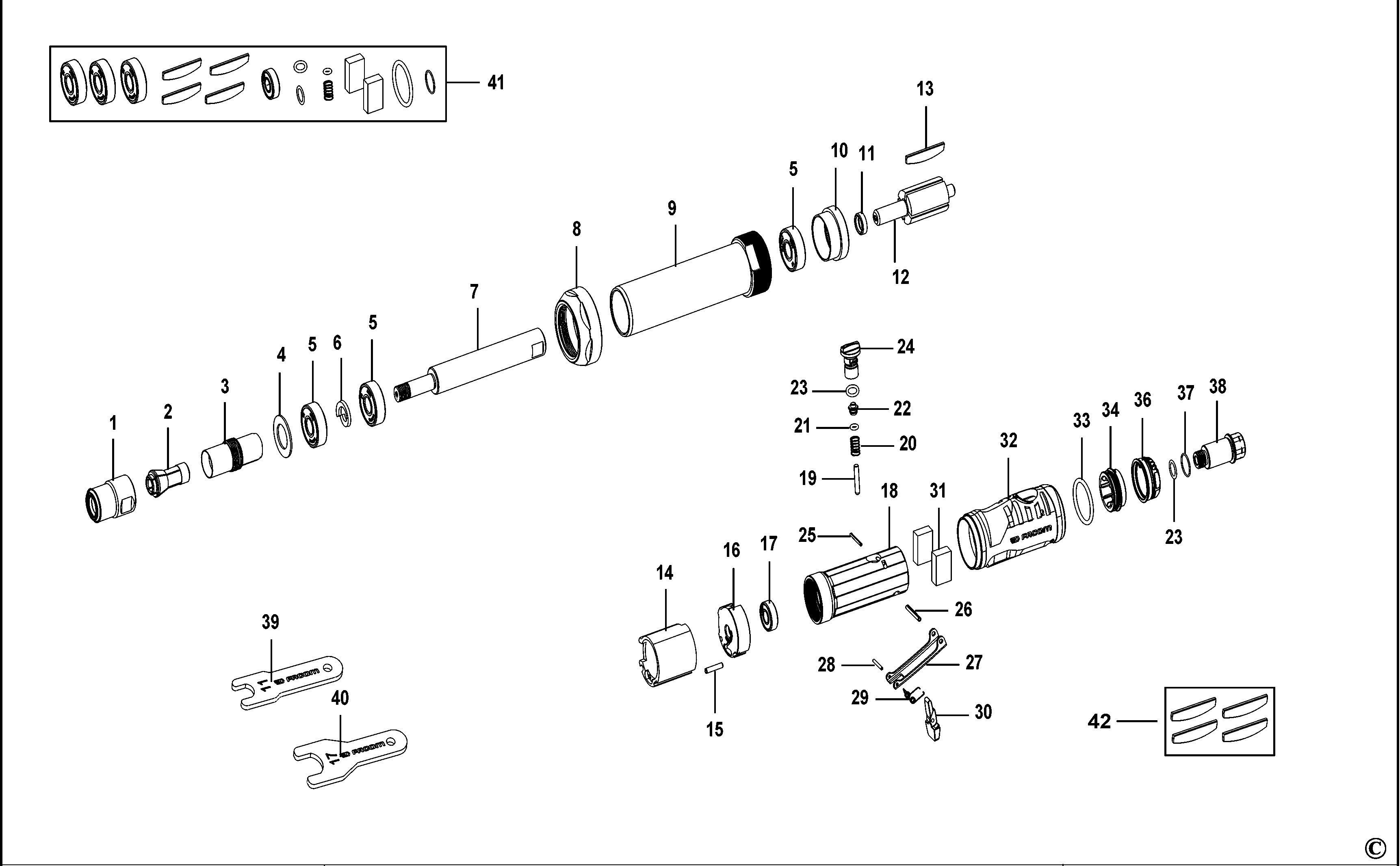

V.DGE300F DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N444813 | 1 | COLLET NUT | XJ |  |
||
| 2 | N444782 | 1 | COLLET 6MM | XJ | |
||
| 3 | N444821 | 1 | SPINDLE | XJ | |
||
| 4 | N444822 | 1 | SPACER | XJ | |
||
| 5 | N444794 | 3 | BEARING,BALL | XJ | |
||
| 6 | N444823 | 1 | WASHER | XJ | |
||
| 7 | N444824 | 1 | SHAFT | XJ | |
||
| 8 | N444825 | 1 | COUPLING | XJ | |
||
| 9 | N444826 | 1 | BAR | XJ | |
||
| 10 | N444795 | 1 | END PANEL. FRONT | XJ | |
||
| 11 | N444796 | 1 | SPACER | XJ | |
||
| 12 | N444797 | 1 | ROTOR | XJ | |
||
| 13 | N444798 | 4 | ROTOR BLADE | XJ | |
||
| 14 | N444799 | 1 | CYLINDER | XJ | |
||
| 15 | N444800 | 1 | SPIROL PIN | XJ | |
||
| 16 | N444801 | 1 | END PANEL. REAR | XJ | |
||
| 17 | N444802 | 1 | BEARING,BALL | XJ |  |
||
| 18 | N444803 | 1 | HOUSING MOTOR | XJ | |
||
| 19 | N444783 | 1 | SHAFT | XJ | |
||
| 20 | N444784 | 1 | VALVE SPRING | XJ | |
||
| 21 | N444785 | 1 | O RING | XJ | |
||
| 22 | N444786 | 1 | VALVE | XJ | |
||
| 23 | N444804 | 2 | O RING | XJ | |
||
| 24 | N444805 | 1 | REGULATOR | XJ | |
||
| 25 | N444787 | 1 | SPIROL PIN | XJ | |
||
| 26 | N444788 | 1 | SPIROL PIN | XJ | |
||
| 27 | N444806 | 1 | TRIGGER | XJ | |
||
| 28 | N444807 | 1 | SPIROL PIN | XJ | |
||
| 29 | N444789 | 1 | SPRING | XJ | |
||
| 30 | N444790 | 1 | LEVER | XJ | |
||
| 31 | N444808 | 2 | Muffler | XJ | |
||
| 32 | N444816 | 1 | COVER HOUSING | XJ | |
||
| 33 | N444791 | 1 | O RING | XJ | |
||
| 34 | N444792 | 1 | Seat | XJ | |
||
| 36 | N444793 | 1 | TUBE.EXHAUST | XJ | |
||
| 37 | N444809 | 1 | O RING | XJ | |
||
| 38 | N463178 | 1 | BUSHING | XJ | |
||
| 39 | N444811 | 1 | SPANNER | XJ | |
||
| 40 | N444812 | 1 | SPANNER | XJ | |
||
| 41 | N444898 | 1 | SERVICE KIT | XJ | |
||
