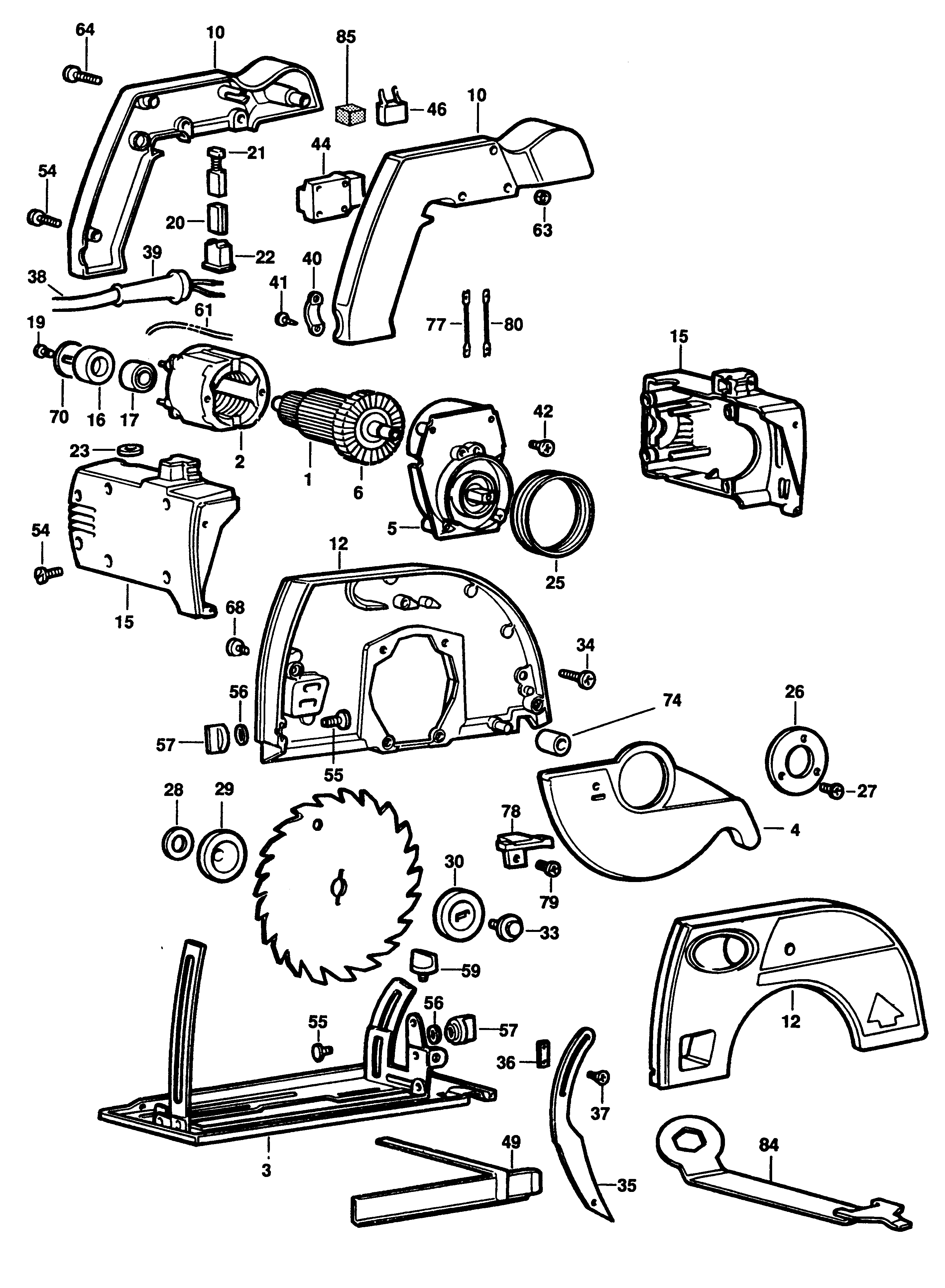

BD846C CIRC. SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 368877-02 | 1 | ARMATURE SA | GB |  |
||
| 2 | 373008-03 | 1 | FIELD 230V | GB | |
||
| 3 | 325137-00 | 1 | SHOE SA | GB | |
||
| 4 | 323032 | 1 | GUARD | GB | |
||
| 5 | 879348 | 1 | GEAR SA | GB | |
||
| 6 | 918909 | 1 | FAN | GB | |
||
| 10 | 572283-00 | 1 | HANDLE | Jade Green | GB | |
|
| 12 | 325130-00 | 1 | GUARD SA | GB | |
||
| 15 | 322841-00 | 1 | CLAMSHELL | GB | |
||
| 16 | 870052 | 1 | SLEEVE | GB |  |
||
| 17 | 330003-31 | 1 | BEARING | GB | |
||
| 19 | 911276 | 1 | SCREW | GB | |
||
| 20 | 321337 | 2 | BRUSH HOLDER | GB | |
||
| 21 | 321338 | 2 | BRUSH SA 230V | GB | |
||
| 22 | 321328 | 2 | INSERT | GB | |
||
| 23 | 321345 | 2 | BRUSH CAP | GB | |
||
| 25 | 914816 | 1 | SPRING | GB | |
||
| 26 | 914632 | 1 | COVERPLATE | GB | |||
| 27 | 911246 | 3 | SCREW | GB | |
||
| 28 | 910623 | 1 | WASHER | GB | |
||
| 29 | 918191 | 1 | FLANGE | GB | |
||
| 30 | 872696 | 1 | FLANGE | GB | |
||
| 33 | 911760 | 1 | SCREW | GB | |
||
| 34 | 324006-02 | 4 | SCREW | GB | |
||
| 35 | 918486 | 1 | RIVING KNIFE | GB | |
||
| 36 | 874649 | 1 | INSERT | GB | |
||
| 37 | 322491 | 2 | SCREW | GB | |
||
| 38 | 330060-45 | 1 | CORDSET (M/PLUG) | GB | |
||
| 39 | 916969 | 1 | PROTECTOR | GB | |
||
| 40 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 41 | 894748 | 2 | O RING | GB | |
||
| 42 | 324006-00 | 3 | SCREW | GB | |
||
| 44 | 322001 | 1 | SWITCH | Lock-Off | GB | |
|
| 46 | 807285-01 | 1 | CAPACITOR | GB | |
||
| 49 | 879420-01 | 1 | FENCE | GB | |
||
| 54 | 911325 | 9 | SCREW | GB | |
||
| 55 | 911353 | 2 | SCREW | GB | |
||
| 56 | 330016-07 | 2 | WASHER | GB | |
||
| 57 | 322078 | 2 | NUT WING | GB | |
||
| 59 | 322320 | 1 | KNOB | GB | |
||
| 61 | 321370 | 2 | CHOKE | GB | |
||
| 63 | 322319 | 2 | NUT | GB | |
||
| 64 | 322318 | 2 | SCREW | GB | |
||
| 68 | 372748-05 | 1 | SCREW | GB | |
||
| 70 | 870405 | 1 | WASHER | GB | |
||
| 74 | 918366 | 1 | RUBBER | GB | |
||
| 77 | 879476 | 1 | LEAD 360MM | GB | |
||
| 78 | 322462 | 1 | LATCH | GB | |
||
| 79 | 323253 | 1 | SCREW | GB | |
||
| 80 | 879604 | 1 | LEAD 250MM | GB | |
||
| 84 | 913155 | 1 | SPANNER RING | GB | |
||
| 85 | 918296 | 2 | BLOCK | GB | |
