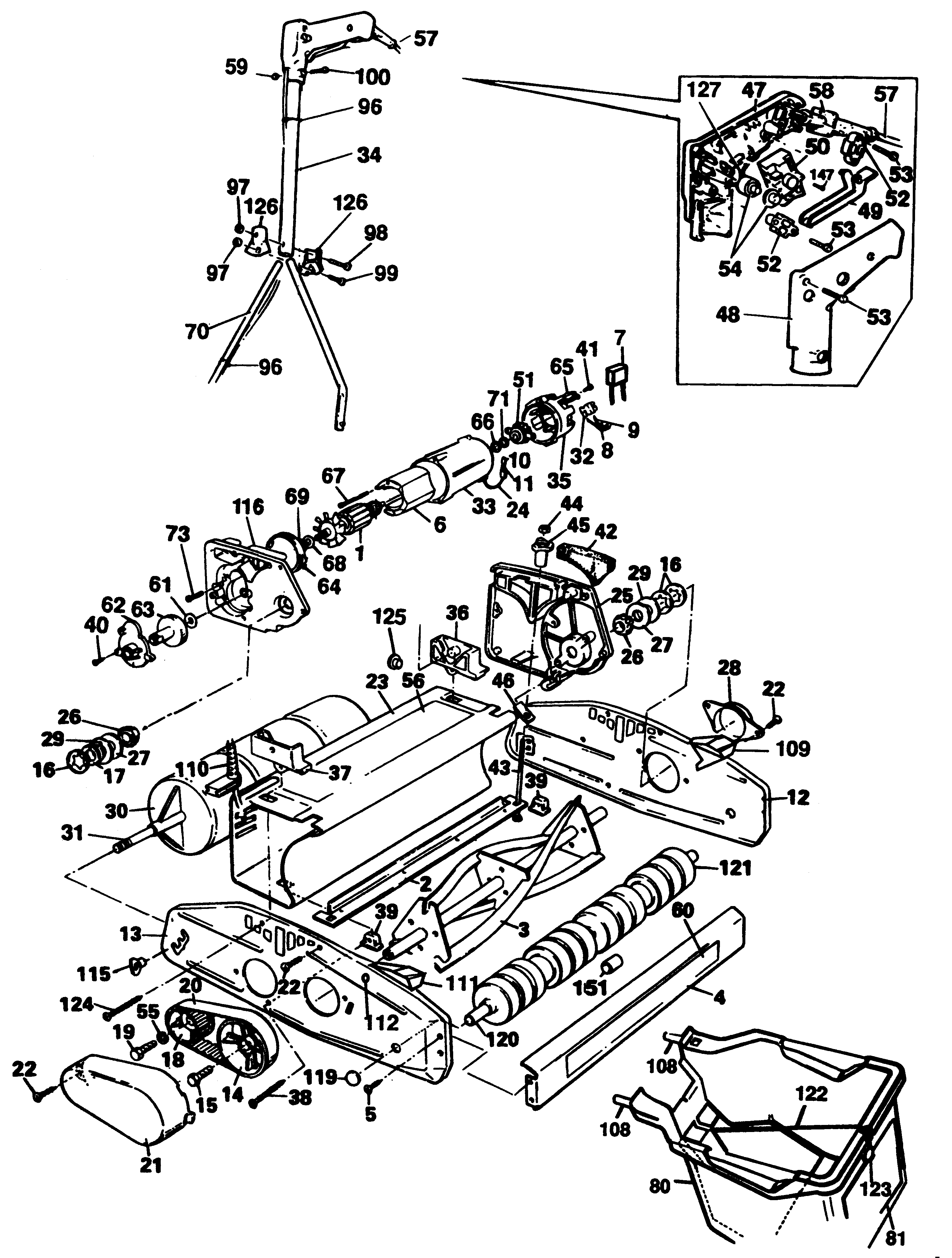

GB200 CYLINDER MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 847956-32 | 1 | SHEARPLATE SA | XJ |  |
||
| 3 | 894725 | 1 | CYLINDER | XJ | |
||
| 5 | 894748 | 4 | O RING | XJ | |
||
| 6 | 811653-49 | 1 | FIELD | XJ | |
||
| 7 | 807285-07 | 1 | CAPACITOR | XJ | |
||
| 8 | 811501 | 1 | LEAD | XJ | |
||
| 9 | 811503 | 1 | LEAD | XJ | |
||
| 10 | 372523 | 2 | BRUSH | XJ | |
||
| 11 | 847709 | 2 | SPRING | XJ |  |
||
| 12 | 844504-30 | 1 | FRAME LH | XJ | |
||
| 14 | 846939 | 1 | PULLEY | XJ | |
||
| 15 | 824606 | 1 | SCREW | XJ | |
||
| 16 | 896057 | 3 | RETAINER | XJ | |
||
| 17 | 896381 | 1 | WASHER THACKERY | XJ | |
||
| 18 | 898897 | 1 | PULLEY | XJ | |
||
| 19 | 897941 | 1 | SCREW | XJ | |
||
| 20 | 848485 | 1 | BELT | XJ | |
||
| 21 | 848467 | 1 | COVER BELT | XJ | |
||
| 22 | 894748 | 6 | O RING | XJ | |
||
| 24 | 820626 | 2 | CHOKE LEAD | XJ | |
||
| 25 | 792271 | 1 | CASTING LH | XJ | |
||
| 26 | 847655 | 2 | BEARING | XJ | |
||
| 27 | 849215 | 2 | WASHER FIBRE | XJ | |
||
| 28 | 846037 | 1 | COVER | XJ | |
||
| 29 | 892528 | 2 | WASHER | XJ | |
||
| 30 | 748393 | 1 | ROLLER | XJ | |
||
| 31 | 822437 | 1 | AXLE REAR | XJ | |
||
| 32 | 859580 | 1 | BLOCK | XJ | |
||
| 33 | 881004 | 1 | HOUSING | XJ | |
||
| 34 | 848707-32 | 1 | TUBE UPPER | XJ | |
||
| 35 | 884044 | 1 | COVER | XJ | |
||
| 36 | 805756 | 1 | BLOCK RH | XJ | |
||
| 37 | 805755 | 1 | BLOCK LH | XJ | |
||
| 38 | 826041 | 2 | SCREW | XJ | |
||
| 39 | 896315 | 2 | RETAINER | XJ | |
||
| 40 | 899021 | 3 | SCREW | XJ | |
||
| 41 | 890088 | 2 | SCREW | XJ | |
||
| 42 | 847957 | 2 | FILTER | XJ | |
||
| 43 | 847966 | 2 | SCREW | XJ | |
||
| 44 | 849904 | 2 | NUT | XJ | |
||
| 45 | 845080 | 2 | NUT | XJ | |
||
| 46 | 846304 | 2 | SPRING | XJ | |
||
| 47 | 829371 | 1 | GRIP LH | XJ | |
||
| 49 | 746063 | 1 | LEVER | XJ | |
||
| 50 | 795413 | 1 | SWITCH | XJ | |
||
| 51 | 892052 | 1 | HOUSING BEARING | XJ | |
||
| 52 | 994808 | 2 | CABLE CLAMP | XJ | |
||
| 53 | 849256 | 7 | SCREW | XJ | |
||
| 54 | 846541 | 1 | CUT OUT | XJ | |
||
| 55 | 845314 | 1 | WASHER LOCK | XJ | |
||
| 57 | 330048-53 | 1 | CORDSET (SPLASH) | XJ | |
||
| 58 | 890184 | 1 | CORD PROTECTOR | XJ | |
||
| 59 | 892153 | 1 | NUT | XJ | |
||
| 60 | 827608 | 1 | LABEL | XJ | |||
| 61 | 892529 | 1 | WASHER THRUST | XJ | |
||
| 62 | 894721 | 1 | COVER GEARCASE | XJ | |
||
| 63 | 894722 | 1 | GEAR | XJ | |
||
| 64 | 895238 | 1 | BAFFLE | XJ | |
||
| 65 | 579093-01 | 3 | CABLE TIE | XJ | |
||
| 65 | 579093-01 | 3 | CABLE TIE | XJ | |
||
| 66 | 995036 | 1 | WASHER SPRING | XJ | |
||
| 67 | 995183 | 2 | SCREW | XJ | |
||
| 68 | 996589 | 1 | WASHER | XJ | |
||
| 69 | 996605 | 1 | WASHER | XJ | |
||
| 70 | 848710-32 | 2 | TUBE LOWER | XJ | |
||
| 71 | 996930 | 1 | WASHER | XJ | |
||
| 72 | 844840 | 1 | COUPLER (SPLASH) | XJ | |
||
| 73 | 999271 | 3 | SCREW | XJ | |
||
| 74 | 892072 | 1 | CABLE | XJ | |
||
| 80 | 811924 | 1 | BOX | XJ | |
||
| 81 | 793641 | 1 | LABEL | XJ | |
||
| 96 | 812151 | 2 | TIE | XJ | |
||
| 97 | 893263 | 2 | NUT | XJ | |
||
| 98 | 844941 | 2 | SCREW | XJ | |
||
| 99 | 898996 | 1 | SCREW | XJ | |
||
| 100 | 898526 | 2 | SCREW | XJ | |
||
| 108 | 844505 | 2 | TUBE SUPPORT | XJ | |
||
| 109 | 844502 | 1 | BRACKET LH | XJ | |
||
| 111 | 844501 | 1 | BRACKET RH | XJ | |
||
| 112 | 846268 | 2 | RIVET | XJ | |
||
| 115 | 796490 | 2 | NUT WING | XJ | |
||
| 116 | 845925 | 1 | CASTING RH | XJ | |
||
| 119 | 886985 | 2 | RETAINER | XJ | |
||
| 120 | 814766 | 1 | AXLE FRONT | XJ | |
||
| 121 | 812830 | 2 | ROLLER | XJ | |
||
| 122 | 746060 | 1 | CORD | XJ | |
||
| 123 | 746058 | 1 | CORD PULL | XJ | |
||
| 124 | 826040 | 2 | SCREW | XJ | |
||
| 125 | 746054 | 2 | BUTTON | XJ | |
||
| 126 | 844838 | 2 | CLAMP | XJ | |
||
| 127 | 894789 | 1 | CONNECTING WIRE | XJ | |
||
| 147 | 990735 | 2 | SCREW | XJ | |
