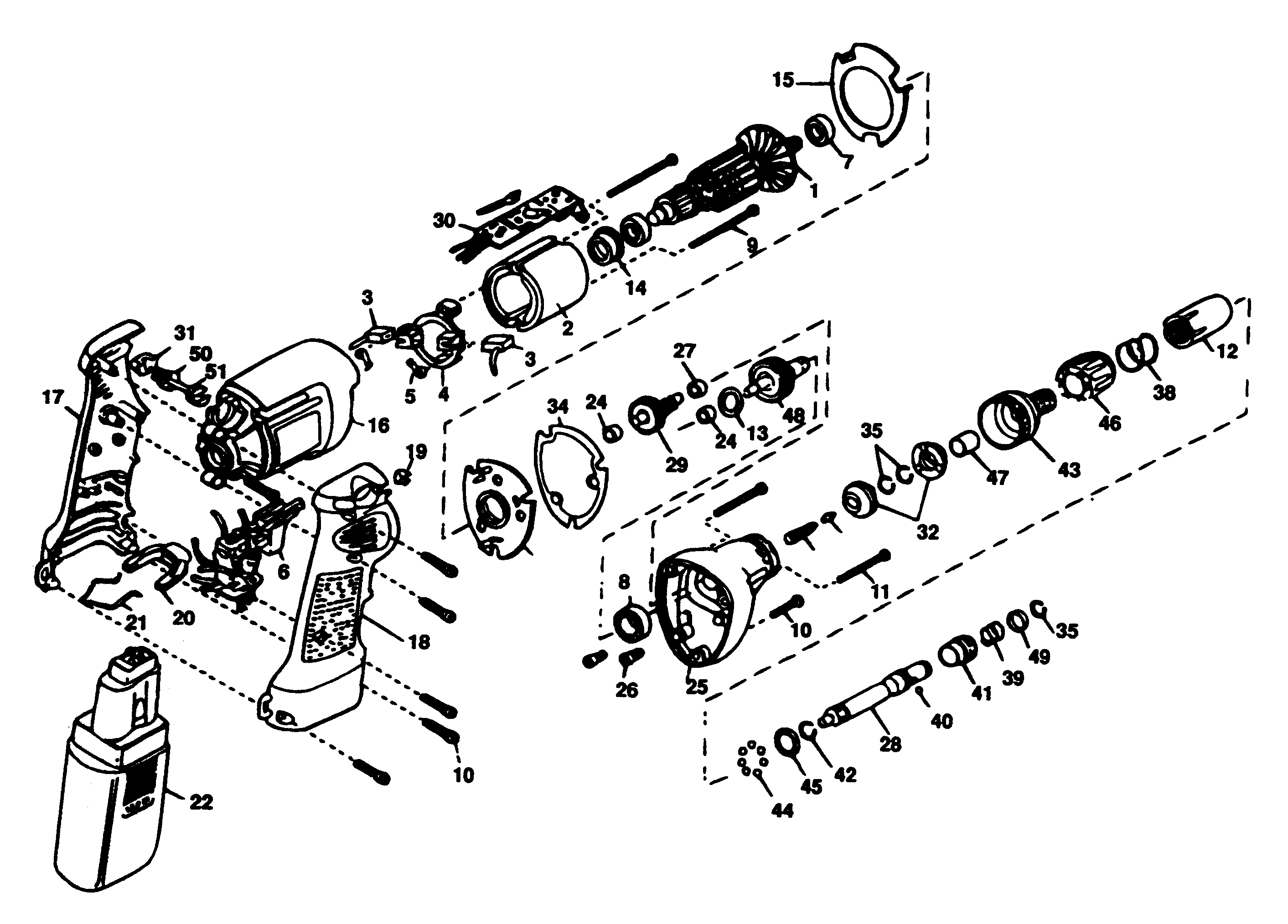

2691 SCREWDRIVER Type 100 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 429906-00 | 1 | MOTOR SA | XJ |  |
||
| 3 | 144689-01 | 2 | BRUSH | XJ | |
||
| 4 | 382178-01 | 1 | BRUSH FRAME | XJ | |
||
| 5 | 445860-00 | 2 | BRUSH SPRING | XJ |  |
||
| 7 | 605040-06 | 2 | BEARING,BALL | XJ | |
||
| 8 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XJ | |
|
| 9 | 448269-00 | 2 | SCREW | XJ | |
||
| 10 | 330019-13 | 7 | SCREW | M4X19 T20 | XJ | |
|
| 11 | 330019-16 | 2 | SCREW | XJ | |
||
| 12 | 450555-00 | 1 | STOP | XJ | |
||
| 13 | 96498-00 | 1 | WASHER | XJ | |
||
| 14 | 445217-02 | 1 | SLEEVE | XJ | |
||
| 15 | 447866-00 | 1 | BAFFLE FAN | XJ | |
||
| 16 | 144682-01 | 1 | CASE | XJ | |
||
| 17 | 149080-00 | 1 | HANDLE | XJ | |
||
| 18 | 149081-00 | 1 | HANDLE | XJ | |
||
| 19 | 144694-00 | 1 | CLIP | XJ | |
||
| 20 | 144500-00 | 1 | LATCH | XJ | |
||
| 21 | 144501-00 | 1 | SPRING | XJ | |
||
| 23 | 448658-00 | 1 | GEARCASE COVER | XJ | |
||
| 24 | 093128-00 | 2 | BEARING NEEDLE | XJ | |
||
| 26 | 052819-00 | 1 | SCREW | XJ | |
||
| 27 | 93129-00 | 1 | BEARING NEEDLE | XJ | |||
| 28 | 450360-00 | 1 | SPINDLE | XJ | |
||
| 29 | 448667-00 | 1 | GEAR & PINION | XJ | |
||
| 30 | 147601-01 | 1 | ELECTRONIC | XJ | |
||
| 32 | 96558-04 | 2 | CLUTCH | XJ | |
||
| 34 | 450966-00 | 1 | GASKET | XJ | |
||
| 35 | 089210-00 | 3 | RETAINER | XJ | |
||
| 36 | 021287-00 | 1 | GUIDE | XJ | |
||
| 37 | 86211-00 | 1 | SPRING | XJ | |||
| 38 | 87928-00 | 1 | SPRING | XJ | |||
| 39 | 086134-00 | 1 | SPRING | XJ | |
||
| 40 | 99047-01 | 1 | BALL | XJ | |||
| 41 | 387451-00 | 1 | RETAINER | XJ | |
||
| 42 | 21360-00 | 1 | RETAINER | XJ | |
||
| 43 | 93105-01 | 1 | HOUSING | XJ | |||
| 44 | 000903-00 | 8 | BALL | XJ | |
||
| 45 | 090596-00 | 2 | SEAL | XJ | |
||
| 46 | 090639-02 | 1 | COLLAR | XJ | |
||
| 47 | 90626-00 | 1 | BEARING | XJ | |
||
| 48 | 448842-00 | 1 | GEAR & PINION | XJ | |
||
| 49 | 090866-00 | 1 | WASHER | XJ | |
||
| 52 | 445964-00 | 1 | TERMINAL | XJ | |
||
| 53 | 147202-00 | 1 | PIN | XJ | |
