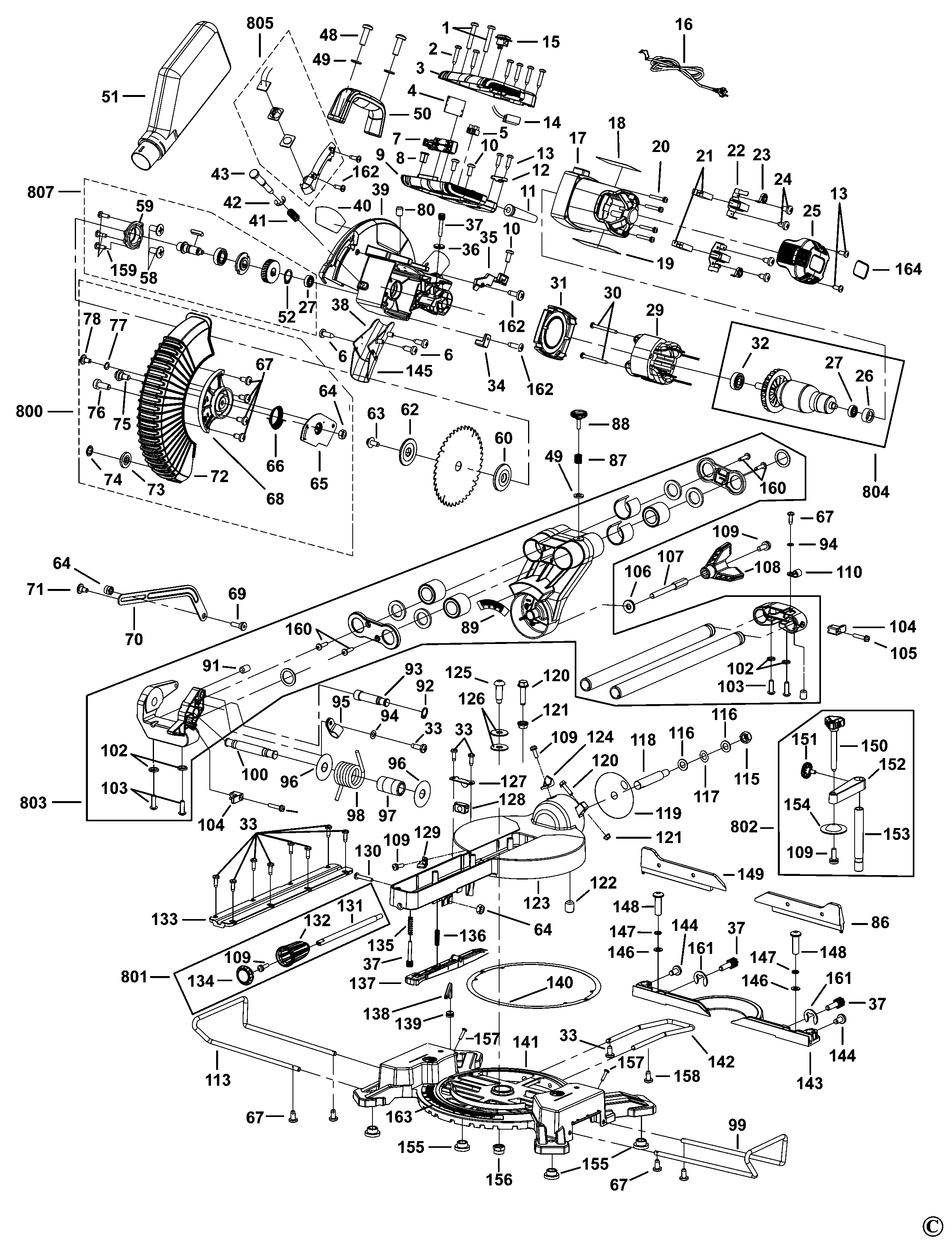

BES710 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004750-25 | 2 | SCREW | GB |  |
||
| 2 | 1004750-26 | 6 | SCREW | GB | |
||
| 3 | 1004763-86 | 1 | HANDLE UPPER | GB | |
||
| 4 | 1004763-87 | 1 | PCB | GB | |
||
| 5 | 1004763-88 | 1 | CONNECTOR | GB | |
||
| 6 | 1004763-89 | 3 | SCREW | GB | |
||
| 7 | 1004763-90 | 1 | SWITCH | GB | |
||
| 8 | 1004763-91 | 1 | PROTECTOR | DUST | GB | |
|
| 9 | 1004763-92 | 1 | HANDLE | GB | |
||
| 10 | 1004763-93 | 3 | SCREW | M4.8X15 | GB | |
|
| 11 | 1004763-94 | 1 | CORD PROTECTOR | GB | |
||
| 12 | 1004763-95 | 1 | CLAMP | GB | |
||
| 13 | 1004763-96 | 4 | SCREW | ST4.2X13 | GB | |
|
| 14 | 1004763-97 | 1 | CAPACITOR | GB | |
||
| 15 | 1004763-98 | 1 | SWITCH | LED | GB | |
|
| 16 | 1004775-53 | 1 | CORDSET | GB | |
||
| 17 | 1004764-01 | 1 | FIELDCASE | GB | |
||
| 18 | N632703 | 1 | RATING PLATE | GB | |
||
| 19 | N689094 | 1 | BRAND LABEL | GB | |
||
| 20 | 1004764-04 | 4 | SCREW | M5X40 | GB | |
|
| 21 | 1004764-05 | 1 | BRUSH PAIR | GB | |
||
| 22 | 1004764-06 | 2 | BRUSH HOLDER | GB | |
||
| 23 | 1004764-07 | 2 | SPRING | GB | |
||
| 24 | 1004764-08 | 4 | SCREW | ST4X9.5 | GB | |
|
| 25 | 1004764-09 | 1 | END CAP | GB | |
||
| 26 | 1004764-10 | 1 | COVER BEARING | GB | |
||
| 27 | 1004764-11 | 1 | BEARING | GB | |
||
| 29 | 1004764-13 | 1 | FIELD SA | GB | |
||
| 30 | 1004764-14 | 2 | SCREW | ST4.8X55 | GB | |
|
| 31 | 1004764-15 | 1 | BAFFLE | GB | |
||
| 32 | 1004764-16 | 1 | BEARING | GB | |
||
| 33 | 1004764-17 | 11 | SCREW | GB | |
||
| 34 | 1004764-18 | 1 | BUFFER | PAD | GB | |
|
| 35 | 1004764-19 | 1 | COVER | GB | |
||
| 36 | 1004764-20 | 1 | NUT | M6 | GB |  |
|
| 37 | 1004764-21 | 1 | ADJUSTER DEPTH | M6X33 | GB | |
|
| 38 | 1004764-22 | 1 | DUST PORT | GB | |
||
| 39 | 1004764-23 | 1 | GUARD UPPER | GB | |
||
| 40 | N689095 | 1 | BRAND LABEL | GB | |
||
| 41 | 1004764-25 | 1 | SPRING | GB | |
||
| 42 | 1004764-26 | 1 | CIRCLIP | GB | |
||
| 43 | 1004764-27 | 1 | LOCK PIN | GB | |
||
| 48 | 1004764-33 | 2 | SCREW | M6X20 | GB | |
|
| 49 | 1004764-34 | 3 | WASHER | GB | |
||
| 50 | 1004764-35 | 1 | HANDLE | GB | |
||
| 51 | 1004764-36 | 1 | DUSTBAG | GB | |
||
| 52 | 1004764-38 | 1 | CIRCLIP | GB | |
||
| 58 | 1004764-44 | 2 | SCREW | GB | |
||
| 59 | 1004764-64 | 1 | SCREW | M6X16 | GB | |
|
| 60 | 1004764-47 | 1 | INNER FLANGE | GB | |
||
| 62 | 1004764-49 | 1 | OUTER FLANGE | GB | |
||
| 63 | 1004764-50 | 1 | SCREW | M8X16 | GB | |
|
| 64 | 1004764-52 | 3 | LOCK NUT | M6 | GB | |
|
| 65 | 1004764-53 | 1 | SUPPORT PLATE | GB | |
||
| 66 | 1004764-54 | 1 | SPRING | GB | |
||
| 67 | 1004764-55 | 1 | SCREW | M4X8 | GB | |
|
| 68 | 1004764-56 | 1 | BRACKET | GB | |
||
| 69 | 1004764-64 | 1 | SCREW | M6X16 | GB | |
|
| 70 | 1004764-65 | 1 | LINK | GB | |
||
| 71 | 1004764-66 | 1 | SCREW | GB | |
||
| 72 | 1004764-57 | 1 | GUARD LOWER | GB | |
||
| 73 | 1004764-58 | 1 | WHEEL | GB | |
||
| 74 | 1004764-59 | 1 | WASHER | TOOTH | GB | |
|
| 75 | 1004764-60 | 1 | SCREW | M6X12.5 | GB | |
|
| 76 | 1004764-61 | 1 | SCREW | GB | |
||
| 77 | 1004764-62 | 1 | WASHER | GB | |
||
| 78 | 1004764-63 | 1 | SCREW | GB | |
||
| 80 | 1004764-68 | 1 | SCREW | M6X10 | GB | |
|
| 86 | 1004764-74 | 1 | FENCE RH | GB | |
||
| 87 | 1004764-75 | 1 | SPRING | GB | |
||
| 88 | 1004764-76 | 1 | LOCK KNOB | GB | |
||
| 89 | N691131 | 1 | BEVEL SCALE | GB | |
||
| 91 | 1004764-79 | 1 | SCREW | M5X10 | GB | |
|
| 92 | 1004764-80 | 1 | CIRCLIP | GB | |
||
| 93 | 1004764-81 | 1 | LOCK PIN | GB | |
||
| 94 | 1004764-82 | 1 | WASHER | GB | |
||
| 95 | 1004764-83 | 1 | CLAMP | GB | |
||
| 96 | 1004764-84 | 2 | WASHER | GB | |
||
| 97 | 1004764-85 | 1 | SLEEVE | GB | |
||
| 98 | 1004764-86 | 1 | SPRING TORSION | GB | |
||
| 99 | 1004764-87 | 1 | RAIL RH | GB | |
||
| 100 | 1004764-88 | 1 | SHAFT | GB | |
||
| 102 | 1004764-90 | 4 | SPRING | GB | |
||
| 103 | 1004764-91 | 1 | SCREW | M6X25 | GB | |
|
| 104 | 1004764-92 | 2 | CORD | WRAP | GB | |
|
| 105 | 1004764-93 | 1 | SCREW | M4X20 | GB | |
|
| 106 | 1004764-94 | 1 | WASHER | GB | |
||
| 107 | 1004764-95 | 1 | BOLT | GB | |
||
| 108 | 1004764-96 | 1 | LOCK HANDLE | BEVEL | GB | |
|
| 109 | 1004764-97 | 6 | SCREW | M4X12 | GB | |
|
| 110 | 1004764-98 | 1 | CLIP CABLE | GB | |
||
| 113 | 1004765-02 | 1 | RAIL LH | GB | |
||
| 115 | 1004765-04 | 1 | NUT | M12 | GB | |
|
| 116 | 1004765-05 | 2 | WASHER | GB | |
||
| 117 | 1004765-06 | 1 | WASHER | WAVE | GB | |
|
| 118 | 1004765-07 | 1 | SHAFT | GB | |
||
| 119 | 1004765-08 | 1 | SUPPORT PLATE | GB | |
||
| 120 | 1004765-09 | 1 | BOLT | M6X25 | GB | |
|
| 121 | 1004765-10 | 1 | NUT | M6 | GB | |
|
| 122 | 1004765-11 | 1 | NUT | M8X10 | GB | |
|
| 123 | 1004765-12 | 1 | TABLE TURN | GB | |
||
| 124 | 1004765-13 | 1 | INDICATOR | BEVEL | GB | |
|
| 125 | 1004765-14 | 1 | BOLT | M8X25 | GB | |
|
| 126 | 1004765-15 | 2 | WASHER | GB | |
||
| 127 | 1004765-16 | 1 | PLATE LOCK | GB | |
||
| 128 | 1004765-17 | 1 | BIT | GB | |
||
| 129 | 1004765-18 | 1 | INDICATOR | MITER | GB | |
|
| 130 | 1004765-19 | 1 | SCREW | M6X30 | GB | |
|
| 131 | 1004765-21 | 1 | ROD | GB | |
||
| 132 | 1004765-22 | 1 | HANDLE | GB | |
||
| 133 | 1004765-24 | 1 | PLATE | GB | |
||
| 134 | 1004765-25 | 1 | COVER | GB | |
||
| 135 | 1004765-26 | 1 | SPRING | GB | |
||
| 136 | 1004765-27 | 1 | SPRING | GB | |
||
| 137 | 1004765-28 | 1 | LEVER | GB | |
||
| 138 | 1004765-29 | 1 | KEY | GB | |
||
| 139 | 1004765-30 | 1 | HOLDER | GB | |
||
| 140 | 1004765-31 | 1 | GUIDE | PLATE | GB | |
|
| 141 | 1004765-32 | 1 | BASE | GB | |
||
| 142 | 1004765-33 | 1 | SUPPORT | GB | |
||
| 143 | 1004765-34 | 1 | FENCE | GB | |
||
| 144 | 1004765-35 | 2 | SCREW | M6X12 | GB | |
|
| 145 | 1004765-36 | 1 | CHUTE | DUST | GB | |
|
| 146 | 1004765-37 | 4 | WASHER | GB | |
||
| 147 | 1004765-38 | 1 | WASHER | GB | |
||
| 148 | 1004765-39 | 4 | SCREW | M8X20 | GB | |
|
| 149 | 1004765-40 | 1 | FENCE LH | GB | |
||
| 150 | 1004765-42 | 1 | KNOB | GB | |
||
| 151 | 1004765-43 | 1 | KNOB | GB | |
||
| 152 | 1004765-44 | 1 | ARM LINK | GB | |
||
| 153 | 1004765-45 | 1 | POLE PIECE | GB | |
||
| 154 | 1004765-46 | 1 | PLATE | CLAMP | GB | |
|
| 155 | 1004765-47 | 4 | FEET | GB | |
||
| 156 | 1004765-48 | 1 | LOCK NUT | GB | |
||
| 157 | 1004765-49 | 2 | SCREW | M6X25 | GB | |
|
| 158 | 1004765-50 | 1 | SCREW | M5X6 | GB | |
|
| 159 | 1004765-51 | 3 | SCREW | M4X12 | GB | |
|
| 160 | 1004765-52 | 4 | SCREW | GB | |
||
| 161 | 1004765-53 | 1 | CIRCLIP | GB | |
||
| 162 | 1004765-54 | 1 | SCREW | M4X12 | GB | |
|
| 163 | N691130 | 1 | SCALE | MITER | GB | |
|
| 164 | N689096 | 1 | BRAND LABEL | GB | |
||
| 800 | 1004764-51 | 1 | LOWER GUARD SA | GB | |
||
| 801 | 1004765-20 | 1 | LOCK | MITER LOCK | GB | |
|
| 802 | 1004765-41 | 1 | CLAMP SA | GB | |
||
| 803 | 1004765-57 | 1 | RAIL SA | GB | |
||
| 804 | 1004765-58 | 1 | ARMATURE SA | GB | |
||
| 805 | 1004764-28 | 1 | LED KIT | GB | |
||
| 807 | 1004764-37 | 1 | OUTPUT SHAFT SA | GB | |
