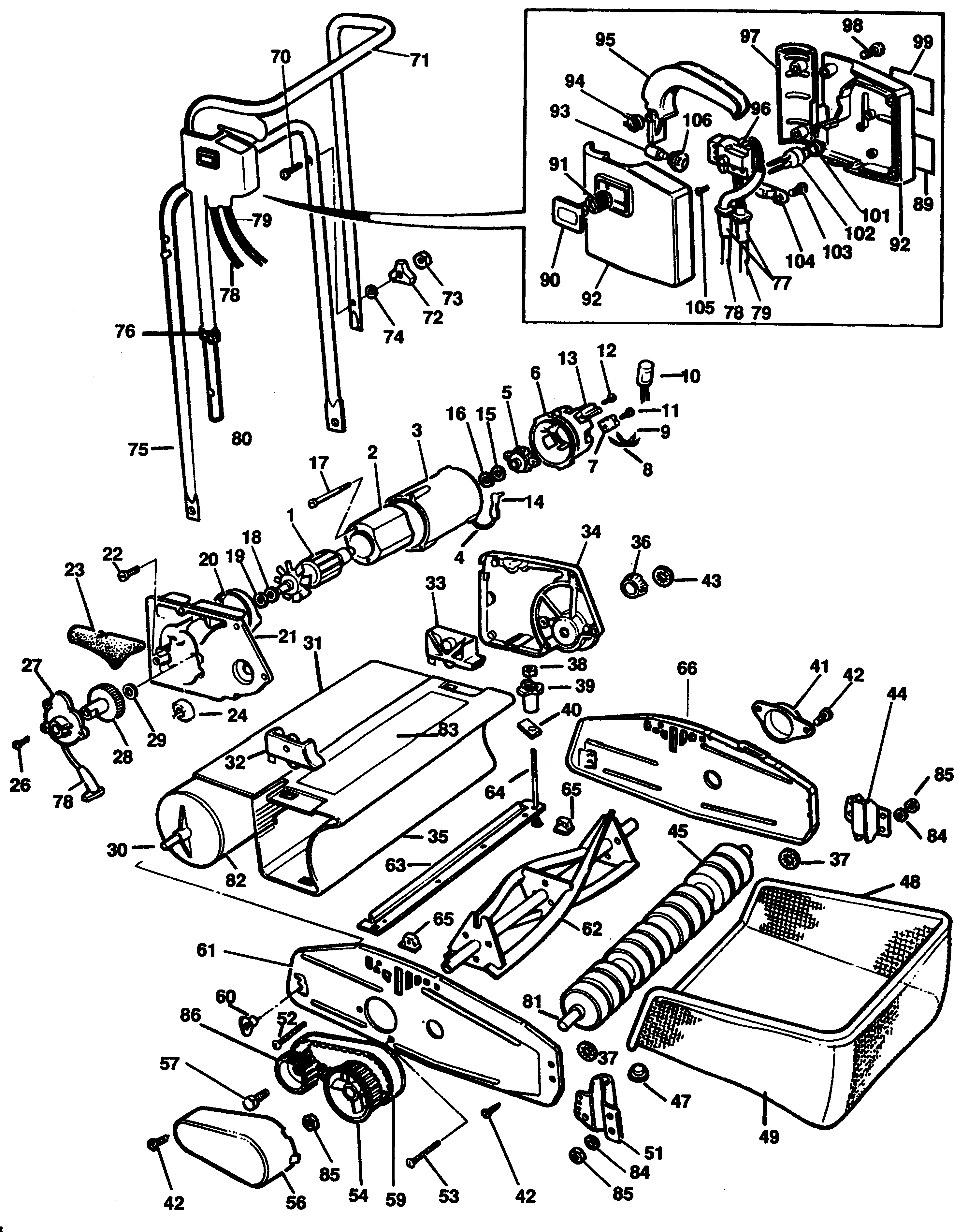

GB300C CYLINDER MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 811653-49 | 1 | FIELD | XJ |  |
||
| 3 | 881004 | 1 | HOUSING | XJ | |
||
| 4 | 820626 | 2 | CHOKE LEAD | XJ | |
||
| 5 | 892052 | 1 | HOUSING BEARING | XJ | |
||
| 6 | 884044 | 1 | COVER | XJ | |
||
| 7 | 859580 | 1 | BLOCK | XJ | |
||
| 8 | 811501 | 1 | LEAD | XJ | |
||
| 9 | 811503 | 1 | LEAD | XJ | |
||
| 10 | 807285-07 | 1 | CAPACITOR | XJ | |
||
| 11 | 892072 | 1 | CABLE | XJ | |
||
| 12 | 890088 | 2 | SCREW | XJ | |
||
| 13 | 579093-01 | 3 | CABLE TIE | XJ |  |
||
| 13 | 579093-01 | 3 | CABLE TIE | XJ | |
||
| 14 | 372523 | 2 | BRUSH | XJ | |
||
| 15 | 996930 | 1 | WASHER | XJ | |
||
| 16 | 995036 | 1 | WASHER SPRING | XJ | |
||
| 17 | 995183 | 2 | SCREW | XJ | |
||
| 18 | 996589 | 1 | WASHER | XJ | |
||
| 19 | 996605 | 1 | WASHER | XJ | |
||
| 20 | 895238 | 1 | BAFFLE | XJ | |
||
| 21 | 794971 | 1 | CASTING RH | XJ | |
||
| 22 | 999271 | 3 | SCREW | XJ | |
||
| 23 | 847957 | 1 | FILTER | XJ | |
||
| 24 | 330003-17 | 1 | BEARING | XJ | |
||
| 26 | 899021 | 3 | SCREW | XJ | |
||
| 27 | 894721 | 1 | COVER GEARCASE | XJ | |
||
| 28 | 894722 | 1 | GEAR | XJ | |
||
| 29 | 892529 | 1 | WASHER THRUST | XJ | |
||
| 31 | 794961 | 1 | COVER | XJ | |||
| 32 | 822218 | 1 | BLOCK RH | XJ | |
||
| 33 | 822435 | 1 | BLOCK LH | XJ | |
||
| 34 | 792271 | 1 | CASTING LH | XJ | |
||
| 35 | 794956-01 | 1 | CHASSIS | XJ | |||
| 36 | 847655 | 1 | BEARING | XJ | |
||
| 37 | 896057 | 2 | RETAINER | XJ | |
||
| 38 | 849904 | 2 | NUT | XJ | |
||
| 39 | 845080 | 2 | NUT | XJ | |
||
| 40 | 846304 | 2 | SPRING | XJ | |
||
| 41 | 846037 | 1 | COVER | XJ | |
||
| 42 | 894748 | 22 | O RING | XJ | |
||
| 43 | 795369 | 1 | RETAINER | XJ | |
||
| 44 | 794058 | 1 | BRACKET LH | XJ | |||
| 45 | 843960 | 2 | ROLLER | XJ | |
||
| 47 | 795831 | 2 | INSERT | XJ | |
||
| 48 | 794979 | 1 | FRAME | XJ | |
||
| 49 | 794959 | 1 | GRASSBAG | XJ | |
||
| 51 | 794059 | 1 | BRACKET RH | XJ | |
||
| 52 | 826040 | 2 | SCREW | XJ | |
||
| 53 | 826041 | 2 | SCREW | XJ | |
||
| 54 | 794973 | 1 | PULLEY | XJ | |
||
| 56 | 848467 | 1 | COVER BELT | XJ | |
||
| 57 | 897941 | 1 | SCREW | XJ | |
||
| 59 | 848485 | 1 | BELT | XJ | |
||
| 60 | 796490 | 2 | NUT WING | XJ | |
||
| 62 | 794967 | 1 | CYLINDER | XJ | |
||
| 63 | 794964-32 | 1 | SHEARPLATE SA | XJ | |
||
| 64 | 847966 | 2 | SCREW | XJ | |
||
| 65 | 896315 | 2 | RETAINER | XJ | |
||
| 70 | 830664 | 2 | BOLT | XJ | |
||
| 71 | 795622 | 1 | HANDLE UPPER | XJ | |
||
| 72 | 830657 | 2 | NUT WING | XJ | |
||
| 73 | 830762 | 2 | NUT | XJ | |
||
| 74 | 830832 | 2 | WASHER M6 | XJ | |
||
| 75 | 794954 | 1 | HANDLE | XJ | |||
| 76 | 915859 | 2 | CLIP CABLE | XJ | |||
| 77 | 770235 | 2 | PROTECTOR | XJ | |
||
| 78 | 745854 | 1 | CABLE SA | XJ | |
||
| 79 | 330048-53 | 1 | CORDSET (SPLASH) | XJ | |
||
| 80 | 844840 | 1 | COUPLER (SPLASH) | XJ | |
||
| 81 | 794963 | 1 | AXLE FRONT | XJ | |
||
| 83 | 795374 | 1 | BRAND LABEL | XJ | |||
| 85 | 723588 | 3 | NUT | XJ | |
||
| 86 | 898897 | 1 | PULLEY | XJ | |
||
| 89 | 839718 | 1 | LABEL CUT-OUT | XJ | |||
| 90 | 746031 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 91 | 827137 | 1 | SPRING | XJ | |
||
| 92 | 793716 | 1 | SWITCHBOX | XJ | |
||
| 93 | 827132 | 1 | ACTUATOR | XJ | |
||
| 94 | 827135 | 1 | SPRING | XJ | |
||
| 95 | 746030 | 1 | LEVER | XJ | |
||
| 96 | 794164 | 1 | SWITCH | XJ | |
||
| 97 | 827131 | 1 | PLATE | XJ | |
||
| 98 | 849256 | 6 | SCREW | XJ | |
||
| 101 | 1000502 | 1 | COVER | XJ | |
||
| 102 | 846459 | 1 | CUT OUT | XJ | |
||
| 103 | 810269 | 3 | SCREW | XJ | |
||
| 104 | 827140 | 1 | CABLE CLAMP | XJ | |
||
| 105 | 990735 | 2 | SCREW | XJ | |
||
| 106 | 851901 | 1 | SEAL | XJ | |
