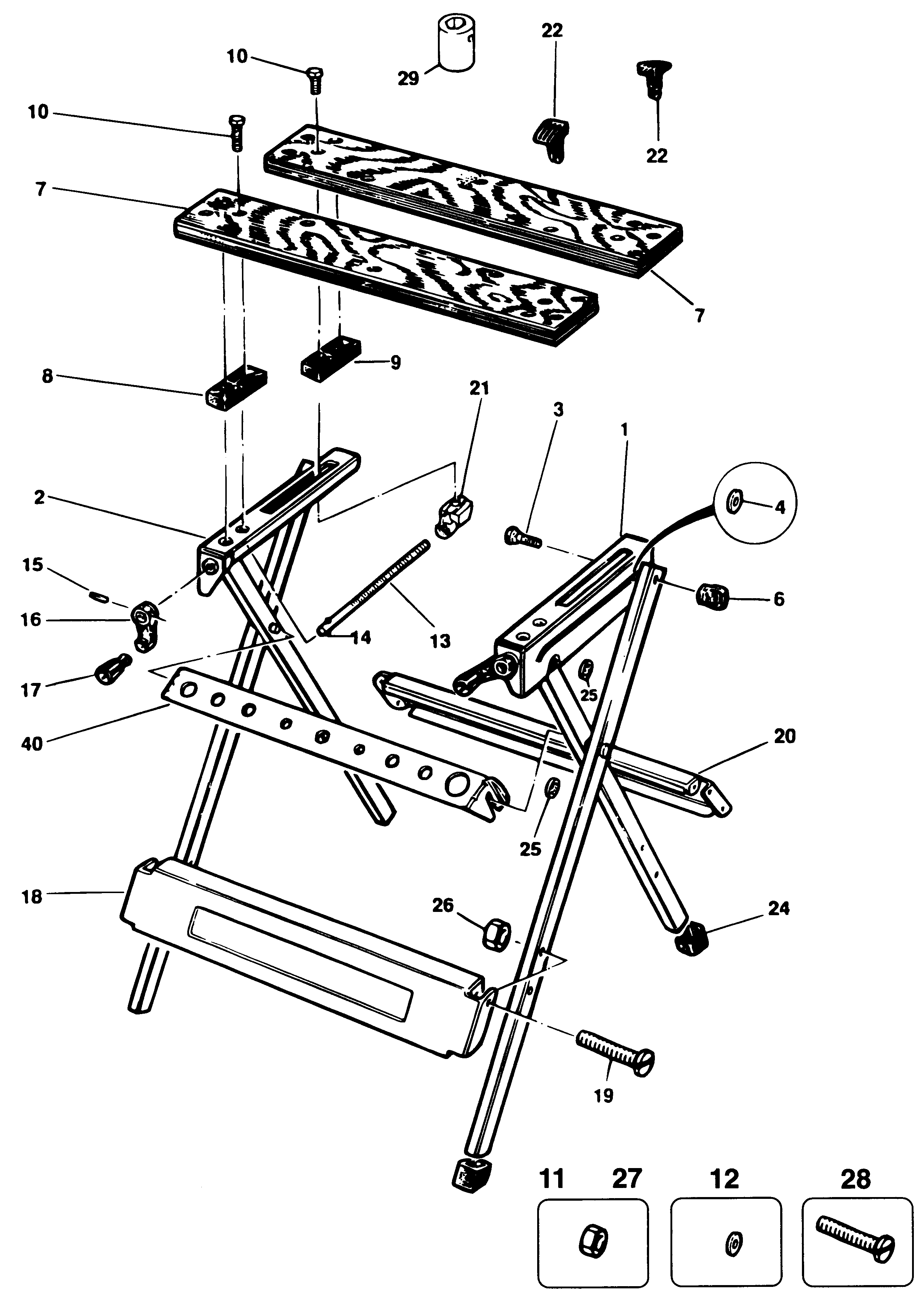

WM300 WORKMATE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 742042 | 2 | SCREW | TYPE Y1 (SLOVENIA) | XJ |  |
|
| 3 | 742042 | 2 | SCREW | TYPE E01 (EIRE) | XJ | |
|
| 3 | 742042 | 2 | SCREW | TYPE H2 (GB) | XJ | |
|
| 4 | 723829 | 2 | SPACER | XJ |  |
||
| 6 | 796490-00 | 2 | NUT WING | XJ | |
||
| 7 | 823978 | 2 | VICE JAW | SINGLE | TYPE Y1 (SLOVENIA) | XJ | |
| 7 | 823978 | 2 | VICE JAW | SINGLE | TYPE H2 (GB) | XJ | |
| 8 | 820262 | 2 | BLOCK FRONT | TYPE Y1 (SLOVENIA) | XJ | |
|
| 8 | 820262 | 2 | BLOCK FRONT | TYPE H2 (GB) | XJ | |
|
| 9 | 820261 | 2 | BLOCK | TYPE Y1 (SLOVENIA) | XJ | |
|
| 9 | 820261 | 2 | BLOCK | TYPE H2 (GB) | XJ | |
|
| 10 | 723593 | 4 | BOLT | M8 X 38 13AF | TYPE Y1 (SLOVENIA) | XJ | |
| 10 | 723593 | 4 | BOLT | M8 X 38 13AF | TYPE H2 (GB) | XJ | |
| 10 | 860085-19 | 2 | SCREW | TYPE E01 (EIRE) | XJ | |
|
| 11 | 723627 | 2 | LOCK NUT | TYPE E01 (EIRE) | XJ | |
|
| 12 | 723589 | 2 | WASHER | TYPE E01 (EIRE) | XJ | |
|
| 13 | 807539 | 2 | VICE SCREW SA | XJ | |
||
| 14 | 723567 | 2 | PIN | XJ | |
||
| 15 | 723566 | 2 | PIN | XJ | |
||
| 16 | 723541 | 2 | ARM | XJ | |
||
| 17 | 820728 | 2 | KNOB | XJ | |
||
| 18 | 723805 | 1 | BOARD | XJ | |
||
| 19 | 821827 | 8 | SCREW | XJ | |
||
| 20 | 723806 | 1 | BOARD | XJ | |
||
| 21 | 820263 | 2 | NUT | TYPE Y1 (SLOVENIA) | XJ | |
|
| 21 | 820263 | 2 | NUT | TYPE H2 (GB) | XJ | |
|
| 22 | 820834 | 4 | GRIP | XJ | |
||
| 24 | 723820 | 4 | FOOT | XJ | |
||
| 25 | 723653 | 4 | RETAINER | XJ | |
||
| 26 | 725125 | 8 | NUT | TYPE Y1 (SLOVENIA) | XJ | |
|
| 26 | 930243 | 8 | NUT | TYPE E01 (EIRE) | XJ | |
|
| 26 | 930243 | 8 | NUT | TYPE H2 (GB) | XJ | |
|
| 27 | 723588 | 2 | NUT | TYPE E01 (EIRE) | XJ | |
|
| 28 | 723593 | 4 | BOLT | M8 X 38 13AF | TYPE E01 (EIRE) | XJ | |
| 29 | 723742 | 1 | SOCKET | XJ | |
||
| 40 | 723836 | 1 | SUPPORT | UPTO DC 97-18 | XJ | |
