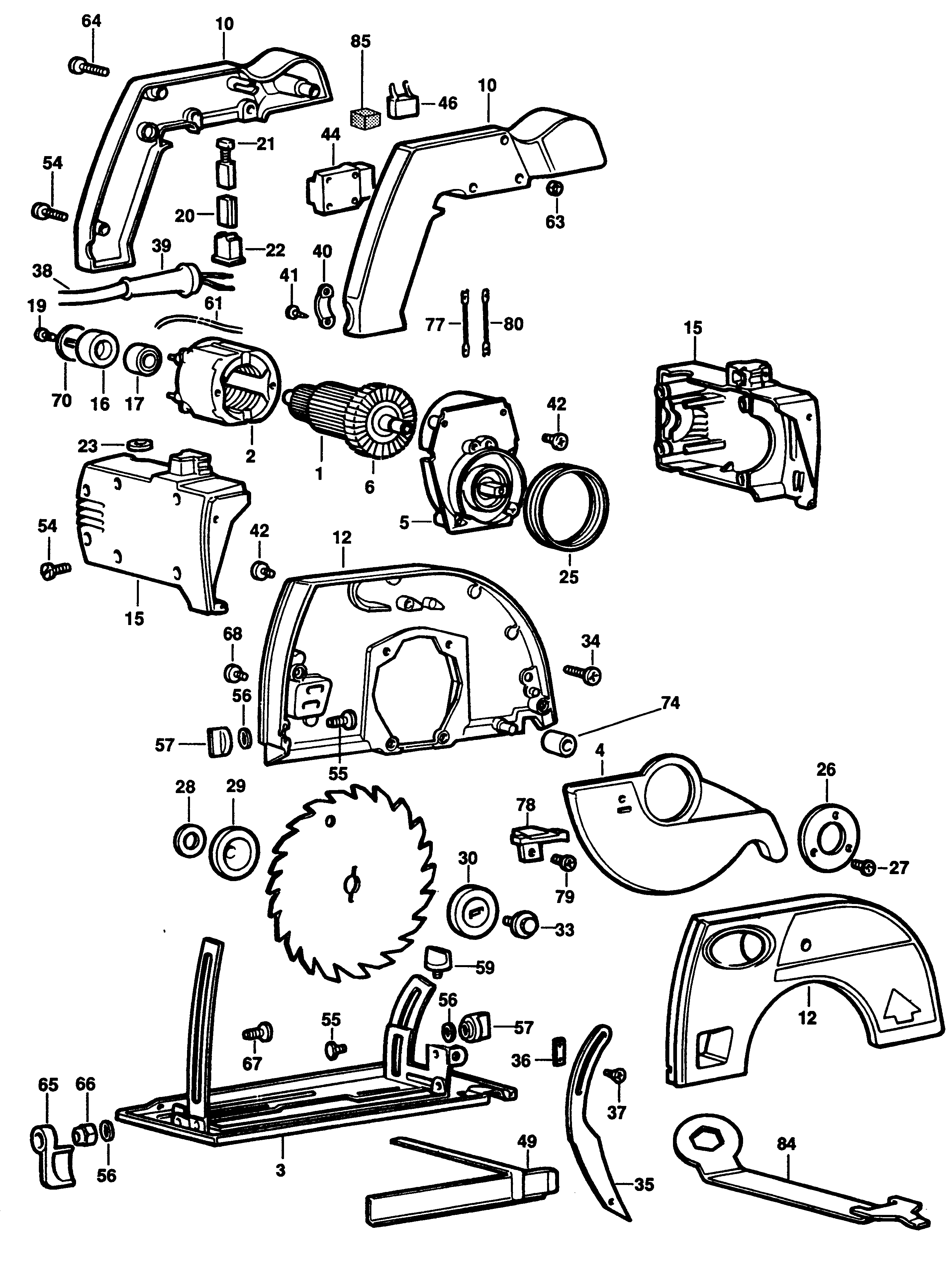

BD855 CIRC. SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 368877-02 | 1 | ARMATURE SA | GB |  |
||
| 1 | 429882-09 | 1 | FIELD | GB | |||
| 2 | 373008-03 | 1 | FIELD 230V | GB | |
||
| 2 | 429882-09 | 1 | FIELD | GB | |||
| 3 | 376786-01 | 1 | SHOE SA | GB | |
||
| 4 | 325071-00 | 1 | GUARD | GB | |
||
| 4 | 624548-00SV | 2 | CONTROL MODULE | GB | |||
| 5 | 879348 | 1 | GEAR SA | GB | |
||
| 5 | N055724 | 1 | LEAD BLACK | Black, 18GA | GB |  |
|
| 6 | 918909 | 1 | FAN | GB | |
||
| 7 | 152274-25SV | 1 | SWITCH SA | GB | |
||
| 9 | 605040-06 | 2 | BEARING,BALL | GB | |
||
| 10 | 323056 | 1 | COVER SA | GB | |
||
| 11 | 626403-00 | 1 | ARM | GB | |||
| 12 | 325131-00 | 1 | GUARD SA | GB | |
||
| 12 | 616340-00 | 1 | SHOE | GB | |||
| 13 | 144689-01 | 1 | BRUSH | GB | |
||
| 14 | 383083-04 | 1 | CLAMSHELL | GB | |||
| 15 | 322841-00 | 1 | CLAMSHELL | GB | |
||
| 15 | 388828-00SV | 5 | SPINDLE LOCK | GB | |||
| 16 | 870052 | 1 | SLEEVE | GB | |
||
| 16 | 176834-00 | 1 | LEAD BLUE | GB | |||
| 17 | 330003-31 | 1 | BEARING | GB | |
||
| 17 | 624195-01 | 1 | BRACKET | GB | |
||
| 18 | 90569695 | 1 | SPRING | GB | |
||
| 19 | 911276 | 1 | SCREW | GB | |
||
| 19 | 398071-02 | 1 | BELT COVER | GB | |||
| 20 | 321337 | 2 | BRUSH HOLDER | GB | |
||
| 20 | 145319-04SV | 1 | SHOE ASSY | GB | |||
| 21 | 321338 | 2 | BRUSH SA 230V | GB | |
||
| 21 | 629591-00SV | 1 | SHOE ASSEMBLY | GB | |||
| 22 | 321328 | 2 | INSERT | GB | |
||
| 22 | 575580-06 | 1 | HOUSING LOWER | Green | GB | |
|
| 23 | 321345 | 2 | BRUSH CAP | GB | |
||
| 23 | N425372 | 1 | FIELD CASE | GB | |||
| 24 | 396992-01 | 2 | KNOB | GB | |
||
| 25 | 914816 | 1 | SPRING | GB | |
||
| 26 | 914632 | 1 | COVERPLATE | GB | |||
| 27 | 911246 | 3 | SCREW | GB | |
||
| 28 | 910623 | 1 | WASHER | GB | |
||
| 29 | 911627 | 1 | FLANGE | GB | |
||
| 30 | 911795 | 1 | FLANGE | GB | |
||
| 30 | 147727-06 | 1 | HANDLE & COVER | GB | |
||
| 31 | N541864 | 4 | FAN | GB | |
||
| 32 | 144798-06 | 1 | FIELD | GB | |||
| 33 | 911760 | 1 | SCREW | GB | |
||
| 34 | 324006-02 | 4 | SCREW | GB | |
||
| 34 | 656400-00 | 1 | WARNING LABEL | GB | |||
| 35 | 918560 | 1 | RIVING KNIFE | GB | |
||
| 35 | N191590 | 1 | LOCK NUT | GB | |
||
| 36 | 874651 | 1 | PLATE | GB | |
||
| 37 | 873320 | 2 | SCREW | GB | |
||
| 38 | 330060-45 | 1 | CORDSET (M/PLUG) | GB | |
||
| 39 | 916969 | 1 | PROTECTOR | GB | |
||
| 39 | 151225-00 | 1 | COLLAR | GB | |
||
| 40 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 40 | 330024-01 | 7 | SCREW | GB | |
||
| 41 | 894748 | 2 | O RING | GB | |
||
| 41 | 935813-00 | 1 | WASHER | GB | |||
| 42 | 324006-00 | 3 | SCREW | GB | |
||
| 43 | N211574 | 1 | MAGNET | KIT | GB | |
|
| 44 | 322001 | 1 | SWITCH | Lock-Off | GB | |
|
| 44 | 383440-00 | 1 | PIN | GB | |||
| 45 | 311350-12 | 1 | HOUSING PAIR | GB | |||
| 46 | 807285-01 | 1 | CAPACITOR | GB | |
||
| 46 | E604200050I1 | 1 | SPANNER | GB | |
||
| 47 | 093128-00 | 1 | BEARING NEEDLE | GB | |
||
| 49 | 321561 | 1 | FENCE | GB | |
||
| 50 | 605040-15 | 1 | BEARING,BALL | NPP | GB | |
|
| 51 | 395085-00 | 1 | PIN | GB | |
||
| 52 | N415395 | 1 | CLAMP | GB | |||
| 53 | 30612-00 | 1 | PLUG | GB | |
||
| 54 | 911325 | 9 | SCREW | GB | |
||
| 54 | 581240-00 | 1 | BAFFLE FAN | GB | |
||
| 55 | 911353 | 2 | SCREW | GB | |
||
| 55 | 370167-00 | 2 | SCREW | GB | |||
| 56 | 330016-07 | 3 | WASHER | GB | |
||
| 56 | 626629-00 | 1 | LEVER | MITER LOCK | GB | ||
| 57 | 322322 | 2 | NUT WING | GB | |
||
| 57 | 383438-00 | 1 | PLATE | GB | |||
| 59 | 322320 | 1 | KNOB | GB | |
||
| 59 | N079593 | 1 | TRIGGER | GB | |
||
| 60 | N674939 | 1 | LABEL | BRUSHLESS | GB | ||
| 61 | 321354 | 2 | LEAD 70MM | GB | |
||
| 61 | 151239-02 | 1 | FIELD | GB | |||
| 63 | 322319 | 2 | NUT | GB | |
||
| 63 | 330073-33 | 1 | CORDSET | GB | |||
| 64 | 322318 | 2 | SCREW | GB | |
||
| 64 | 241545-03 | 1 | KNOB | GB | |
||
| 65 | 322275 | 1 | KNOB | GB | |
||
| 65 | 380554-00 | 1 | PLATE | GB | |
||
| 66 | 870465 | 1 | BUSH | GB | |
||
| 66 | 635509-00 | 1 | CORD SET | GB | |||
| 67 | 911762 | 1 | SCREW | GB | |
||
| 68 | 372748-05 | 1 | SCREW | GB | |
||
| 70 | 870405 | 1 | WASHER | GB | |
||
| 74 | 918366 | 1 | RUBBER | GB | |
||
| 77 | 879476 | 1 | LEAD 360MM | GB | |
||
| 78 | 322462 | 1 | LATCH | GB | |
||
| 79 | 323253 | 1 | SCREW | GB | |
||
| 80 | 879604 | 1 | LEAD 250MM | GB | |
||
| 84 | 913155 | 1 | SPANNER RING | GB | |
||
| 85 | 918296 | 2 | BLOCK | GB | |
||
| 800 | 6010023-08 | 1 | BASE | CAST IRON | GB | |
|
| 826 | 6010390-64 | 1 | KNOB | GB | |
||
| 827 | 1004751-03 | 1 | ADAPTOR | GB | |
||
| 828 | 90560813 | 1 | CHARGER SA | GB | |||
| 829 | 584421-00 | 1 | RAM | GB | |
||
| 846 | 46903-03 | 1 | FIELDCASE | GB | |
||
| 847 | 646004-00 | 1 | NAMEPLATE | DC305 TY1 | GB | ||
| 848 | N552385 | 1 | OUTER FLANGE | GB | |||
| 849 | 393935-01SV | 1 | GR CASE CVR ASY | GB | |||
| 866 | 1002498-00 | 1 | BEARING | 608-2RD | GB | |
