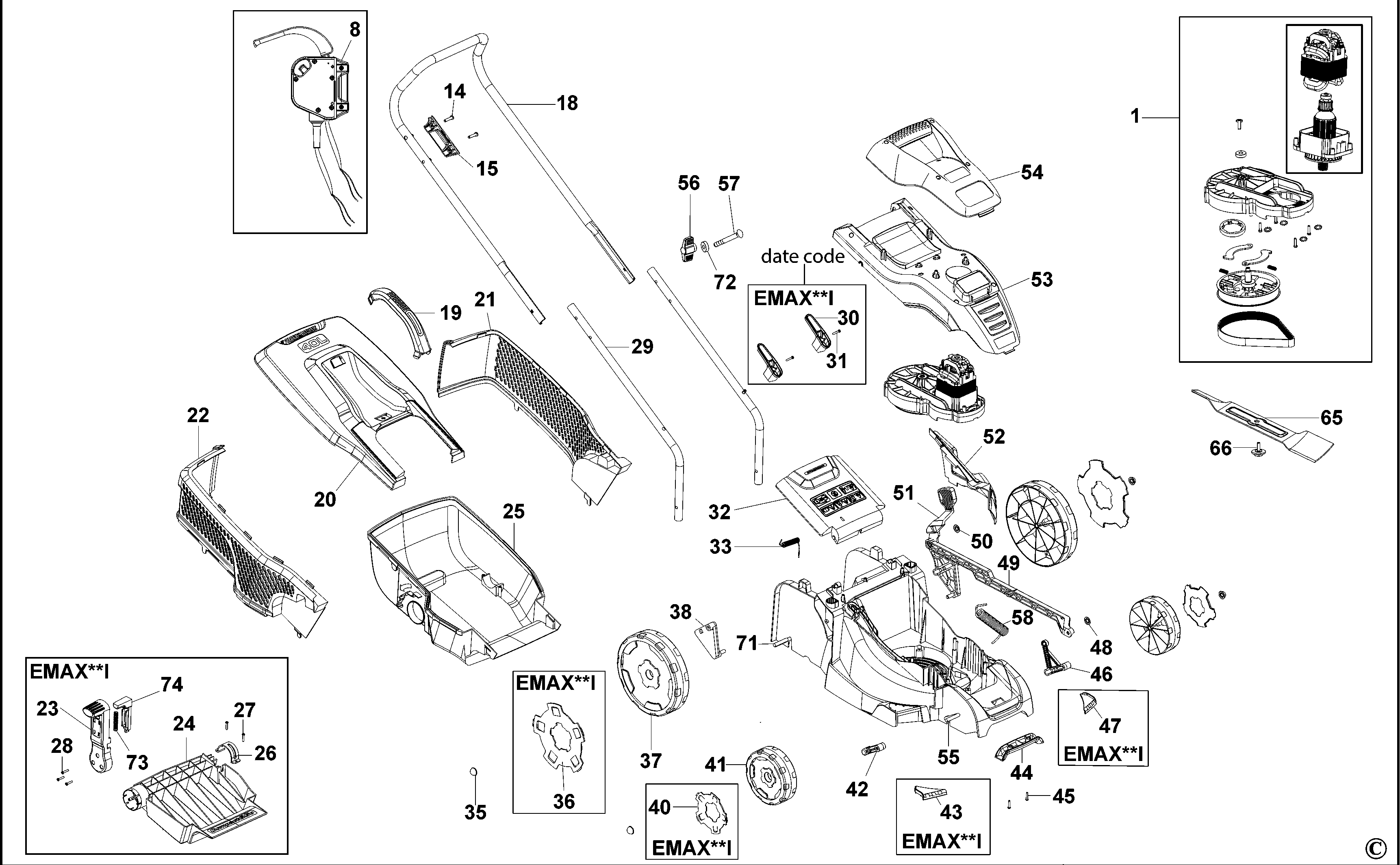

EMAX34 ROTARY MOWER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90635482 | 1 | TRANSMISSION SA | GB |  |
||
| 14 | 747329 | 2 | SCREW | GB |  |
||
| 15 | 90563921-01 | 1 | BRACKET | GB | |
||
| 18 | 90568480 | 1 | HANDLE UPPER | GB | |
||
| 19 | 90567333 | 1 | HANDLE | GB | |
||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 21 | 90567929 | 1 | GRASSBOX LEFT | GB | |
||
| 22 | 90567930 | 1 | GRASSBOX RIGHT | GB | |
||
| 23 | 90566450-01 | 1 | PEDAL | GB | |
||
| 24 | 90568628 | 1 | FLAP | GB | |
||
| 25 | 90567928-01 | 1 | GRASSBOX | Emax34i | GB | |
|
| 26 | 90567440 | 1 | CLAMP | GB | |
||
| 27 | 747329 | 2 | SCREW | GB | |
||
| 28 | 747329 | 3 | SCREW | GB | |
||
| 29 | 90560302-03 | 1 | HANDLE | GB | |
||
| 30 | 90571019 | 1 | CLIP CABLE | GB | |
||
| 31 | 90589823 | 2 | SCREW | GB | |
||
| 32 | 90566433-02 | 1 | GRASSFLAP | GB | |
||
| 33 | 90571059 | 1 | SPRING | GB | |
||
| 33 | 90571059 | 1 | SPRING | GB | |
||
| 35 | 90574276 | 4 | WASHER LOCK | GB | |
||
| 36 | 90567334 | 1 | COVER | GB | |
||
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 38 | 90561676-01 | 1 | BRACKET | GB | |
||
| 40 | 90567335 | 2 | COVER | GB | |
||
| 41 | 90560001 | 2 | WHEEL | GB | |
||
| 43 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 43 | 90561653 | 1 | BRACKET | GB | |
||
| 44 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 45 | 747329 | 2 | SCREW | GB | |
||
| 46 | 90561677 | 1 | BRACKET | GB | |
||
| 48 | 90579431 | 1 | WASHER LOCK | GB | |
||
| 49 | 90562576 | 1 | LEVER | GB | |
||
| 50 | 90579432 | 1 | WASHER LOCK | GB | |
||
| 51 | 90567592-02 | 1 | LEVER | GB | |
||
| 52 | 90565736 | 1 | COVER | GB | |
||
| 53 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 55 | 90561652 | 1 | AXLE FRONT | GB | |
||
| 56 | 90570279-02 | 2 | WING NUT | GB | |
||
| 57 | 90570805 | 1 | BOLT | GB | |
||
| 58 | 90569681 | 1 | SPRING | GB | |
||
| 65 | 90560644-01 | 1 | BLADE | 34cm | GB | |
|
| 66 | 90516533 | 1 | BOLT | GB | |
||
| 71 | 90561606 | 1 | AXLE REAR | GB | |
||
| 72 | 490624-00 | 2 | WASHER | GB | |
||
| 73 | 90570095 | 1 | SPRING | GB | |
||
| 74 | 90567408 | 1 | LEVER | GB | |
