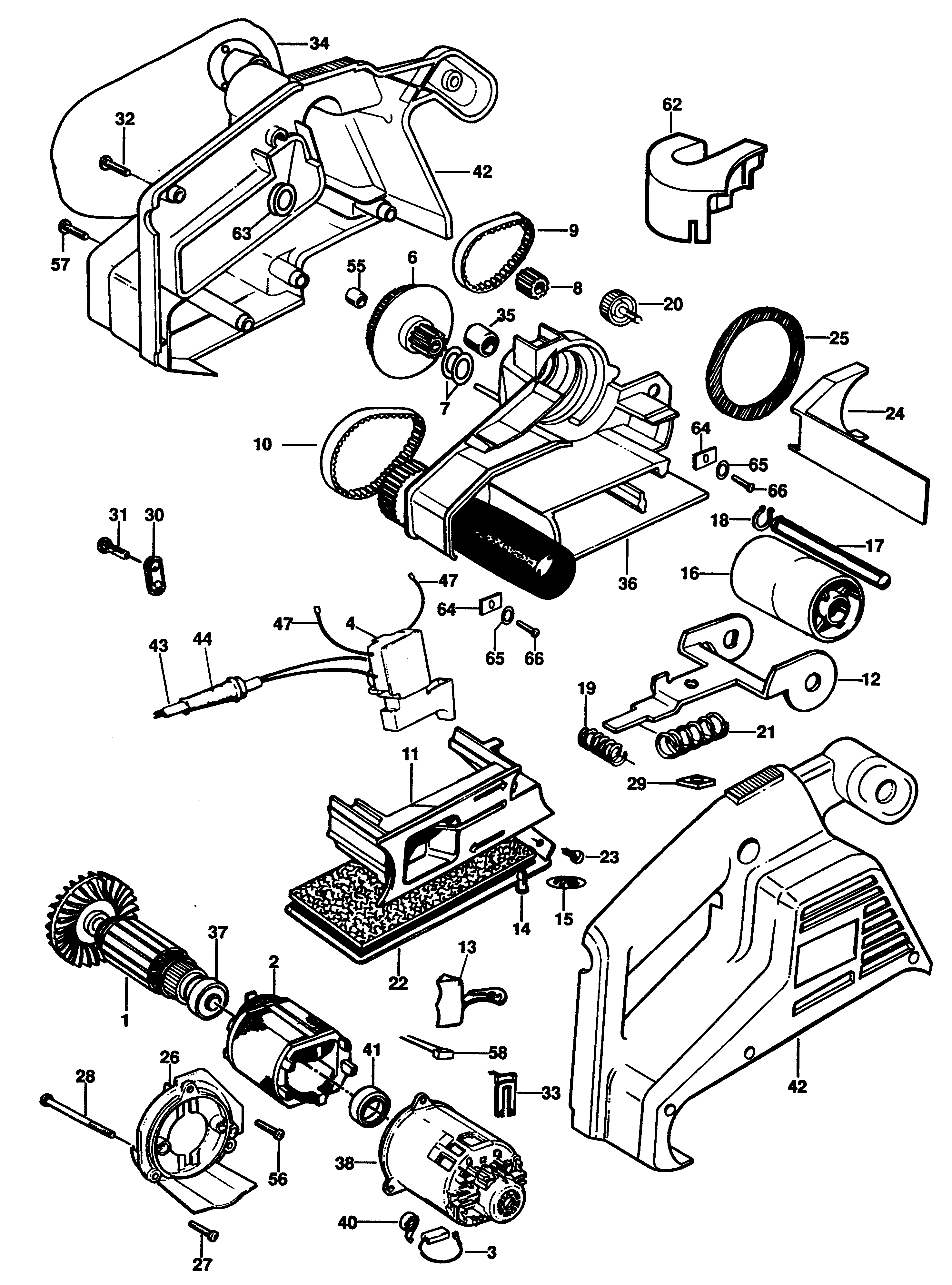

BD75 BELT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323968-00 | 1 | ARMATURE | GB |  |
||
| 2 | 376007-49 | 1 | MOTOR SA | GB | |
||
| 3 | 324016-01 | 2 | BRUSH | GB | |
||
| 4 | 369735-49 | 1 | SWITCH KIT | GB | |
||
| 6 | 371512 | 1 | GEAR | GB | |
||
| 7 | 891066 | 1 | WASHER | POST WEEK 49 1994 | GB | |
|
| 7 | 323753-04 | 2 | WASHER | PRE WEEK 49 1994 | GB | |
|
| 8 | 323902-00 | 1 | PULLEY | GB | |
||
| 9 | 323909-00 | 1 | BELT | GB | |
||
| 10 | 323909-01 | 1 | BELT | GB | |
||
| 11 | 323917-00 | 1 | HOUSING | GB | |
||
| 12 | 916919 | 1 | HOLDER | GB | |
||
| 13 | 325118-00 | 1 | LEVER | GB | |
||
| 14 | 916929 | 1 | RIVET | GB | |
||
| 15 | 916105 | 1 | RING | GB | |
||
| 16 | 873100 | 1 | ROLLER | GB | |
||
| 17 | 878138 | 1 | AXLE | GB | |
||
| 18 | 916930 | 1 | RING | GB | |
||
| 19 | 916925 | 1 | SPRING | GB | |
||
| 20 | 322095 | 1 | ADJUSTER | GB | |
||
| 21 | 916926 | 1 | SPRING | GB | |
||
| 22 | 323916-49 | 1 | PLATE SA | GB | |
||
| 23 | 911059 | 2 | SCREW | GB | |
||
| 26 | 323918-00 | 1 | HOLDER | TYPE 1 | GB | |
|
| 26 | 324947-00 | 1 | HOLDER | TYPE 2 | GB | |
|
| 27 | 324006-01 | 2 | SCREW | GB | |
||
| 28 | 916231 | 2 | SCREW | GB | |
||
| 29 | 914079 | 1 | NUT | GB | |
||
| 30 | 821070 | 1 | CORD CLAMP | GB |  |
||
| 31 | D911324 | 2 | SCREW | GB | |
||
| 32 | 330065-08 | 7 | SCREW | M4x18 T20 | GB | |
|
| 33 | 323858-01 | 1 | CLIP | GB | |
||
| 34 | 323785-00 | 1 | BAG DUST SA | GB | |
||
| 35 | 330004-18 | 1 | BEARING | GB | |
||
| 36 | 325223-00 | 1 | CASTING SA | GB | |
||
| 37 | 605040-63 | 1 | BEARING | GB | |
||
| 38 | 323969-00 | 1 | HOUSING | TYPE 1 | GB | |
|
| 38 | 326059-00 | 1 | HOUSING | TYPE 2 | GB | |
|
| 40 | 872843 | 2 | SPRING | GB | |
||
| 41 | 323910-00 | 1 | CAP | GB | |
||
| 42 | 323772-01 | 1 | CLAMSHELL | TYPE 1 | GB | |
|
| 42 | 326447-01 | 1 | CLAMSHELL | TYPE 2 | GB | |
|
| 43 | 330060-45 | 1 | CORDSET (M/PLUG) | GB | |
||
| 44 | 770235 | 1 | PROTECTOR | GB | |
||
| 47 | 323768-07 | 1 | LEAD 180MM | GB | |
||
| 55 | 330004-19 | 2 | BEARING | GB | |
||
| 56 | 330045-11 | 1 | SCREW | TYPE 2 | GB | |
|
| 56 | 324006-02 | 1 | SCREW | TYPE 1 | GB | |
|
| 57 | 954183 | 2 | SCREW | GB | |
||
| 58 | 320842-06 | 1 | CAPACITOR | GB | |
||
| 62 | 325735-00 | 1 | ADAPTOR | TYPE 2 | GB | |
|
| 63 | 324819-00 | 1 | WASHER | GB | |
||
| 64 | 325514-00 | 2 | PLATE | TYPE 2 | GB | |
|
| 65 | 916702 | 2 | WASHER | TYPE 2 | GB | |
|
| 66 | 324006-00 | 2 | SCREW | TYPE 2 | GB | |
