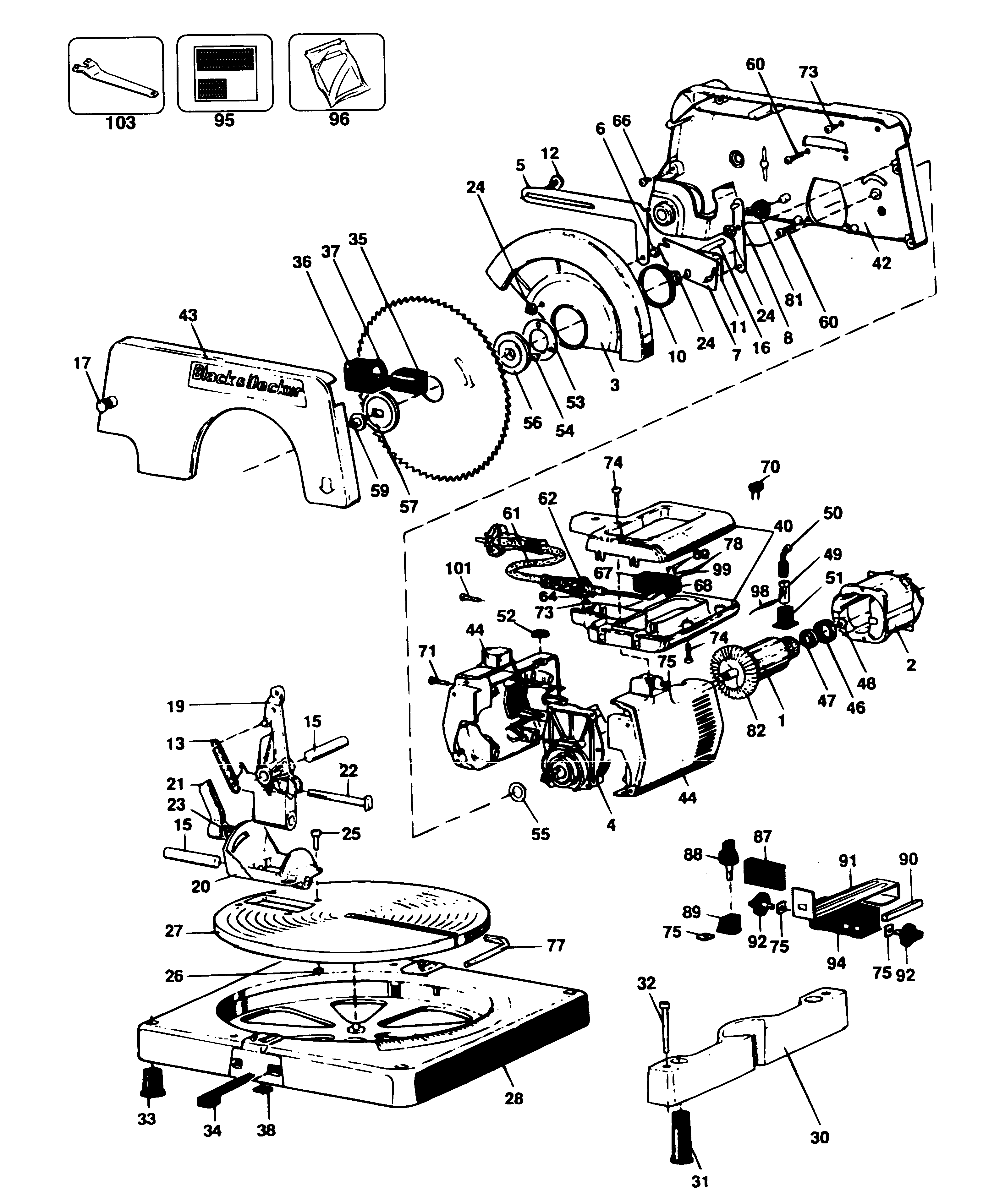

SR700 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 368877-01 | 1 | ARMATURE SA | GB |  |
||
| 2 | 373008-03 | 1 | FIELD 230V | GB | |
||
| 3 | 879741-01 | 1 | GUARD | GB | |
||
| 4 | 376826 | 1 | GEARCASE SA | GB | |
||
| 5 | 911784 | 1 | LEVER | GB | |
||
| 6 | 870091 | 1 | RIVET | GB | |
||
| 7 | 911794 | 1 | BAR | GB | |
||
| 8 | 911984 | 1 | BAR | GB | |
||
| 10 | 911891 | 1 | RING | GB | |
||
| 11 | 911946 | 1 | SPRING | GB | |
||
| 12 | 324776-00 | 1 | SCREW | GB | |
||
| 13 | 870049 | 2 | SPRING | GB | |
||
| 15 | 376649 | 2 | ROD | GB | |
||
| 16 | 911825 | 1 | ROD | GB | |
||
| 17 | 879742-49 | 1 | LOCKING DEVICE | GB | |
||
| 19 | 879747-49 | 1 | BLOCK | GB | |
||
| 20 | 879743-01 | 1 | BRACKET | GB | |
||
| 21 | 322473 | 1 | LEVER | GB | |
||
| 22 | 911879 | 1 | SCREW | GB | |
||
| 24 | 916105 | 3 | RING | GB | |
||
| 25 | 911281 | 4 | SCREW | GB | |||
| 26 | 911018 | 4 | NUT | GB | |
||
| 27 | 320568-01 | 1 | TABLE TURN | GB | |
||
| 28 | 873296-49 | 1 | BASEPLATE | GB | |
||
| 30 | 322555 | 1 | FENCE | GB | |
||
| 31 | 322444 | 2 | ADJUSTER | GB | |
||
| 32 | 911880 | 2 | SCREW | GB | |
||
| 33 | 911972 | 4 | FOOT | GB | |
||
| 34 | 911936 | 1 | TRIGGER | GB | |
||
| 35 | 322446 | 1 | KNOB | GB | |
||
| 36 | 870008 | 1 | SLIDER | GB | |
||
| 37 | 871676 | 1 | SPRING | GB | |
||
| 38 | 918405 | 2 | PLATE | GB |  |
||
| 42 | 325832-00 | 1 | GUARD | TYPE 5 | GB | |
|
| 42 | 370718-49 | 1 | GUARD KIT | TYPE 1-2-3-4 | GB | |
|
| 43 | 325833-00 | 1 | GUARD | TYPE 5 | GB | |
|
| 43 | 323947-01 | 1 | GUARD | TYPE 1-2-3-4 | GB | |
|
| 44 | 321958 | 1 | HOUSING SA | GB | |
||
| 46 | 872448 | 1 | HOLDER BEARING | GB | |
||
| 47 | 330003-31 | 1 | BEARING | GB | |
||
| 48 | 911276 | 1 | SCREW | GB | |
||
| 49 | 321337 | 2 | BRUSH HOLDER | GB | |
||
| 50 | 321338 | 2 | BRUSH SA 230V | GB | |
||
| 51 | 321328 | 2 | INSERT | GB | |
||
| 52 | 321345 | 2 | BRUSH CAP | GB | |
||
| 53 | 914632 | 1 | COVERPLATE | GB | |||
| 54 | 911246 | 3 | SCREW | GB | |
||
| 55 | 910623 | 1 | WASHER | GB | |
||
| 56 | 376716 | 1 | INNER FLANGE | GB | |
||
| 57 | 911795 | 1 | FLANGE | GB | |
||
| 59 | 874177 | 1 | SCREW | GB | |
||
| 60 | 324006-02 | 4 | SCREW | GB | |
||
| 61 | 330060-48 | 1 | CORDSET (M/PLUG) | GB | |
||
| 62 | 916969 | 1 | PROTECTOR | GB | |
||
| 64 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 66 | 324006-00 | 6 | SCREW | GB | |
||
| 67 | 873285 | 1 | CAP | GB | |
||
| 68 | 911726-S | 1 | SWITCH | GB | |
||
| 69 | 911026 | 4 | SCREW | GB | |
||
| 70 | 807285-01 | 1 | CAPACITOR | GB | |
||
| 71 | 911325 | 3 | SCREW | GB | |
||
| 73 | 894748 | 4 | O RING | GB | |
||
| 74 | 911878 | 2 | SCREW | GB | |
||
| 75 | 911521 | 5 | NUT | GB | |
||
| 77 | 098000-11 | 1 | HEX KEY | GB | |
||
| 78 | 879775 | 2 | WIRE | GB | |
||
| 81 | 873112 | 1 | RUBBER | GB | |
||
| 82 | 918865-00 | 1 | FAN | GB | |
||
| 87 | 871760 | 1 | PIECE | GB | |
||
| 88 | 870077 | 1 | SCREW.TEMP | GB | |
||
| 89 | 870076 | 1 | WEDGE | GB | |
||
| 90 | 870080 | 1 | TUBE SQUARE | GB | |
||
| 91 | 870081 | 1 | BRACKET | GB | |
||
| 92 | 322079 | 2 | SCREW | GB | |
||
| 94 | 870082 | 1 | BLOCK | GB | |
||
| 97 | A5842 | 1 | STOP | PARTS NOT DRAWN | GB | |
|
| 98 | 321370 | 2 | CHOKE | GB | |
||
| 99 | 878846 | 1 | LEAD 360MM | GB | |
||
| 101 | 330065-08 | 6 | SCREW | M4x18 T20 | GB | |
