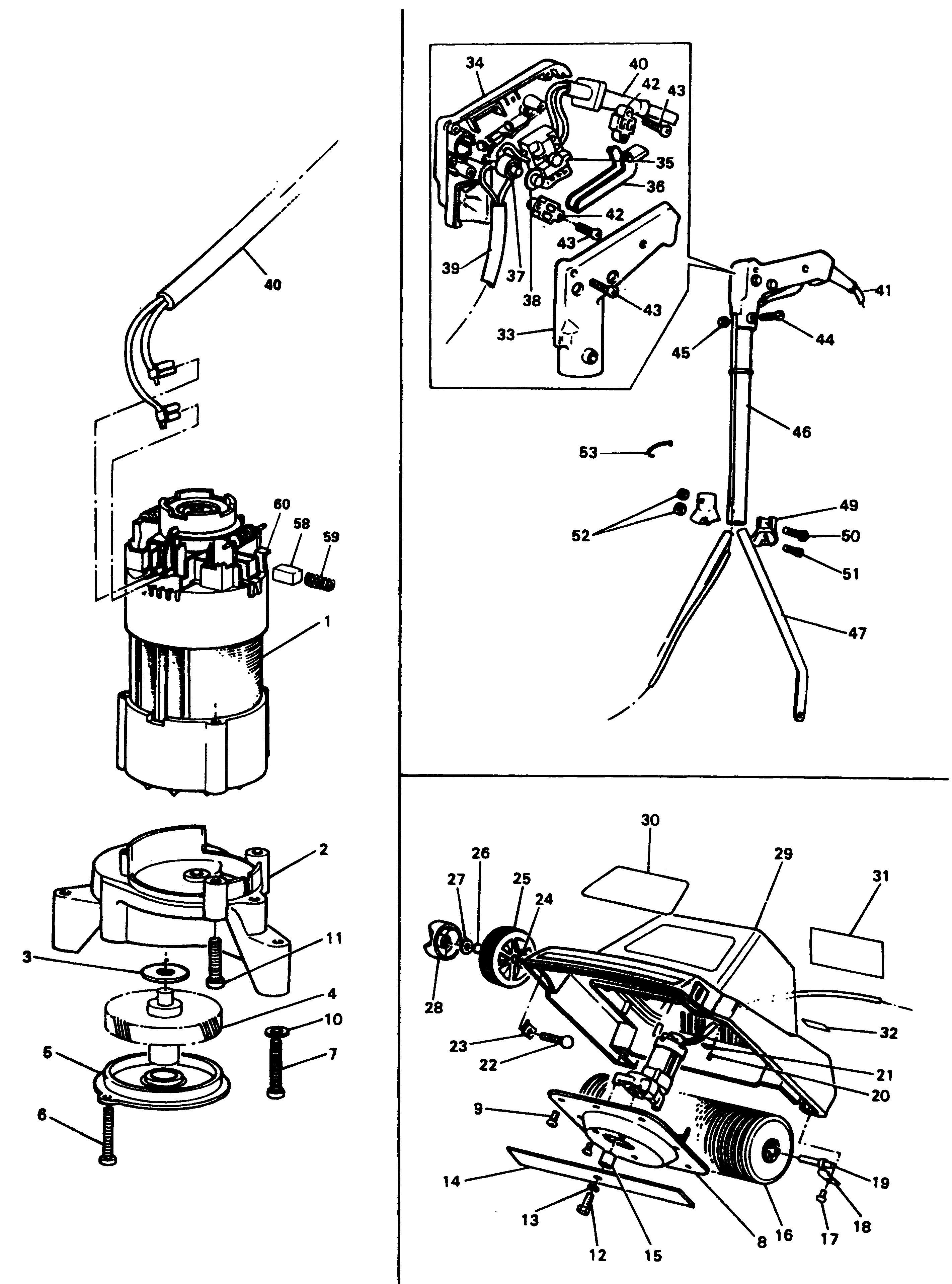

GR100 ROTARY MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376913-08 | 1 | MOTOR SA | H1A | XJ |  |
|
| 2 | 749827 | 1 | GEARCASE SA | H1A | XJ | |
|
| 3 | 892529 | 1 | WASHER THRUST | XJ | |
||
| 5 | 749828 | 1 | GEARCASE COVER | H1A | XJ | |
|
| 6 | 812171 | 2 | SCREW | XJ | |
||
| 7 | 745659 | 3 | SCREW.TEMP | XJ | |
||
| 8 | 826549 | 1 | PLATE SA | XJ | |
||
| 9 | 823143 | 7 | SCREW | XJ | |
||
| 11 | 897748 | 3 | SCREW | XJ | |
||
| 12 | 845432 | 1 | SCREW | XJ | |
||
| 13 | 891070 | 1 | WASHER | XJ | |
||
| 14 | 846838 | 1 | BLADE | XJ | |
||
| 15 | 848861 | 1 | SPACER | XJ | |
||
| 16 | 827892 | 1 | ROLLER | XJ | |
||
| 17 | 810269 | 2 | SCREW | XJ | |
||
| 18 | 827884 | 2 | PLATE | XJ | |
||
| 19 | 827883 | 2 | AXLE STUB | XJ | |
||
| 20 | 810269 | 2 | SCREW | XJ | |
||
| 21 | 821070 | 1 | CORD CLAMP | XJ |  |
||
| 22 | 798388 | 2 | SCREW.TEMP | XJ | |
||
| 23 | 884005 | 2 | INDICATOR | XJ | |
||
| 24 | 891070 | 2 | WASHER | XJ | |
||
| 25 | 890717 | 2 | WHEEL | XJ | |
||
| 26 | 830618 | 2 | SPACER | XJ | |
||
| 27 | 891070 | 2 | WASHER | XJ | |
||
| 28 | 798389 | 2 | WHEELHUB SA | XJ | |
||
| 29 | 369745 | 1 | CUTTER COVER | XJ | |
||
| 30 | 746143 | 1 | BRAND LABEL | XJ | |||
| 31 | 746142 | 1 | WARNING LABEL | XJ | |
||
| 33 | 829371 | 1 | GRIP LH | XJ | |
||
| 35 | 795413 | 1 | SWITCH | XJ | |
||
| 36 | 746063 | 1 | LEVER | XJ | |
||
| 37 | 846541 | 1 | CUT OUT | XJ | |
||
| 38 | 894789 | 1 | CONNECTING WIRE | XJ | |
||
| 39 | 746019 | 1 | CABLE SA | XJ | |
||
| 40 | 890184 | 1 | CORD PROTECTOR | XJ | |
||
| 41 | 330048-53 | 1 | CORDSET (SPLASH) | XJ | |
||
| 42 | 994808 | 2 | CABLE CLAMP | XJ | |
||
| 43 | 849256 | 7 | SCREW | XJ | |
||
| 44 | 898526 | 1 | SCREW | XJ | |
||
| 45 | 892153 | 1 | NUT | XJ | |
||
| 46 | 848707-32 | 1 | TUBE UPPER | XJ | |
||
| 47 | 848710-32 | 2 | TUBE LOWER | XJ | |
||
| 48 | 844840 | 1 | COUPLER (SPLASH) | XJ | |
||
| 49 | 844838 | 2 | CLAMP | XJ | |
||
| 50 | 844941 | 1 | SCREW | XJ | |
||
| 51 | 898996 | 1 | SCREW | XJ | |
||
| 52 | 840815 | 2 | LOCK NUT | XJ | |
||
| 53 | 812151 | 2 | TIE | XJ | |
||
| 58 | 376143 | 2 | BRUSH | XJ | |
||
| 59 | 847709 | 2 | SPRING | XJ | |
||
| 60 | 812738 | 2 | BRUSH HOLDER | XJ | |
