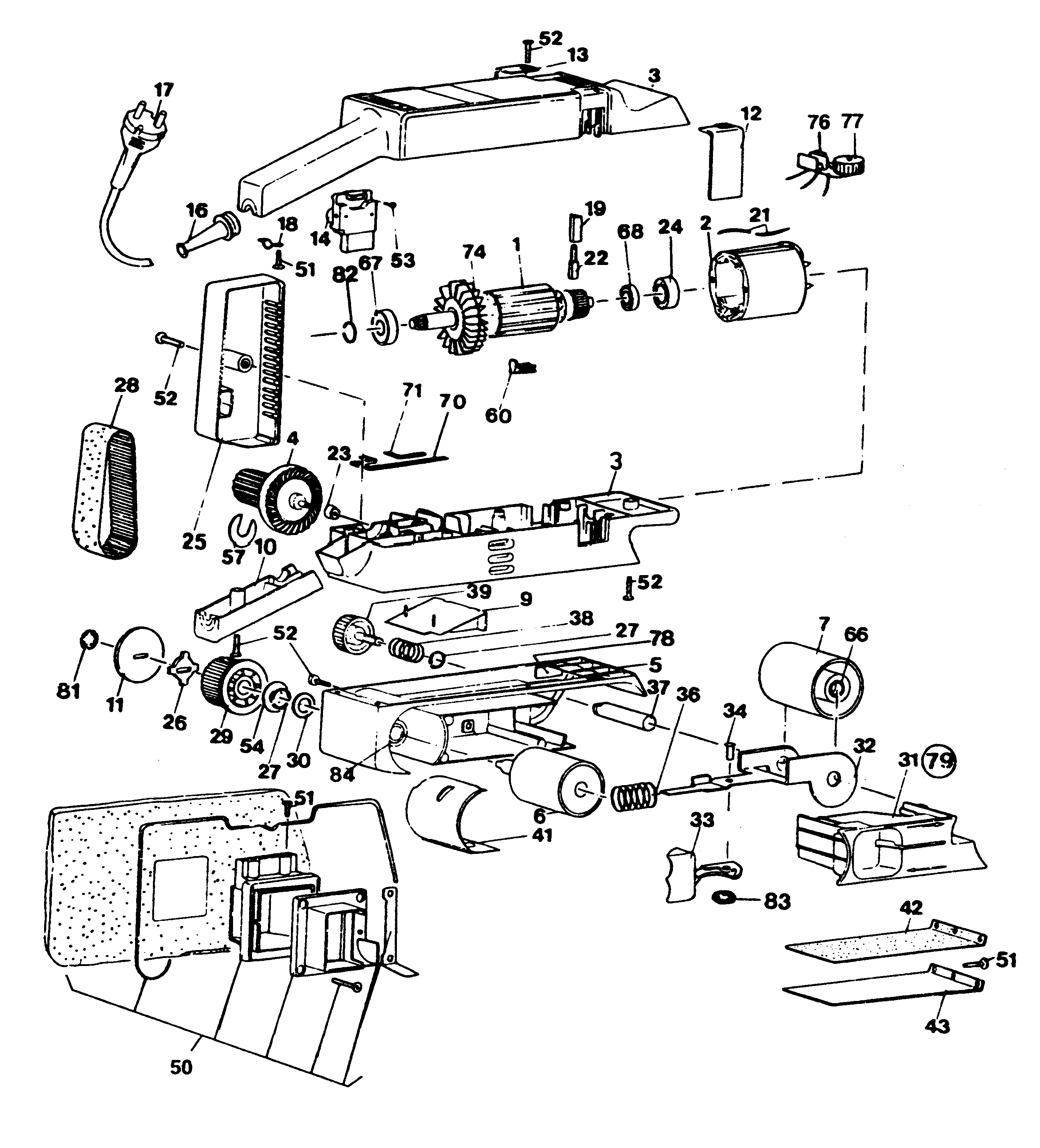

P6103 BELT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 874818 | 1 | ARMATURE | GB |  |
||
| 2 | 879016 | 1 | FIELD | GB | |
||
| 6 | 879385 | 1 | ROLLER | GB | |
||
| 7 | 872497-49 | 1 | ROLLER SA | GB | |
||
| 9 | 917016 | 1 | PLATE | GB | |
||
| 10 | 872418 | 1 | HANDLE COVER | GB | |
||
| 11 | 917159 | 1 | SPACER | GB | |
||
| 12 | 872422 | 1 | COVER | GB | |
||
| 14 | 321997 | 1 | SWITCH | GB | |
||
| 16 | 770235 | 1 | PROTECTOR | GB |  |
||
| 17 | 330060-44 | 1 | CORDSET (M/PLUG) | GB | |
||
| 18 | 821070 | 1 | CORD CLAMP | GB | |
||
| 19 | 321337 | 2 | BRUSH HOLDER | GB | |
||
| 21 | 878259 | 2 | LEAD | GB | |
||
| 22 | 917287 | 2 | BRUSH | GB | |
||
| 23 | 910560 | 1 | BEARING | GB | |
||
| 24 | 911897 | 1 | HOLDER | GB | |
||
| 25 | 918082 | 1 | COVER | GB | |
||
| 26 | 917220 | 1 | CAM | GB | |
||
| 27 | 916930 | 2 | RING | GB | |
||
| 28 | 917570 | 1 | BELT | X40500-XJ | GB | |
|
| 29 | 916940 | 1 | PULLEY | GB | |
||
| 30 | 910623 | 2 | WASHER | GB | |
||
| 31 | 321494 | 1 | HOUSING | GB | |
||
| 32 | 916919 | 1 | HOLDER | GB | |
||
| 33 | 325118-00 | 1 | LEVER | GB | |
||
| 34 | 916929 | 1 | RIVET | GB | |
||
| 36 | 916926 | 1 | SPRING | GB | |
||
| 37 | 878138 | 1 | AXLE | GB | |
||
| 38 | 916925 | 1 | SPRING | GB | |
||
| 39 | 322095 | 1 | ADJUSTER | GB | |
||
| 42 | 918236 | 1 | PLATE | GB | |
||
| 43 | 916923 | 1 | PLATE | GB | |||
| 50 | 878818 | 1 | BAG SA | GB | |
||
| 51 | 911059 | 7 | SCREW | GB | |
||
| 52 | 911325 | 21 | SCREW | GB | |
||
| 53 | 911026 | 4 | SCREW | GB | |
||
| 54 | 917576 | 1 | WASHER | GB | |
||
| 57 | 917218 | 1 | WASHER | GB | |
||
| 60 | 916193 | 2 | PROTECTOR | GB | |||
| 62 | A5160 | 1 | FENCE | PARTS NOT DRAWN | GB | ||
| 66 | 917682 | 2 | BEARING | GB | |
||
| 68 | 330003-19 | 1 | BEARING | GB | |
||
| 70 | 917137 | 1 | SEAL | GB | |
||
| 71 | 917281 | 1 | SEAL | GB | |
||
| 74 | 918207 | 1 | FAN | GB | |
||
| 76 | 879691 | 1 | ELECTRONIC | GB | |
||
| 77 | 322188 | 1 | WHEEL | GB | |
||
| 78 | 916927 | 2 | PAD | GB | |
||
| 79 | 872409 | 1 | ROLLER SET | SERVICE REPAIR KITS | GB | |
|
| 81 | 911788 | 1 | CLIP | GB | |
||
| 83 | 916105 | 1 | RING | GB | |
||
| 84 | 875950 | 2 | BEARING | GB | |
||
| 86 | 325155-00 | 1 | SUPPORT SA | GB | |
||
| 88 | 323159-49 | 1 | PULLEY REPAIR KIT | SERVICE REPAIR KITS | GB | |
