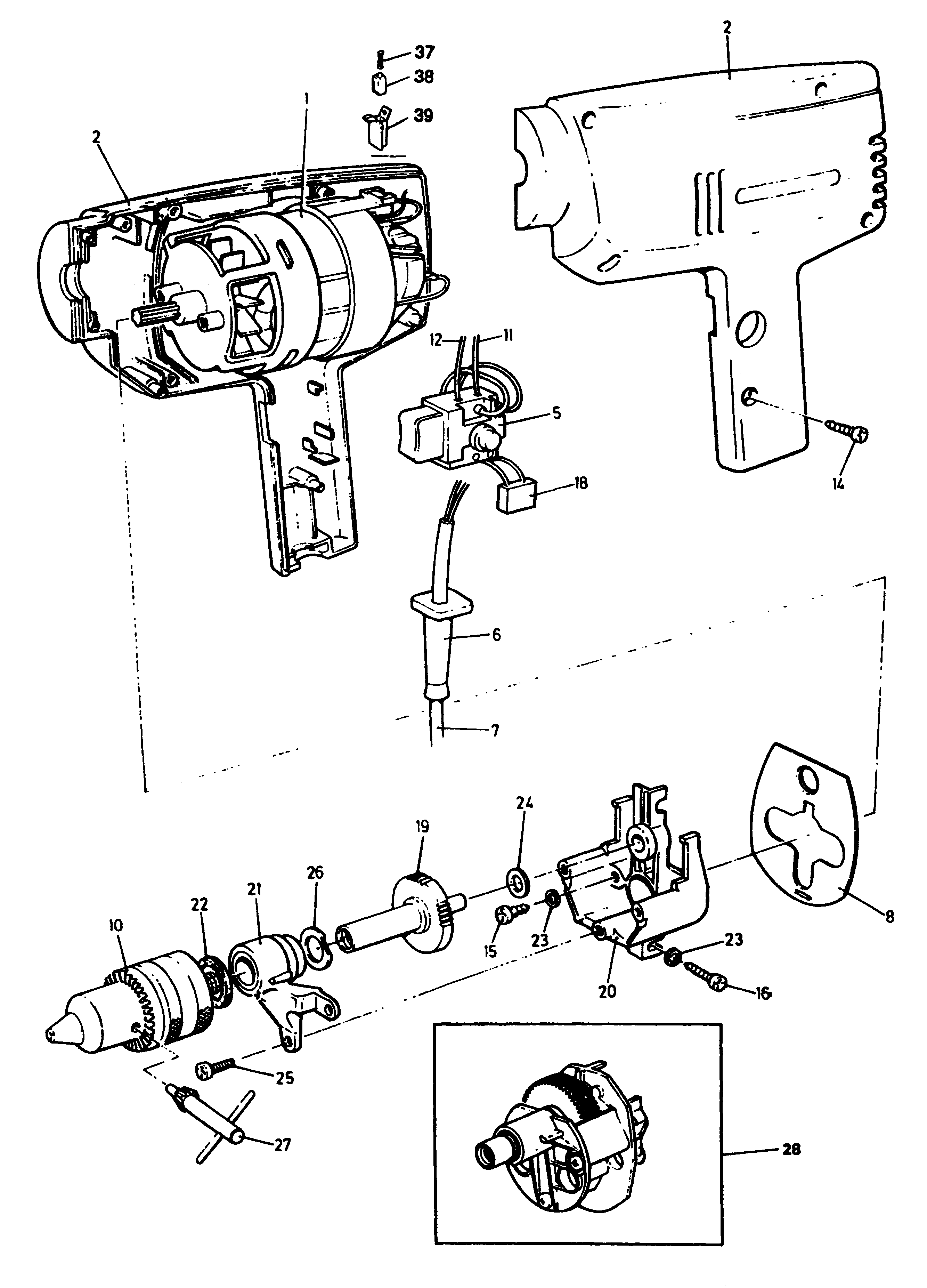

F101 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 372946-49 | 1 | BEARING SA | A7 | XJ |  |
|
| 2 | 821901 | 1 | CLAMSHELL | XJ | |||
| 2 | 322964 | 1 | SPRING | Q425K | XJ | |
|
| 2 | 744188 | 1 | BRACKET | TV450 | XJ |  |
|
| 2 | N587363 | 1 | SHAFT | JS350 | XJ | |
|
| 2 | 829643-49 | 1 | MOTOR SA | JS320 | XJ | |
|
| 3 | 372330 | 1 | LOWER HANDLE | JS350 | XJ | |
|
| 3 | 372814-01 | 1 | DEPTH STOP | TV450 | XJ | |
|
| 3 | 372326 | 1 | GRASSFLAP | Q425K | XJ | |
|
| 5 | 831682 | 1 | SWITCH | XJ | |
||
| 5 | 568565-00 | 1 | DEPTH STOP SA | JS350 | XJ | |
|
| 6 | 890184 | 1 | CORD PROTECTOR | XJ | |
||
| 6 | 1003297-00 | 1 | SWITCH | XJ | |||
| 7 | 4688529 | 1 | CABLE PER METRE | XJ | |
||
| 7 | 6010080-02 | 1 | HANDLE COVER | A7 | XJ | |
|
| 8 | 845653 | 1 | SEAL | XJ | |
||
| 8 | 5170020-91 | 1 | WHEEL | XJ | |||
| 9 | 6010038-02 | 1 | HOUSING RH | RIGHT CABINET | TYPE 1 | XJ | |
| 10 | 330033-20 | 1 | CHUCK | CHUCK S2A | XJ | ||
| 10 | 5170031-49 | 1 | NOZZLE | XJ | |||
| 11 | 90548510 | 2 | RATING PLATE | XJ | |||
| 12 | 249531-00 | 1 | GASKET | JS320 | XJ | |
|
| 13 | 845064 | 2 | BRUSH BOX LEAD | XJ | |
||
| 14 | 849256 | 5 | SCREW | XJ | |
||
| 14 | 6010036-33 | 2 | SPRING | SAFETY SPRING | XJ | ||
| 15 | 812171 | 2 | SCREW | XJ | |
||
| 15 | 6010039-03 | 1 | BUTTON | MAX | JS350 | XJ | |
| 15 | N081989 | 1 | BRUSH PAIR 120V | JS320 | XJ | |
|
| 16 | 810269 | 2 | SCREW | XJ | |
||
| 16 | 6010036-32 | 1 | SCREW | JS350 | XJ | ||
| 18 | 807285-07 | 1 | CAPACITOR | XJ | |
||
| 18 | N017182 | 1 | RING | XJ | |
||
| 19 | 6010026-12 | 1 | FOOT | RUBBER | XJ | ||
| 20 | 821912 | 1 | HOUSING SA | XJ | |||
| 20 | 6010038-38 | 1 | LEADWIRE | XJ | |||
| 21 | 820538 | 1 | HOUSING SA | XJ | |
||
| 21 | 1006028-00 | 6 | SPRING TORSION | XJ | |
||
| 22 | 607911-02 | 1 | BIT SLOTTED | # 8 | XJ | |
|
| 23 | 418-00 | 4 | WASHER LOCK | XJ | |
||
| 23 | 6010038-42 | 2 | CIRCLIP | XJ | |||
| 24 | 994165 | 1 | WASHER THRUST | XJ | |
||
| 24 | 917413 | 1 | SCREW | XJ | |
||
| 25 | 812171 | 3 | SCREW | XJ | |
||
| 25 | 6010020-23 | 3 | HOUSING | HOUSING BODY | XJ | ||
| 26 | 812991 | 1 | WASHER | XJ | |
||
| 26 | 6010071-08 | 1 | MOTOR 230V | JS350 | XJ | ||
| 27 | 330034-00 | 1 | CHUCK KEY 10MM | CHUCK NON S2A | XJ | |
|
| 27 | 330034-07 | 1 | CHUCK KEY | CHUCK S2A | XJ | |
|
| 27 | 568501 | 1 | NUT | XJ | |
||
| 28 | 827389-49 | 1 | GEARBOX SA | XJ | |
||
| 28 | 568500 | 1 | WASHER SPRING | XJ | |
||
| 29 | 806167-01 | 2 | MOTOR SA | XJ | |
||
| 30 | 6010038-41 | 1 | TUBE | FIBER GLASS TUBE | XJ | ||
| 31 | 1003503-00 | 1 | WHEEL FRONT | XJ | |||
| 32 | 562162-00 | 1 | BRUSH HOLDER | XJ | |
||
| 33 | 249505-02 | 1 | FIELDCASE | Yellow | JS350 | XJ | |
| 33 | 249523-01 | 1 | REPAIR KIT | JS320 | XJ | |
|
| 33 | 249574-01 | 1 | HOUSING SA | TV450 | XJ | |
|
| 33 | 249525-00 | 1 | BRUSH HOLDER SA | Q425K | XJ | |
|
| 34 | N021845 | 1 | WASHER THRUST | XJ | |
||
| 35 | 586566-00 | 1 | BEARING BUSH | XJ | |
||
| 36 | N028878 | 2 | KIT SA | JS350 | XJ | |
|
| 37 | 847709 | 2 | SPRING | XJ | |
||
| 37 | 1005879-01 | 1 | LEAD RED | XJ | |
||
| 38 | 372523 | 2 | BRUSH | XJ | |
||
| 38 | 247832-00 | 1 | REPAIR KIT | JS350 | XJ | |
|
| 38 | 249571-00 | 1 | WASHER | TV450 | XJ | |
|
| 38 | 805789-01 | 1 | BRAND LABEL | JS320 | XJ | |
|
| 38 | 329386-00 | 1 | SWITCH | Q425K | XJ | |
|
| 39 | 846076 | 2 | BRUSHBOX | XJ | |
||
| 39 | 571570-00 | 1 | BLADE SA | XJ | |
||
| 40 | 808570-06 | 1 | CLAMSHELL | XJ | |
||
| 41 | 1004512-31 | 2 | GUARD | XJ | |
||
| 42 | 585794-00 | 1 | SWITCH SA | XJ | |||
| 43 | 590912-00 | 1 | LOCKING DEVICE | JS350 | XJ | ||
| 43 | 247054-20 | 1 | COVER REAR | TV450 | XJ | |
|
| 44 | 571570-00 | 1 | BLADE SA | JS350 | XJ | |
|
| 45 | 6010119-16 | 10 | RING | XJ | |
||
| 46 | 6010071-16 | 1 | TOP | TOP CABINET | XJ | ||
| 47 | 6010071-02 | 1 | SHAFT | BRASS SHAFT | JS350 | XJ | |
| 48 | 861382-00 | 1 | SWITCH COVER | XJ | |
||
| 49 | 6010038-44 | 1 | SWITCH SA | XJ | |||
| 50 | 6010039-02 | 1 | HOUSING RH | HOUSING (RHS) | XJ | ||
| 51 | 6010039-01 | 1 | HOUSING LH | HOUSING (LHS) | XJ | ||
| 52 | 6010020-32 | 1 | ELEMENT SA | 230V | XJ | ||
| 53 | 6010036-30 | 1 | SCREW | XJ | |||
| 55 | 581079-00 | 1 | BATTERY | 9 V | XJ | ||
| 800 | 6010023-08 | 1 | BASE | CAST IRON | XJ | |
|
| 846 | 917413 | 1 | SCREW | XJ | |
||
| 847 | 248302-05 | 1 | SCREW | Q425K | XJ | |
