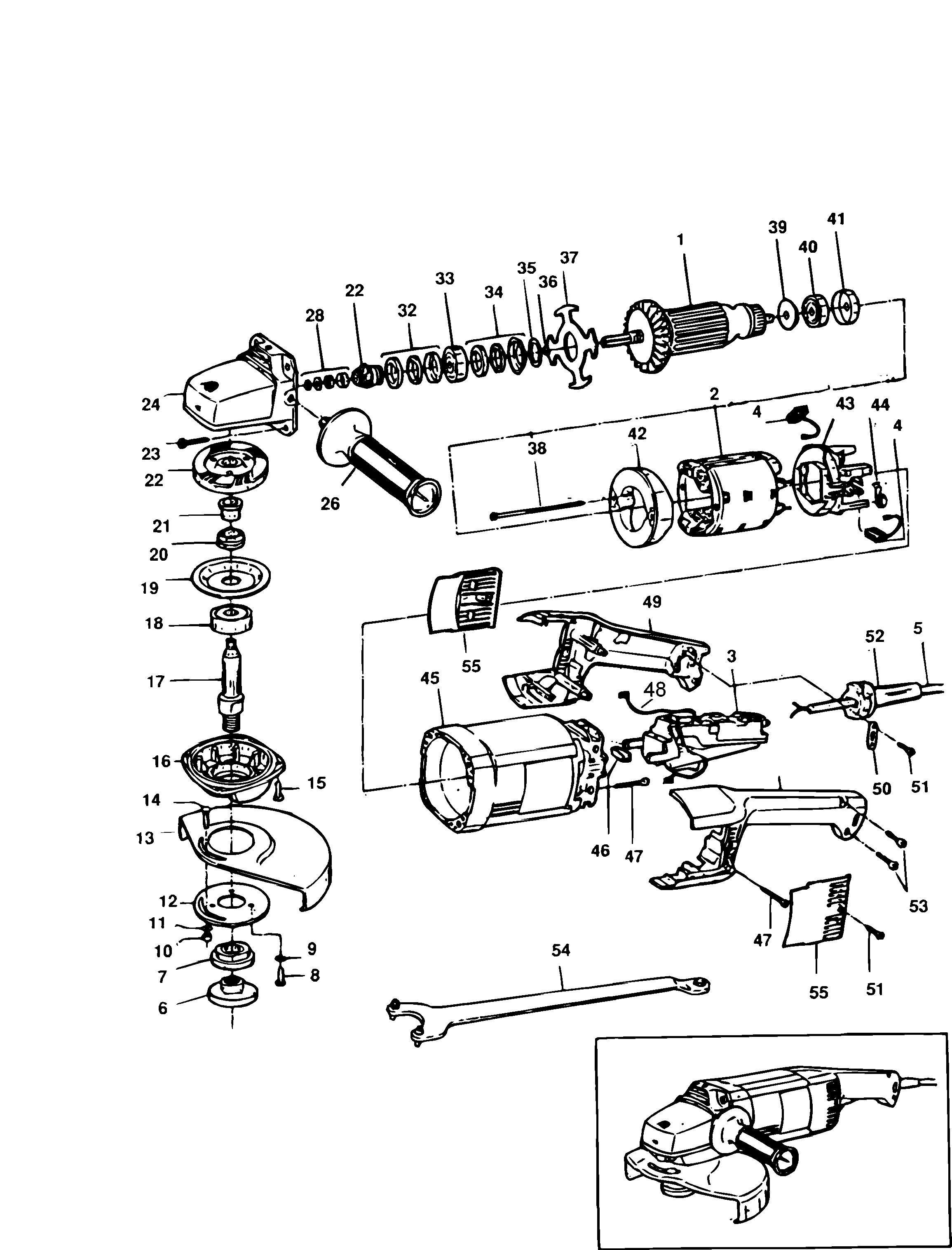

PL85 GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 930962-49 | 1 | ARMATURE 220/240V | GB |  |
||
| 2 | 868531-02 | 1 | FIELD 230V | GB | |
||
| 3 | 949825-04 | 1 | SWITCH LOCK-ON | GB | |
||
| 4 | 940160-01 | 2 | BRUSH CUT OFF | 230V | GB |  |
|
| 5 | 949770-12 | 1 | CABLE & PLUG | GB | |
||
| 6 | 931771 | 1 | FLANGE | GB | |
||
| 7 | 930927 | 1 | FLANGE | GB | |
||
| 8 | 933058-00 | 3 | SCREW | GB | |
||
| 9 | 932369 | 3 | WASHER | GB | |
||
| 10 | 860083-03 | 1 | NUT | GB | |
||
| 11 | 930925 | 1 | WASHER | GB | |
||
| 12 | 930929 | 1 | FLANGE | GB | |
||
| 13 | 931942-02 | 1 | GUARD 9" | GB | |
||
| 14 | 949892-07 | 1 | SCREW | GB | |
||
| 15 | 949887-01 | 4 | SCREW | GB | |
||
| 16 | 947962-00 | 1 | GEARCASE COVER | GB | |
||
| 17 | 578243-00 | 1 | SPINDLE | GB | |
||
| 18 | 930566 | 1 | BEARING | GB | |
||
| 19 | 930924 | 1 | FLANGE | GB | |
||
| 20 | 930923 | 1 | SEAL | GB | |
||
| 21 | 930922 | 1 | SPACER | GB | |
||
| 22 | 932522 | 1 | GEAR & PINION SA | GB | |
||
| 23 | 930930 | 4 | SCREW | GB | |
||
| 24 | 401048-00 | 1 | GEARCASE SA | GB | |
||
| 26 | 939815 | 1 | HANDLE SIDE SA | GB | |
||
| 28 | 937098-49 | 1 | CLIP SA | GB | |
||
| 32 | 930909 | 1 | SEAL SA | GB | |
||
| 33 | 330003-14 | 1 | BEARING | GB | |
||
| 34 | 931067-00 | 1 | SEAL SA | GB | |
||
| 35 | 931062 | 1 | SPACER | GB | |||
| 36 | 930028-00 | 1 | O RING | GB | |
||
| 37 | 931066-00 | 1 | FLANGE | GB | |
||
| 38 | N412453 | 2 | SCREW | GB | |
||
| 39 | N174055 | 1 | SPACER | TYPE 2 | GB | |
|
| 40 | 577745-00 | 1 | BEARING | GB | |
||
| 41 | 931070 | 1 | SLEEVE | TYPE A1 | GB | |
|
| 41 | 938332-00 | 1 | SLEEVE | TYPE 2 | GB | |
|
| 42 | 931073-00 | 1 | BAFFLE | GB | |
||
| 43 | D935745 | 1 | BRUSH PLATE SA | GB | |
||
| 44 | 931076-00 | 2 | SPRING | GB | |
||
| 45 | 948134-01 | 1 | FIELDCASE SA | GB | |||
| 46 | 930934-00 | 4 | SHOCK ABSORBER | GB | |
||
| 47 | 931297-00 | 4 | SCREW | GB | |
||
| 49 | 935753-01 | 1 | HANDLE SA | GB | |
||
| 50 | 931477-00 | 1 | CORD CLAMP | GB | |
||
| 51 | 931469-02 | 4 | SCREW | GB | |
||
| 52 | 930981-00 | 1 | CORD PROTECTOR | GB | |
||
| 53 | 930284-01 | 2 | SCREW | GB | |
||
| 54 | 938733 | 1 | WRENCH PIN | GB | |
||
| 55 | 933364-01 | 2 | COVER | GB | |
