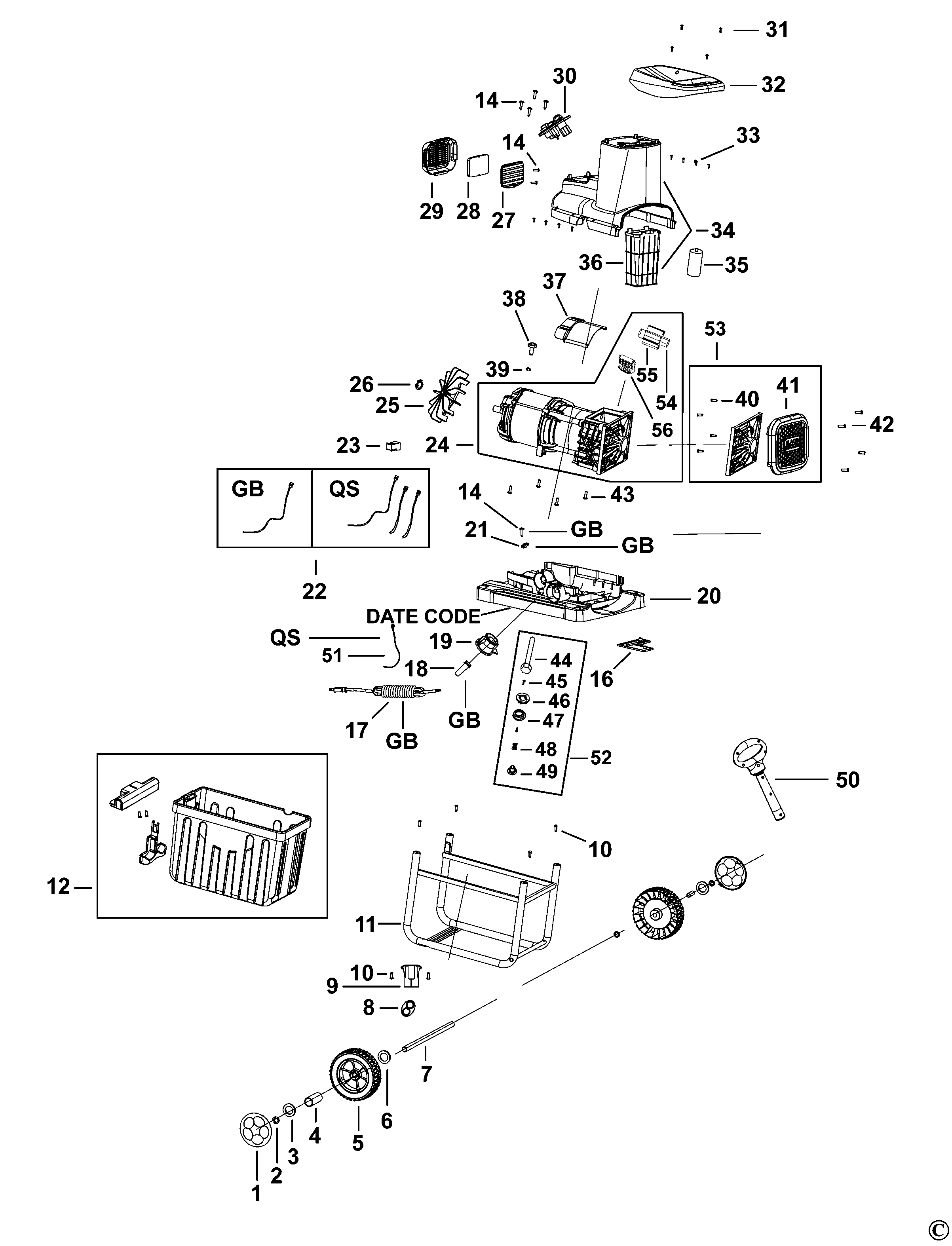

BEGAS5800 SHREDDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004758-78 | 2 | COVER | GB |  |
||
| 1 | RS89UCNLC | 1 | WHEEL PIVOT | GB | |
||
| 2 | 1004758-79 | 2 | NUT | GB | |
||
| 2 | 080888-00 | 1 | WHEEL FIXED | GB | |
||
| 3 | 1004758-80 | 2 | WASHER | GB | |
||
| 3 | 056936-00 | 1 | BUMPER | GB | |
||
| 4 | 1004758-81 | 2 | PIPE | GB | |
||
| 4 | 056787-00 | 1 | DRAWER | GB | |
||
| 5 | 1004758-82 | 2 | WHEEL | GB | |
||
| 5 | RSSCD-NG | 1 | SHELF | GB |  |
||
| 6 | 1004758-83 | 2 | WASHER | GB | |
||
| 7 | 1004758-84 | 1 | SHAFT | GB | |
||
| 7 | 1004718-87 | 1 | RING,GASKET | GB | |
||
| 8 | 1004758-85 | 2 | COVER | GB | |
||
| 8 | APR1-26 | 1 | RING | GB | |
||
| 9 | 1004758-86 | 2 | FOOT | GB | |
||
| 9 | AS100-30 | 1 | MOUNT | GB | |
||
| 10 | 1004758-87 | 8 | SCREW | GB | |
||
| 10 | APR1-30 | 1 | PISTON SA | GB | |
||
| 11 | 1004758-88 | 1 | FRAME | GB | |
||
| 11 | APR1-43 | 1 | PIN | GB | |
||
| 12 | 1004759-46 | 1 | COLLECTOR | GB | |
||
| 12 | 36974 | 1 | DRAWER | GB | |
||
| 13 | 041867 | 1 | WHEEL PIVOT | GB | |||
| 14 | 1004758-91 | 16 | SCREW | GB | |
||
| 16 | 1004758-93 | 1 | COVER | GB | |
||
| 17 | 1004758-94 | 1 | CORDSET | GB | |
||
| 18 | 1004758-95 | 1 | CORD PROTECTOR | GB | |
||
| 18 | MB197UCST | 1 | TOP | GB | |
||
| 19 | 1004758-96 | 1 | COVER | GB | |
||
| 20 | 1004758-97 | 1 | HOUSING LOWER | GB | |
||
| 20 | 056836-00 | 1 | SLIDE | GB | |
||
| 21 | 1004758-98 | 1 | CLAMP | GB | |
||
| 22 | 1004759-00 | 1 | WIRE | GB | |
||
| 22 | 056937-00 | 2 | CAP | GB | |
||
| 23 | 1004759-01 | 1 | SWITCH SAFETY | GB | |
||
| 23 | AS150-23 | 1 | RING | GB | |
||
| 24 | 000000-02 | 1 | EXCHANGE UNIT | GB | |||
| 24 | 056933-00 | 2 | STRIP | GB | |||
| 25 | 1004759-04 | 1 | FAN | GB | |
||
| 25 | 056846-00 | 1 | BUMPER | GB | |||
| 26 | 1004759-05 | 1 | CIRCLIP | GB | |
||
| 26 | AS150-01 | 1 | HOUSING MOTOR | GB | |
||
| 27 | 1004759-06 | 1 | COVER | GB | |
||
| 27 | APR1-58 | 1 | SPRING | GB | |
||
| 28 | 1004759-07 | 1 | FILTER | GB | |
||
| 28 | MB6901-36 | 4 | BEARING,BALL | GB | |
||
| 29 | 1004759-08 | 1 | COVER | GB | |
||
| 29 | AS150-29 | 1 | KEY | GB | |
||
| 30 | 1004759-09 | 1 | SWITCH SA | GB | |
||
| 30 | NEMVA6176 | 1 | SCREW | GB | |
||
| 31 | 1004759-10 | 4 | SCREW | GB | |
||
| 31 | AS100-07 | 1 | PLUNGER | GB | |
||
| 32 | 1004759-11 | 1 | COVER | GB | |
||
| 32 | AS6MS-PSA-PAD | 1 | PAD | GB | |||
| 33 | 1004759-12 | 8 | SCREW | GB | |
||
| 33 | AS100-43 | 2 | CLAMP | GB | |
||
| 34 | 1004759-47 | 1 | HOUSING UPPER | GB | |
||
| 34 | AR1776-12 | 2 | SCREEN | GB | |||
| 35 | 1004759-14 | 1 | CAPACITOR | GB | |
||
| 36 | 1004759-15 | 1 | FUNNEL | GB | |
||
| 36 | AS150-16 | 1 | CYLINDER | GB | |
||
| 37 | 1004759-16 | 1 | MOTOR COVER | GB | |
||
| 38 | 1004759-17 | 1 | SCREW | GB | |
||
| 38 | AS150-36 | 1 | HUB | GB | |
||
| 39 | 1004759-18 | 1 | WASHER | GB | |
||
| 39 | 1004775-45 | 1 | CHUCK | GB | |
||
| 40 | 1004759-19 | 4 | SCREW | GB | |
||
| 40 | 31851 | 1 | DRAWER | GB | |
||
| 41 | 1004759-20 | 1 | COVER | GB | |
||
| 41 | MBD195UC1-BK | 1 | DRAWER | GB | |
||
| 42 | 1004759-21 | 4 | SCREW | GB | |
||
| 42 | 31046 | 1 | DRAWER | GB | |||
| 43 | 1004759-22 | 4 | SCREW | GB | |
||
| 43 | E604600010-D1 | 1 | NUT M8 | GB | |
||
| 44 | 1004759-23 | 1 | BOLT | ADJUSTING | GB | |
|
| 44 | 056859-00 | 1 | NUT | GB | |||
| 45 | 1004759-24 | 1 | SCREW | GB | |
||
| 45 | MBD195UC1-GR | 1 | DRAWER | GB | |
||
| 46 | 1004759-25 | 1 | FLANGE | GB | |
||
| 47 | 1004759-26 | 1 | COVER | GB | |
||
| 47 | 1004745-98 | 1 | ADAPTOR | GB | |
||
| 48 | 1004759-27 | 1 | SPRING | GB | |
||
| 48 | 34332 | 1 | DRAWER | GB | |
||
| 49 | 1004759-28 | 1 | ADJUSTER | KNOB | GB | |
|
| 49 | AW145-001 | 1 | BUSHING | GB | |
||
| 50 | 1004759-29 | 1 | BAR | FEEDING | GB | |
|
| 51 | 9R199608 | 2 | GASKET | GB | |
||
| 52 | 1004759-45 | 1 | ADJUSTER SA | GB | |
||
| 52 | 102532A | 1 | BRACE | GB | |
||
| 53 | 1004760-02 | 1 | COVER | GB | |
||
| 54 | 1004760-03 | 1 | SHAFT | GB | |
||
| 55 | 1004760-04 | 1 | BLADE | GB | |
||
| 56 | 1004760-05 | 1 | ADJUSTER PLATE | GB | |
