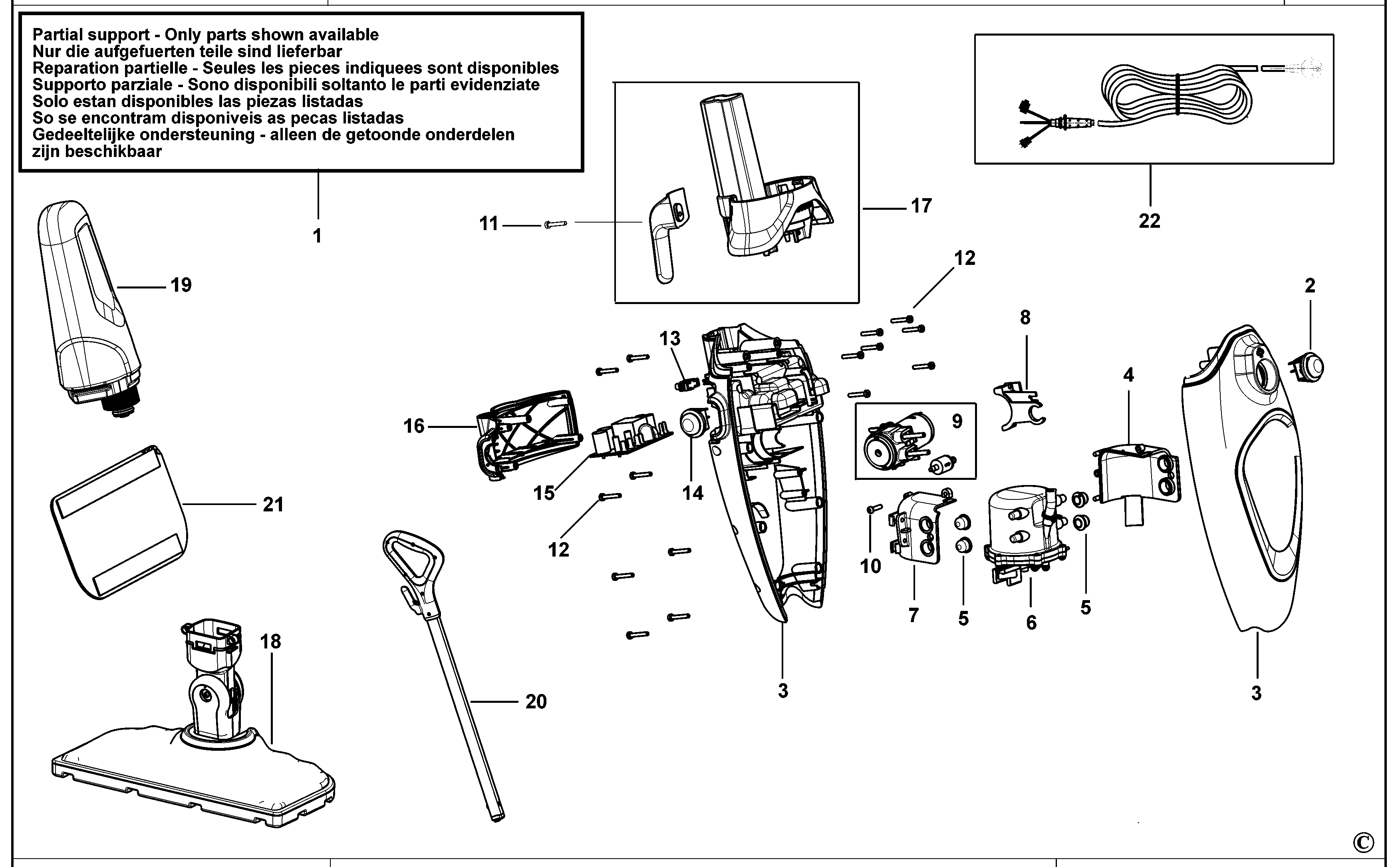

FSM1615 STEAM MOP Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | GB | |||
| 2 | 90376599 | 1 | SWITCH SA | GB |  |
||
| 2 | 809201-02 | 1 | ACTUATOR | GB |  |
||
| 3 | 90621550 | 1 | HOUSING SA | GB | |
||
| 4 | 90581692 | 1 | BRACKET RH | GB | |
||
| 4 | N072923 | 2 | GUARD COVER | OEM | GB | |
|
| 5 | 90578187 | 4 | RUBBER | GB | |
||
| 5 | 624548-00SV | 2 | CONTROL MODULE | GB | |||
| 6 | 90578170-08 | 1 | BOILER SA | GB | |||
| 6 | 450213-00 | 1 | TERMINAL | GB | |
||
| 7 | 90581691 | 1 | BRACKET LH | GB | |
||
| 7 | N359999 | 1 | SWITCH ASSEMBLY | w/Weld terminals | GB | ||
| 8 | 90619522 | 1 | CLAMP | GB | |
||
| 8 | 90511408 | 1 | INSERT | GB | |
||
| 9 | 90620369 | 1 | PUMP SA | GB | |
||
| 10 | 143062-02 | 6 | SCREW | GB | |
||
| 10 | 330003-16 | 1 | BEARING | GB | |
||
| 11 | 90595772-01 | 8 | SCREW | GB | |
||
| 11 | 9532087H | 1 | CORD PROTECTOR | GB | |||
| 12 | 90625935 | 8 | SCREW | GB | |
||
| 12 | 33874-00 | 2 | SCREW | GB | |||
| 13 | 90581491 | 1 | TERMINAL | GB | |
||
| 13 | 330065-07 | 4 | SCREW | GB | |
||
| 14 | 90376599-01 | 1 | SWITCH SA | ON/OFF RED | GB | |
|
| 14 | N411027 | 4 | LEAD ASSY. | WHITE (125MM) | GB | ||
| 15 | 90618575 | 1 | PCB | GB | |
||
| 15 | N399977 | 1 | RECIP. SHAFT ASSY. | GB | |||
| 16 | 90616729 | 1 | COVER | GB | |
||
| 17 | 90616728 | 1 | HOUSING & COVER | TANK | GB | |
|
| 17 | 98091-10 | 2 | SCREW | GB | |
||
| 18 | 90616990 | 1 | HEAD SA | GB | |
||
| 19 | 90616851-01 | 1 | TANK | GB | |
||
| 20 | 90615713 | 1 | HANDLE SA | GB | |
||
| 21 | 90622110 | 1 | PAD | GB | |
||
| 21 | 6010358-02 | 1 | HOUSING LH | GB | |||
| 22 | 90622119-01 | 1 | CORDSET | 6m | GB | ||
| 23 | 152736-01 | 1 | NAMEPLATE | GB | |
||
| 25 | 569081-00 | 2 | AUTO STOP LABEL | GB | |
||
| 26 | N022764 | 1 | BALL STEEL | GB | |
||
| 27 | 000380-00 | 1 | SCREW | GB | |||
| 28 | 612001-01 | 2 | LOCATOR | GB | |||
| 29 | 386588-00 | 1 | LABEL | GB | |
||
| 31 | AT35-26 | 1 | JOINT | GB | |
||
| 34 | 626004-01 | 1 | LEAD SA WHITE | WHITE, 165MM | GB | |
|
| 35 | 135089-00 | 1 | WASHER | GB | |
||
| 36 | 629580-00 | 2 | NUT | GB | |
||
| 37 | 402054-03 | 1 | END CAP | GB | |
||
| 38 | N411027 | 2 | LEAD ASSY. | WHITE (125MM) | B CAP | GB | |
| 38 | 74997-00 | 2 | SCREW | NON B CAP | GB | |
|
| 40 | 74997-00 | 1 | SCREW | GB | |
||
| 846 | 152251-02 | 1 | PACK,BATTERY | GB | |||
| 847 | 608354-00 | 1 | DUST BAG | GB |
