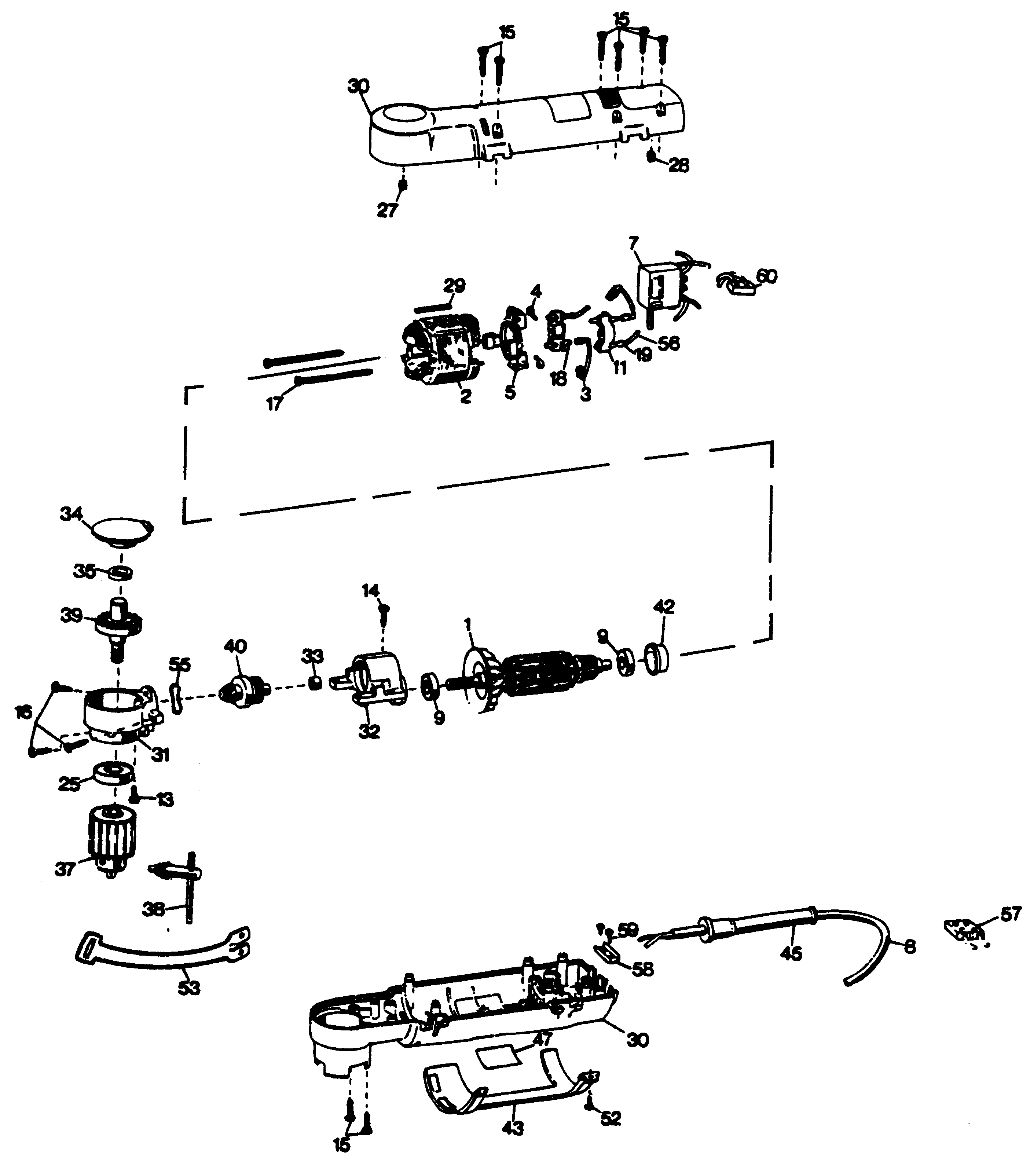

1065 DRILL Type 100 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448583-31 | 1 | ARMATURE & FAN | GB 115V | LX | ||
| 3 | 445861-25 | 2 | BRUSH 115V | LX |  |
||
| 4 | 445860-00 | 2 | BRUSH SPRING | LX | |
||
| 5 | 449899-05 | 1 | RING | LX | |
||
| 7 | 429883-00 | 1 | SWITCH SA | LX |  |
||
| 8 | 448557-98 | 1 | CABLE | GB 115V | LX | |
|
| 9 | 605040-06 | 2 | BEARING,BALL | LX | |
||
| 11 | 449829-00 | 2 | NUT | LX | |
||
| 12 | 234900-02 | 1 | PLUG | GB 115V NOT SHOWN | LX | ||
| 13 | 55206-00 | 1 | SCREW | LX | |||
| 15 | 95067-00 | 8 | SCREW | LX | |
||
| 16 | 330013-03 | 3 | SCREW | LX | |
||
| 17 | 448269-00 | 2 | SCREW | LX | |
||
| 18 | 445881-99 | 2 | STRIP | LX | |
||
| 19 | 449192-00 | 2 | TERMINAL | LX | |
||
| 25 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | LX | |
|
| 27 | 30611-00 | 1 | PLUG | LX | |||
| 28 | 95114-00 | 1 | PLUG | LX | |||
| 29 | 445402-00 | 1 | RUBBER PAD | LX | |
||
| 31 | 449857-00 | 1 | GEARCASE | LX | |||
| 32 | 449033-01 | 1 | GEARCASE | LX | |
||
| 33 | 131557-00 | 1 | SLEEVE | LX | |
||
| 34 | 448591-00 | 1 | GEARCASE COVER | LX | |
||
| 35 | 445175-00 | 1 | SLEEVE | LX | |
||
| 37 | 429663-00 | 1 | CHUCK & KEY | GB 115V | LX | |
|
| 38 | 330034-07 | 1 | CHUCK KEY | LX | |
||
| 39 | 445414-02 | 1 | SPINDLE & GEAR | LX | |
||
| 40 | 445397-02 | 1 | GEAR & PINION | LX | |
||
| 42 | 445217-02 | 1 | SLEEVE | LX | |
||
| 43 | 286495-00 | 1 | PADDLE | LX | |
||
| 45 | N542553 | 1 | CORD PROTECTOR | LX | |||
| 45 | N542553 | 1 | CORD PROTECTOR | LX | |||
| 47 | 146466-00 | 1 | NAMEPLATE | GB 115V | LX | ||
| 52 | 80488 | 1 | SCREW | LX | |
||
| 53 | 065288-01 | 1 | HOLDER CHUCK KEY | PARTS NOT SHOWN | LX | |
|
| 55 | 448373-00 | 1 | WASHER SPRING | LX | |
||
| 56 | 449480-00 | 2 | LEAD | LX | |
||
| 57 | 320078-00 | 1 | TERMINAL BLOCK | LX | |
||
| 59 | 330013-03 | 1 | SCREW | LX | |
||
| 60 | 93585-00 | 1 | CAPACITOR | LX | |
