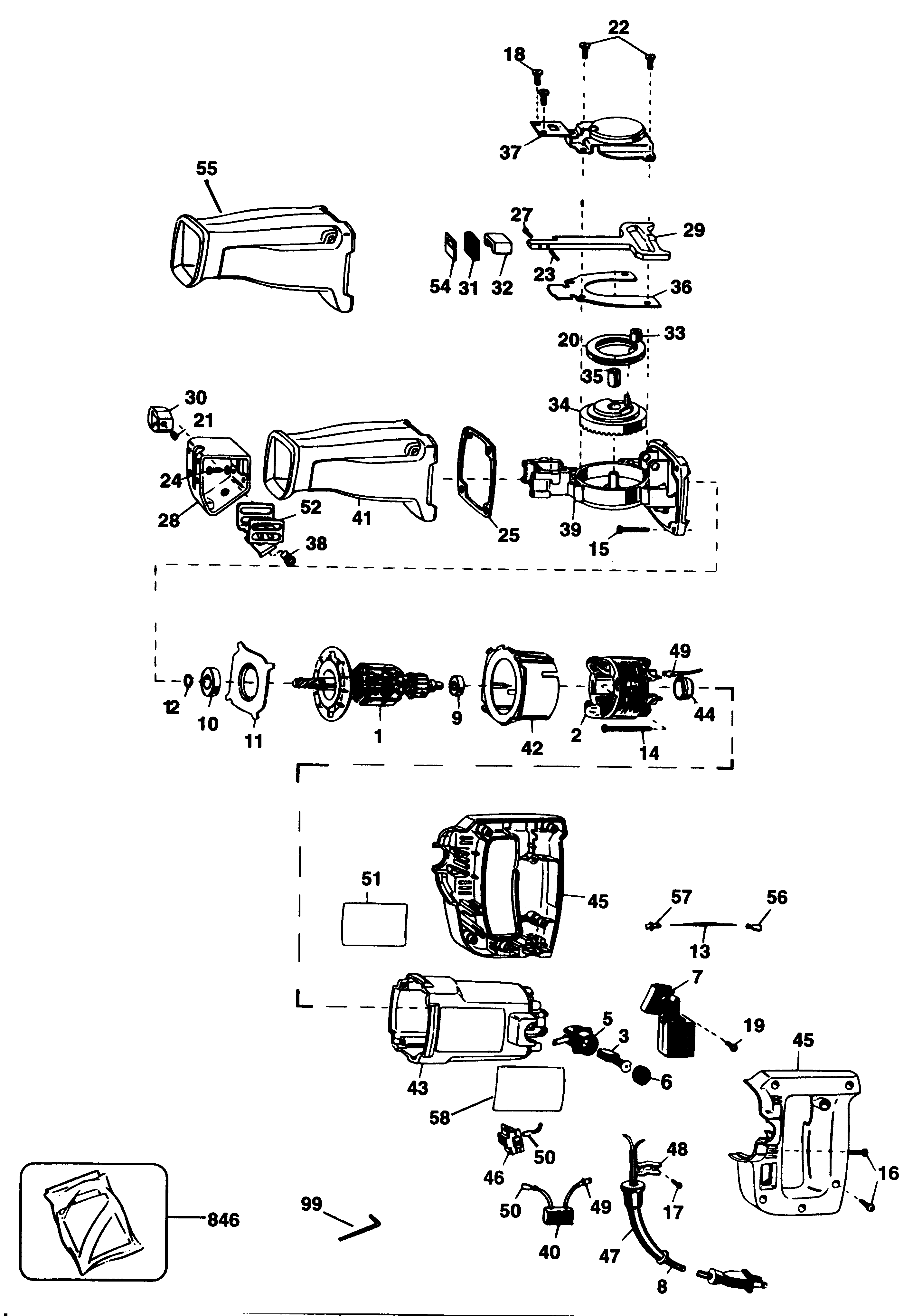

3103 CUTSAW Type 102 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448716-02 | 1 | ARMATURE | GB |  |
||
| 2 | 448719-77 | 1 | FIELD SA 230V | GB | |
||
| 3 | 450374-05 | 2 | BRUSH | GB | |
||
| 5 | 448083-01 | 2 | BRUSHBOX SA | GB |  |
||
| 6 | 448084-01 | 2 | BRUSH CAP | GB | |
||
| 7 | 130811-00 | 1 | SWITCH | GB | |
||
| 8 | 330060-24 | 1 | CORDSET | GB | |
||
| 9 | 605040-06 | 1 | BEARING,BALL | GB | |
||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 11 | 448079-00 | 1 | PLATE | GB | |
||
| 12 | 696060-00 | 1 | RETAINER | GB | |
||
| 13 | 146453-00 | 2 | CHOKE | GB | |
||
| 14 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | GB | |
|
| 15 | 330013-15 | 4 | SCREW | GB | |
||
| 16 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 17 | 330013-03 | 2 | SCREW | GB | |
||
| 18 | 158472-00 | 2 | SCREW | GB | |
||
| 19 | 330013-02 | 1 | SCREW | GB | |
||
| 20 | N401394 | 1 | RING | GB | |
||
| 21 | 099164-06 | 1 | SCREW.TEMP | GB | |
||
| 22 | 144457-02 | 1 | SCREW | GB | |
||
| 23 | 144434-00 | 1 | ROLLPIN | GB | |
||
| 24 | 142940-00 | 4 | SCREW | GB | |
||
| 25 | 146576-00 | 1 | GASKET | GB | |
||
| 27 | 158466-00 | 1 | PIN | GB | |
||
| 28 | 399725-00 | 1 | SHOE | DATE FROM 5295 | GB | |
|
| 28 | 399725-00 | 1 | SHOE | DATE UP TO 5295 | GB | |
|
| 29 | 679869-00 | 1 | SHAFT | GB | |
||
| 30 | 679868-00 | 1 | BLADE CLAMP | GB | |
||
| 32 | 450865-00 | 1 | BEARING | GB | |
||
| 33 | 385238-00 | 1 | BEARING NEEDLE | GB | |
||
| 34 | 448503-15 | 1 | GEAR | GB | |
||
| 35 | 135531-00 | 1 | BEARING | GB | |
||
| 36 | 143462-02 | 1 | PLATE | GB | |
||
| 37 | 448489-03 | 1 | PLATE | GB | |
||
| 38 | 099279-08 | 1 | SCREW | GB | |
||
| 39 | 449824-07 | 1 | GEARCASE | GB | |
||
| 41 | 448528-06 | 1 | COVER | GB | |
||
| 42 | 447786-00 | 1 | BAFFLE FAN | GB | |
||
| 43 | 447799-07 | 1 | FIELDCASE | GB | |
||
| 44 | 445217-02 | 1 | SLEEVE | GB | |
||
| 45 | 448722-02 | 1 | HANDLE & COVER | GB | |
||
| 46 | 144478-00 | 1 | SWITCH | GB | |
||
| 47 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 47 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 48 | 142519-00 | 1 | CABLE CLAMP | GB | |
||
| 49 | 448172-00 | 2 | TERMINAL | GB | |
||
| 51 | 144345-06 | 1 | RATING PLATE | GB | |||
| 52 | 157325-00 | 1 | GUARD | GB | |
||
| 55 | 450696-00 | 1 | BOOT | GB | |
||
| 56 | 135110-00 | 2 | TERMINAL | GB | |
||
| 57 | 146459-00 | 2 | TERMINAL | GB | |
||
| 58 | 450107-00 | 1 | LABEL | GB | |||
| 99 | 099056-08 | 1 | WRENCH SPECIAL | GB | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | GB | |
|
| 846 | 449817-00 | 1 | HOLDER | GB | |
