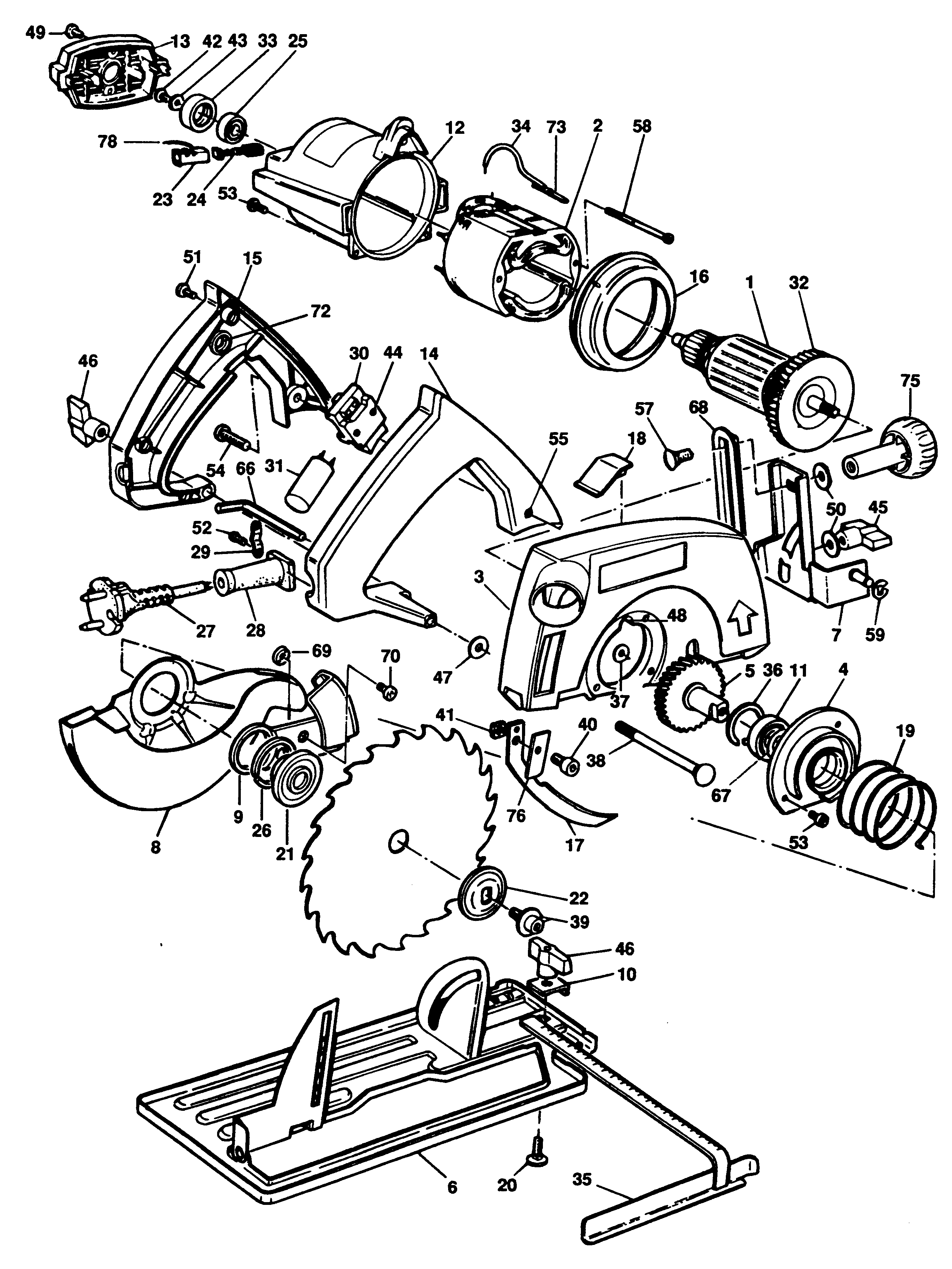

BD59 CIRC. SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 369454-13 | 1 | ARMATURE 230V | XJ |  |
||
| 2 | 373007-13 | 1 | FIELD 230V | BD59 DE (TY Y3) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 FR (TY Y3) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 CH (TY Y3) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 SL-HU (TY Y3) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 SL-HU (TY Y1-2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 FR (TY Y1-Y2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 DE (TY Y1-Y2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 CH (TY Y1-Y2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 GB (TY Y1-Y2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 DE (TY Y3) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 FR (TY Y3) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 CH (TY Y3) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 SL-HU (TY Y3) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 SL-HU (TY Y1-2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 FR (TY Y1-Y2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 DE (TY Y1-Y2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 CH (TY Y1-Y2) | XJ | |
|
| 2 | 373007-13 | 1 | FIELD 230V | BD59 GB (TY Y1-Y2) | XJ | |
|
| 3 | 324581-00 | 1 | GUARD | XJ | |
||
| 4 | 876522 | 1 | COVER GEARCASE | XJ | |
||
| 5 | 876542-01 | 1 | GEAR SA | XJ | |
||
| 6 | 879629 | 1 | SHOE | BD59 (TY Y3) | XJ | |
|
| 6 | 879629 | 1 | SHOE | BD59 (TY Y1-Y2) | XJ | |
|
| 6 | 327423-01 | 1 | SHOE SA | DN59 | XJ | |
|
| 7 | 327424-01 | 1 | ADJUSTER HEIGHT | BD59 (TY Y3) | XJ | |
|
| 7 | 327424-01 | 1 | ADJUSTER HEIGHT | BD59 (TY Y1-Y2) | XJ | |
|
| 8 | 327422-01 | 1 | GUARD | XJ | |
||
| 9 | 324596-02 | 1 | BRACKET | XJ | |
||
| 10 | 328233-01 | 1 | CLAMP | BD59 (TY Y3) | XJ | |
|
| 10 | 328233-01 | 1 | CLAMP | BD59 (TY Y1-Y2) | XJ | |
|
| 10 | 913718 | 1 | CLAMP | DN59 | XJ | |
|
| 11 | 915358 | 1 | BEARING | XJ | |
||
| 12 | 324857-00 | 1 | HOUSING | BD59 (TY Y3) | XJ | |
|
| 12 | 324857-00 | 1 | HOUSING | BD59 (TY Y1-Y2) | XJ | |
|
| 12 | 871903 | 1 | HOUSING | DN59 | XJ | |
|
| 13 | 325237-00 | 1 | END CAP | XJ | |
||
| 14 | 916983 | 1 | HANDLE RH | XJ | |
||
| 15 | 916982 | 1 | HANDLE LH | XJ | |
||
| 16 | 916128 | 1 | BAFFLE FAN | XJ | |
||
| 17 | 324499-00 | 1 | RIVING KNIFE | XJ | |
||
| 18 | 913745 | 1 | COVER | XJ | |
||
| 19 | 912748-00 | 1 | SPRING | XJ | |
||
| 20 | 911029 | 1 | SCREW | XJ | |
||
| 21 | 325174-00 | 1 | WASHER | XJ | |
||
| 22 | 911795 | 1 | FLANGE | XJ | |
||
| 23 | 878750 | 2 | BRUSH HOLDER | DN59 | XJ | |
|
| 23 | 878750 | 1 | BRUSH HOLDER | BD59 (TY Y1-Y2) | XJ | |
|
| 23 | 324826-00 | 2 | BRUSH & HOLDER 230V | BD59 (TY Y3) | XJ |  |
|
| 24 | 914633 | 2 | BRUSH | DN59 | XJ | |
|
| 24 | 914633 | 2 | BRUSH | BD59 (TY Y1-Y2) | XJ | |
|
| 25 | 330003-31 | 1 | BEARING | XJ | |
||
| 26 | 913784 | 1 | CIRCLIP | XJ | |
||
| 27 | 4688529 | 1 | CABLE PER METRE | BD59 GB (TY Y1-Y2) | XJ | |
|
| 27 | 324438-07 | 1 | CORDSET (EURO) | BD59 DE (TY Y3) | XJ | |
|
| 27 | 324438-07 | 1 | CORDSET (EURO) | BD59 FR (TY Y3) | XJ | |
|
| 27 | 324438-07 | 1 | CORDSET (EURO) | BD59 SL-HU (TY Y3) | XJ | |
|
| 27 | 324438-07 | 1 | CORDSET (EURO) | BD59 SL-HU (TY Y1-2) | XJ | |
|
| 27 | 324438-07 | 1 | CORDSET (EURO) | BD59 FR (TY Y1-Y2) | XJ | |
|
| 27 | 324438-57 | 1 | CORDSET | BD59 CH (TY Y3) | XJ | |
|
| 27 | 324438-57 | 1 | CORDSET | BD59 CH (TY Y1-Y2) | XJ | |
|
| 28 | 916968 | 1 | CORD PROTECTOR | BD59 CH (TY Y3) | XJ | |
|
| 28 | 916968 | 1 | CORD PROTECTOR | BD59 CH (TY Y1-Y2) | XJ | |
|
| 28 | 916969 | 1 | PROTECTOR | BD59 DE (TY Y3) | XJ | |
|
| 28 | 916969 | 1 | PROTECTOR | BD59 FR (TY Y3) | XJ | |
|
| 28 | 916969 | 1 | PROTECTOR | BD59 SL-HU (TY Y3) | XJ | |
|
| 28 | 916969 | 1 | PROTECTOR | BD59 SL-HU (TY Y1-2) | XJ | |
|
| 28 | 916969 | 1 | PROTECTOR | BD59 FR (TY Y1-Y2) | XJ | |
|
| 28 | 916969 | 1 | PROTECTOR | BD59 DE (TY Y1-Y2) | XJ | |
|
| 28 | 916969 | 1 | PROTECTOR | BD59 GB (TY Y1-Y2) | XJ | |
|
| 29 | 910556 | 1 | CABLE CLAMP | XJ | |
||
| 30 | 322001 | 1 | SWITCH | Lock-Off | BD59 DE (TY Y3) | XJ | |
| 30 | 322001 | 1 | SWITCH | Lock-Off | BD59 FR (TY Y3) | XJ | |
| 30 | 322001 | 1 | SWITCH | Lock-Off | BD59 CH (TY Y3) | XJ | |
| 30 | 322001 | 1 | SWITCH | Lock-Off | BD59 SL-HU (TY Y3) | XJ | |
| 30 | 322001 | 1 | SWITCH | Lock-Off | BD59 FR (TY Y1-Y2) | XJ | |
| 30 | 742884 | 1 | SWITCH P3703 | BD59 SL-HU (TY Y1-2) | XJ | |
|
| 30 | 322001 | 1 | SWITCH | Lock-Off | BD59 DE (TY Y1-Y2) | XJ | |
| 30 | 322001 | 1 | SWITCH | Lock-Off | BD59 CH (TY Y1-Y2) | XJ | |
| 30 | 322001 | 1 | SWITCH | Lock-Off | BD59 GB (TY Y1-Y2) | XJ | |
| 31 | 321384 | 1 | CAPACITOR | XJ | |
||
| 33 | 911897 | 1 | HOLDER | XJ | |
||
| 34 | 580235-00 | 2 | LEADWIRE | XJ | |
||
| 35 | 321561 | 1 | FENCE | XJ | |
||
| 36 | 911332 | 1 | RING | BD59 (TY Y3) | XJ | |
|
| 36 | 911332 | 1 | RING | BD59 (TY Y1-Y2) | XJ | |
|
| 36 | 915033 | 1 | RING | DN59 | XJ | |
|
| 37 | 910560 | 1 | BEARING | XJ | |
||
| 38 | 911335 | 1 | SCREW | XJ | |
||
| 39 | 911278 | 1 | SCREW | XJ | |
||
| 40 | 725181 | 1 | SCREW | BD59 (TY Y3) | XJ | |
|
| 40 | 911278 | 1 | SCREW | DN59 | XJ | |
|
| 40 | 911278 | 1 | SCREW | BD59 (TY Y1-Y2) | XJ | |
|
| 41 | 914079 | 1 | NUT | XJ | |
||
| 42 | 725169 | 1 | SCREW | BD59 (TY Y3) | XJ | ||
| 42 | 911276 | 1 | SCREW | DN59 | XJ | |
|
| 42 | 911276 | 1 | SCREW | BD59 (TY Y1-Y2) | XJ | |
|
| 43 | 330016-01 | 1 | WASHER | DN59 | XJ | |
|
| 43 | 330016-01 | 1 | WASHER | BD59 (TY Y1-Y2) | XJ | |
|
| 43 | 725165 | 1 | WASHER | BD59 (TY Y3) | XJ | |
|
| 44 | 911026 | 4 | SCREW | XJ | |
||
| 45 | 911102 | 1 | NUT WING | XJ | |
||
| 46 | 915848 | 2 | NUT WING | XJ | |
||
| 47 | 478905-00 | 1 | WING NUT | XJ | |
||
| 48 | 330004-07 | 1 | BEARING NEEDLE | XJ | |||
| 49 | 894748 | 2 | O RING | XJ | |
||
| 50 | 249092-20 | 2 | WASHER | XJ | |
||
| 51 | 911060 | 3 | SCREW | XJ | |
||
| 52 | 911059 | 2 | SCREW | XJ | |
||
| 53 | 725198 | 5 | SCREW | XJ | |
||
| 54 | 911233 | 1 | SCREW | XJ | |
||
| 55 | 911092 | 1 | NUT | XJ | |
||
| 57 | 860301-00 | 1 | SCREW | XJ | |
||
| 58 | 916231 | 2 | SCREW | XJ | |
||
| 59 | 911273 | 1 | CLIP | XJ | |
||
| 66 | 098000-11 | 1 | HEX KEY | XJ | |
||
| 67 | 910623 | 1 | WASHER | XJ | |
||
| 68 | 917101 | 1 | INSERT | XJ | |
||
| 69 | 911644 | 1 | STOP RUBBER | XJ | |
||
| 70 | 911141 | 1 | SCREW | XJ | |
||
| 72 | 916935 | 1 | PLUG | BD59 SL-HU (TY Y1-2) | XJ | ||
| 72 | 916935 | 1 | PLUG | BD59 DE (TY Y1-Y2) | XJ | ||
| 72 | 916935 | 1 | PLUG | BD59 CH (TY Y1-Y2) | XJ | ||
| 72 | 916935 | 1 | PLUG | BD59 GB (TY Y1-Y2) | XJ | ||
| 73 | 916193-01 | 2 | SLEEVE | XJ | |
||
| 76 | 324483-00 | 1 | PLATE | BD59 (TY Y3) | XJ | |
|
| 78 | 323768-09 | 2 | LEAD SA | BD59 (TY Y3) | XJ | |
