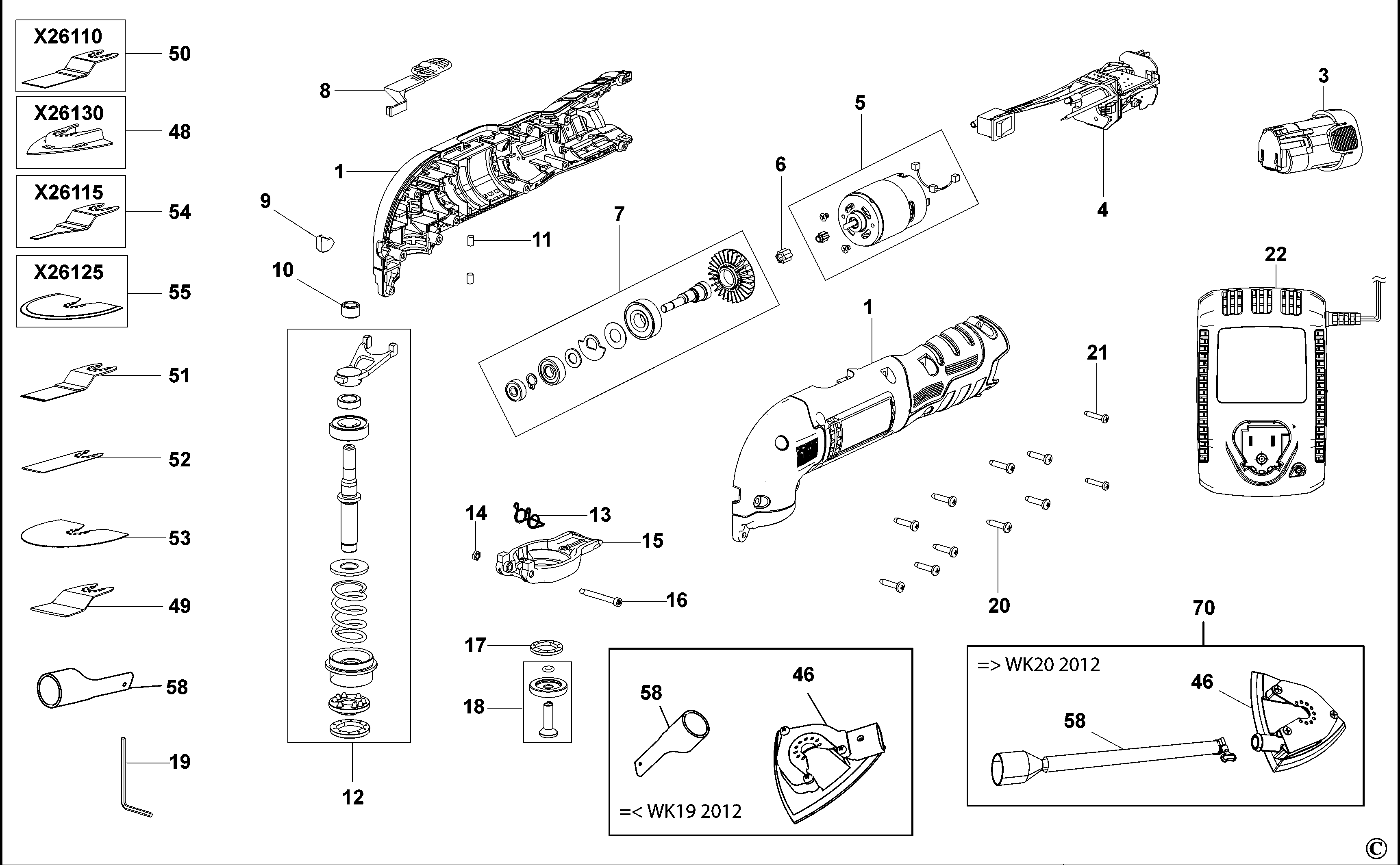

HPL108 OSCILLATING TOOL Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004556-00 | 1 | HOUSING | GB |  |
||
| 3 | N506467 | 1 | BATTERY 10.8V - 1.5AH - 16.2WH | Li-Ion - BL1510 | GB | |
|
| 3 | 90616675 | 1 | BATTERY 10.8V - 1.5AH - 16.2WH | BL1310-XJ - Li-ion | GB | |
|
| 3 | 90551123-01 | 1 | BATTERY 10.8V - 1.3AH | BL1310-XJ - Li-ion | GB | ||
| 4 | 1004556-01 | 1 | PCB SA | GB | |
||
| 5 | 1004556-02 | 1 | MOTOR SA | GB | |
||
| 6 | 5140109-89 | 1 | CONNECTOR | Spring connector | GB | |
|
| 7 | 5140109-90 | 1 | SHAFT SA | GB | |
||
| 8 | 5140109-91 | 1 | ACTUATOR | GB | |
||
| 9 | 5140109-92 | 1 | COVER | LED Cover | GB | |
|
| 10 | 5140109-93 | 1 | BEARING | Oil Impregnated | GB | |
|
| 11 | 5140109-94 | 2 | RUBBER STRIP | Rubber Stick | GB | |
|
| 12 | 5140109-95 | 1 | SPINDLE | GB | |
||
| 13 | 5140108-86 | 1 | SPRING | GB | |
||
| 14 | 5140108-89 | 1 | NUT | GB | |
||
| 15 | 5140108-88 | 1 | SPANNER | GB | |
||
| 16 | 5140108-87 | 1 | SCREW | GB | |
||
| 17 | 1004556-03 | 1 | ADAPTOR | GB | |
||
| 18 | 1004556-04 | 1 | SCREW | GB | |
||
| 19 | 1004556-05 | 1 | SPANNER | GB | |
||
| 20 | 5140109-85 | 9 | SCREW | GB | |
||
| 21 | 5140109-97 | 2 | SCREW | GB | |
||
| 22 | 90559983 | 1 | CHARGER SA | GB | |
||
| 46 | 6010352-13 | 1 | PLATEN | => WK 20 2012 | GB | |
|
| 46 | 1004683-30 | 1 | HEAD SA | =< WK 19 2012 | GB | |
|
| 48 | 1004556-08 | 1 | BLADE | X26130 | GB | |
|
| 49 | 5140109-96 | 1 | BLADE | GB | |
||
| 50 | 1004556-09 | 1 | BLADE | X26110 | GB | |
|
| 51 | 5140109-24 | 1 | BLADE | Precision Cut (HCS) | GB | |
|
| 52 | 5140109-25 | 1 | BLADE | GB | |
||
| 53 | 5140109-26 | 1 | BLADE | (HSS) | GB | |
|
| 54 | 1004556-10 | 1 | BLADE | X26115 | GB | |
|
| 55 | 1004556-11 | 1 | BLADE | X26125 | GB | |
|
| 58 | 6010352-14 | 1 | HOSE SA | => WK 20 2012 | GB | |
|
| 58 | 1004556-07 | 1 | VACUUM ADAPTOR | =< WK 19 2012 | GB | |
|
| 70 | 1004683-30 | 1 | HEAD SA | GB | |
