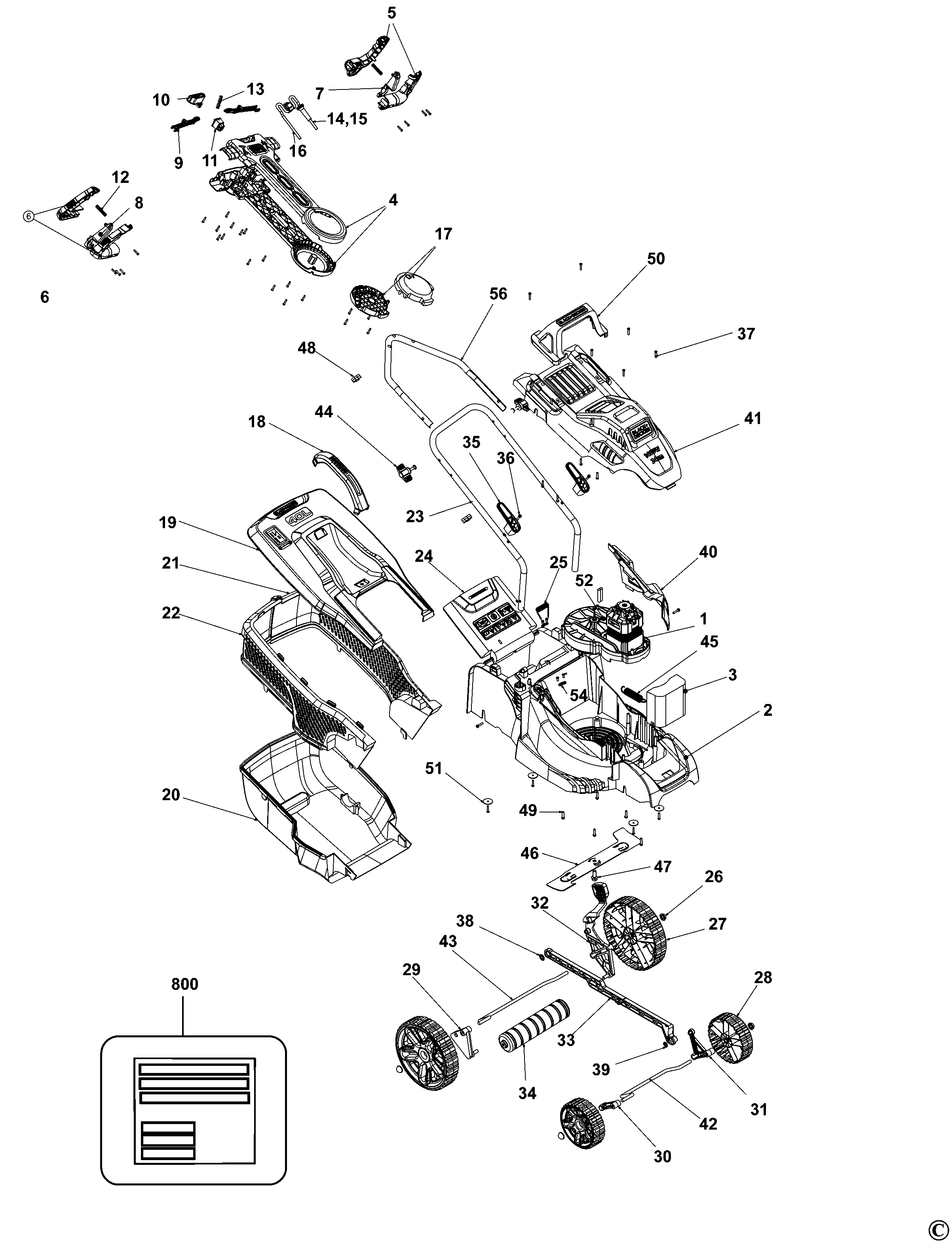

BDMOW1400 MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N586332 | 1 | TRANSMISSION SA | GB | |||
| 2 | N518522 | 1 | BASE | GB |  |
||
| 3 | N547145 | 1 | WEIGHT | GB | |
||
| 4 | N549268 | 1 | HOUSING SWITCH | GB | |
||
| 5 | N549271 | 1 | HANDLE LH | GB | |
||
| 6 | N549272 | 1 | HANDLE RH | GB | |
||
| 7 | N528681 | 1 | TRIGGER | LEFT | GB | |
|
| 8 | N528682 | 1 | TRIGGER | RIGHT | GB | |
|
| 9 | N529479 | 2 | LINK | GB | |
||
| 10 | N529480 | 1 | BUTTON LOCK-OFF | GB | |
||
| 11 | 90562582 | 1 | SWITCH | GB | |
||
| 12 | N549280 | 1 | SPRING | GB | |
||
| 13 | N568719 | 1 | SPRING | GB | |
||
| 15 | 90580223 | 1 | CORDSET | GB | |
||
| 16 | N549261 | 1 | CABLE | GB | |
||
| 17 | N549399 | 2 | HOUSING | GB | |
||
| 18 | 90567333 | 1 | HANDLE | GB | |
||
| 19 | N550117 | 1 | COVER | GB |  |
||
| 20 | N572320 | 1 | GRASSBOX | GB | |
||
| 21 | 90567929 | 1 | GRASSBOX LEFT | GB | |
||
| 22 | 90567930 | 1 | GRASSBOX RIGHT | GB | |
||
| 23 | N530346 | 2 | TUBE LOWER | GB | |
||
| 24 | 90566433-02 | 1 | GRASSFLAP | GB | |
||
| 25 | N564205 | 1 | SPRING TORSION | GB | |
||
| 26 | 90574276 | 4 | WASHER LOCK | GB | |
||
| 27 | N525968 | 2 | WHEEL | GB | |
||
| 28 | N525967 | 2 | WHEEL FRONT | GB | |
||
| 29 | 90561676-01 | 1 | BRACKET | GB | |
||
| 30 | 90561653 | 1 | BRACKET | GB | |
||
| 31 | 90561677 | 1 | BRACKET | GB | |
||
| 32 | 90567592-02 | 1 | LEVER | GB | |
||
| 33 | 90562576 | 1 | LEVER | GB | |
||
| 34 | 90560648 | 1 | ROLLER | GB | |
||
| 35 | 90571019-01 | 2 | CLIP CABLE | GB | |
||
| 36 | 90589823 | 2 | SCREW | GB | |
||
| 37 | 747329 | 18 | SCREW | GB | |
||
| 38 | 90579432 | 2 | WASHER LOCK | GB | |
||
| 39 | 90579431 | 2 | WASHER LOCK | GB | |
||
| 40 | 90565736 | 1 | COVER | GB | |
||
| 41 | N546825 | 1 | COVER SA | GB | |
||
| 42 | 90561652 | 1 | AXLE FRONT | GB | |
||
| 43 | 90561606 | 1 | AXLE REAR | GB | |
||
| 44 | N548691 | 1 | NUT PACK | GB | |
||
| 45 | 90569681 | 1 | SPRING | GB | |
||
| 46 | N520726 | 1 | BLADE | GB | |
||
| 47 | 90516533 | 1 | BOLT | GB | |
||
| 48 | 90571653 | 1 | CLAMP | GB | |
||
| 49 | 330019-13 | 5 | SCREW | M4X19 T20 | GB | |
|
| 50 | N525936 | 1 | HANDLE | GB | |
||
| 51 | 90573272 | 4 | WASHER | GB | |
||
| 52 | 90606208 | 1 | TUBE | TUBE, SHRINKABLE | GB | |
|
| 54 | 821070 | 2 | CORD CLAMP | GB | |
||
| 56 | N528692 | 1 | TUBE | GB | |
