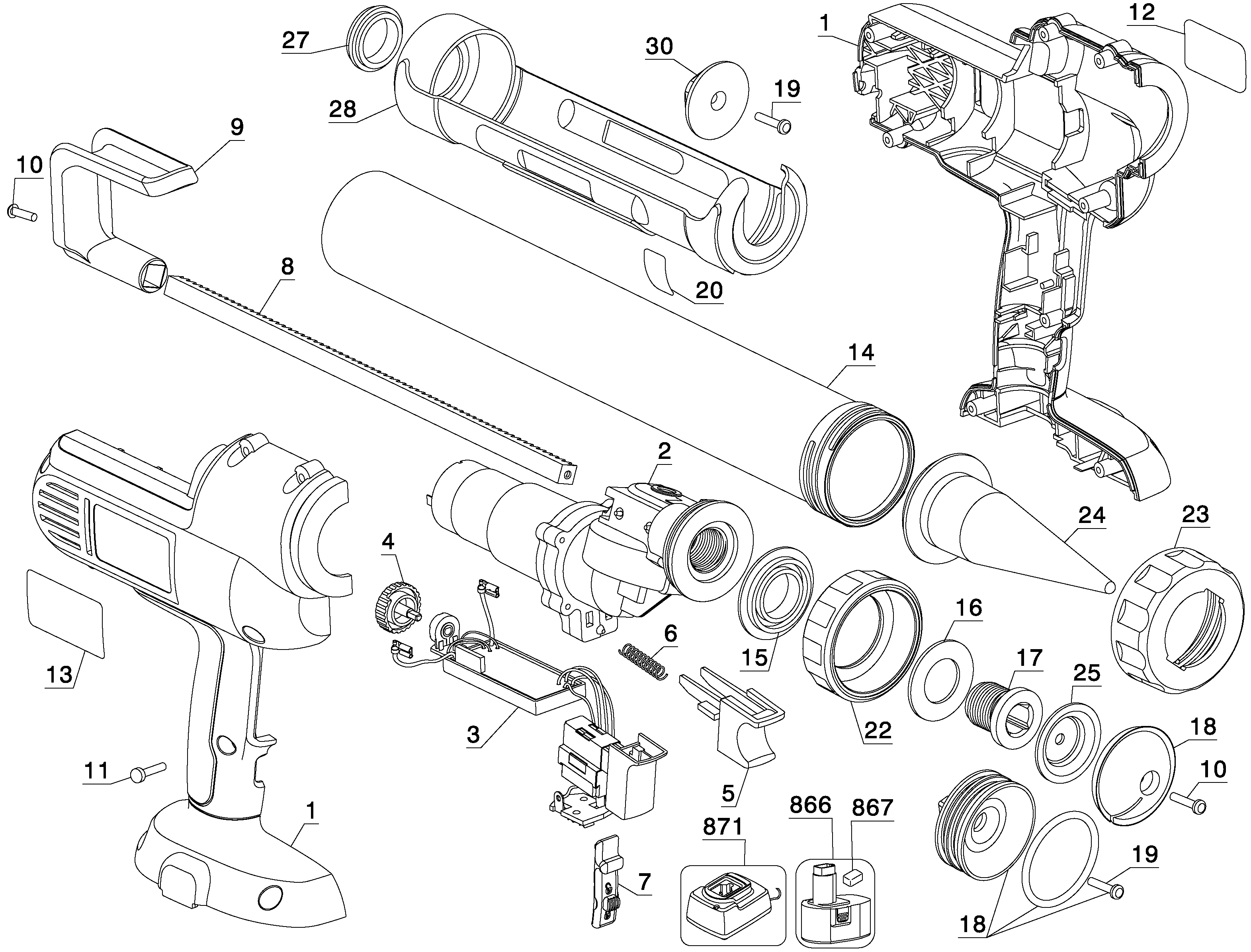

DC542 CAULK GUN Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N082382 | 1 | REPAIR KIT | 12V | Incl.1,3,7,12,13,21(Con.Type 2) | XJ |  |
| 1 | 636610-00 | 1 | CLAMSHELL SET | 12V | XJ |  |
|
| 2 | 639717-00 | 1 | MOTOR & GEARCASE | XJ | |
||
| 3 | N082382 | 1 | REPAIR KIT | 12V | Incl.1,3,7,12,13,21(Con.Type 2) | XJ | |
| 3 | 642411-00 | 1 | PCB CONTROLLER | XJ | |
||
| 4 | 639011-00 | 1 | SPEED REGULATOR | XJ | |
||
| 5 | 636615-00 | 1 | TRIGGER | XJ | |
||
| 6 | 642413-00 | 1 | SPRING | XJ | |
||
| 7 | 636614-00 | 1 | SWITCH LOCK OFF | XJ | |
||
| 7 | N082382 | 1 | REPAIR KIT | 12V | Incl.1,3,7,12,13,21(Con.Type 2) | XJ | |
| 8 | 642410-00 | 1 | PUSHROD | 310 ml | XJ | |
|
| 8 | 642408-00 | 1 | PUSHROD | XJ | |
||
| 9 | 639061-00 | 1 | HANDLE | XJ | |
||
| 10 | 642474-00 | 2 | SCREW | XJ | |
||
| 11 | 330019-04 | 8 | SCREW | XJ | |
||
| 12 | 642732-00 | 1 | IDENTITY LABEL | XJ | |
||
| 13 | 650057-00 | 1 | RATING PLATE | EURO | XJ | |
|
| 14 | 637898-00 | 1 | TUBE SA | Incl. 10,15, 16,17,22-24 | XJ | |
|
| 15 | 640340-00 | 1 | SPACER | XJ | |
||
| 16 | 640827-00 | 1 | WASHER | XJ | |
||
| 17 | 641739-00 | 1 | LOCK SCREW | XJ | |
||
| 18 | 659569-00 | 1 | SERVICE KIT | DCE5801 | before date code 200816 | XJ | |
| 19 | 642414-00 | 2 | SCREW | XJ | |
||
| 20 | 648980-00 | 1 | WARNING LABEL | 310 ml | XJ | |
|
| 22 | 637649-00 | 1 | END CAP | XJ | |
||
| 23 | 637651-00 | 1 | CAP | XJ | |||
| 24 | 637653-00 | 1 | NOZZLE | XJ | |
||
| 25 | 659569-00 | 1 | SERVICE KIT | DCE5801 | before date code 200816 | XJ | |
| 27 | 640207-00 | 1 | SPACER | XJ | |
||
| 28 | 637823-00 | 1 | TUBE SUPPORT | XJ | |
||
| 30 | 639729-00 | 1 | PLUNGER | XJ | |
||
| 866 | DE9501 | 1 | BATTERY 12V - 2.6AH | NiMH - RoHS | Not Included w/unit | XJ | |
| 867 | 645221-00 | 1 | CAP | Not Included w/unit | XJ | |
|
| 871 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | Not Included w/unit | XJ | |
| 999 | 5140202-54 | 1 | LEVER KIT | LEVER FOR ITEM NUMBER 2 | XJ | |
