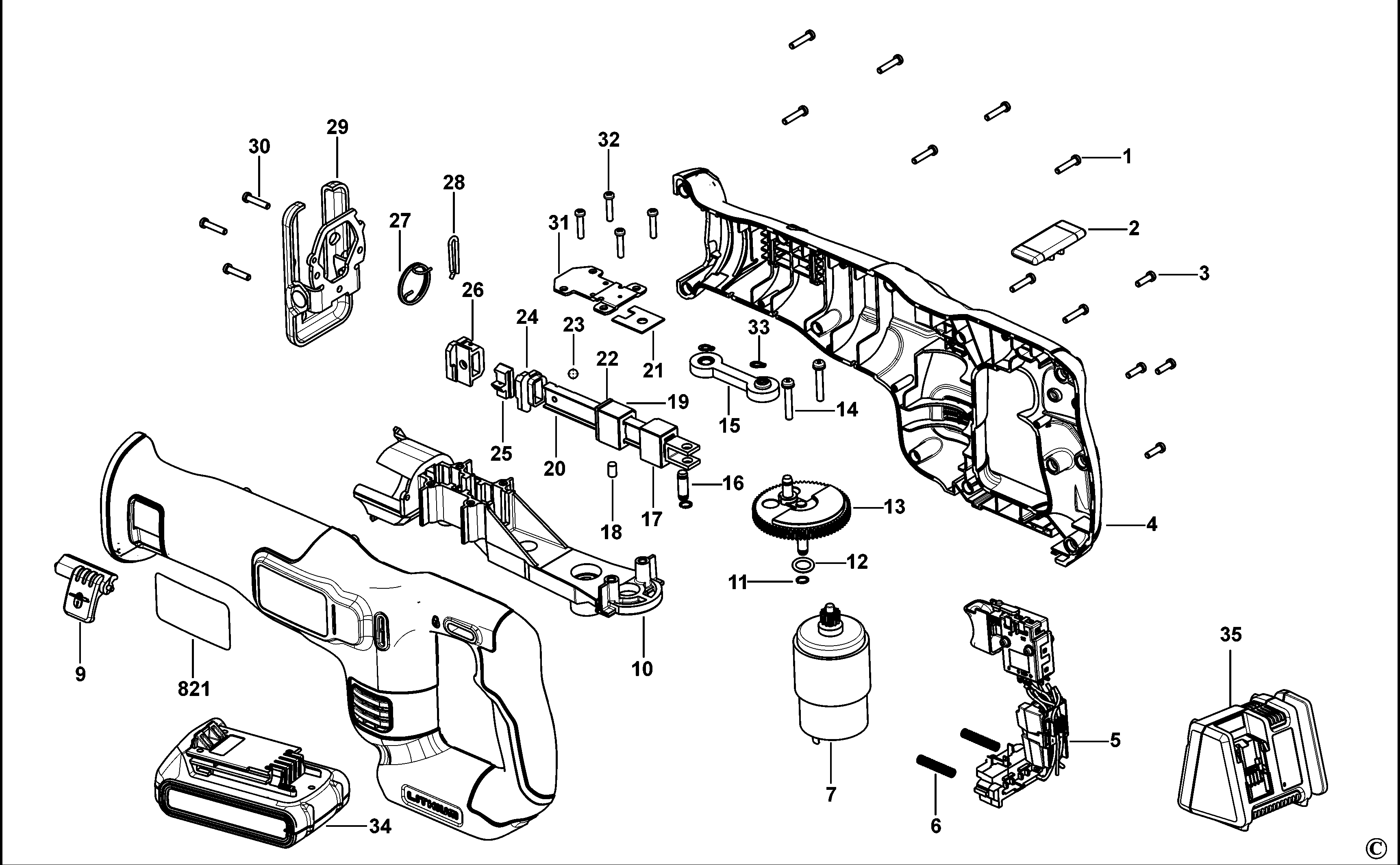

BDCR18 RECIPROCATING SAW Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 497283-01 | 8 | SCREW | GB |  |
||
| 2 | 90591822 | 1 | ACTUATOR | GB | |
||
| 3 | 486563-00 | 4 | SCREW | GB | |
||
| 4 | 90591332N | 1 | CLAMSHELL | GB | |
||
| 5 | 90612185 | 1 | SWITCH SA | GB | |
||
| 5 | 90612185 | 1 | SWITCH SA | GB | |
||
| 6 | 5100035-03 | 2 | SPRING | GB | |
||
| 7 | 90533876 | 1 | MOTOR & PINION | GB | |||
| 9 | 90593644 | 1 | LEVER SA | GB | |
||
| 10 | 90591337 | 1 | GEARCASE SA | GB | |||
| 11 | 498946-00 | 1 | CIRCLIP | GB | |
||
| 12 | 498945-00 | 1 | WASHER | GB |  |
||
| 13 | 90533879 | 1 | GEAR & PINION SA | GB | |||
| 14 | 498974-00 | 2 | SCREW | GB | |
||
| 15 | 90533883 | 1 | CON ROD SA | GB | |||
| 16 | 498918-40 | 1 | SHAFT | GB | |
||
| 17 | 90538467 | 1 | SLEEVE BEARING | GB | |
||
| 18 | 498972-00 | 1 | PLUG | GB | |
||
| 19 | 90538466 | 1 | SLEEVE BEARING | GB | |
||
| 20 | 90536386 | 1 | BEAM | GB | |
||
| 21 | 499574-00 | 1 | INSULATOR | GB | |
||
| 22 | 499687-00 | 1 | DAMPER | GB | |||
| 23 | 000903-00 | 1 | BALL | GB | |
||
| 24 | 498563-01 | 1 | COLLAR | GB | |
||
| 25 | 498561-01 | 2 | SLIDER | GB | |
||
| 26 | 498565-31 | 1 | COLLAR | GB | |
||
| 27 | 498567-00 | 1 | SPRING | GB | |
||
| 28 | 498566-00 | 2 | LOCKING PIN | GB | |
||
| 29 | 498755-03 | 1 | SHOE SA | GB | |
||
| 30 | 497283-01 | 3 | SCREW | GB | |
||
| 31 | 90533069 | 1 | RETAINING PLATE | GB | |
||
| 32 | 497283-01 | 4 | SCREW | GB | |
||
| 33 | 498946-00 | 2 | CIRCLIP | GB | |
||
| 34 | N703441 | 1 | BATTERY 18V - 1.5AH - 27WH | Li-Ion - BL1518 | BDCR18C1 | GB | |
| 35 | N494099 | 1 | CHARGER SA | 0.4A | BDCR18C1 | GB | |
