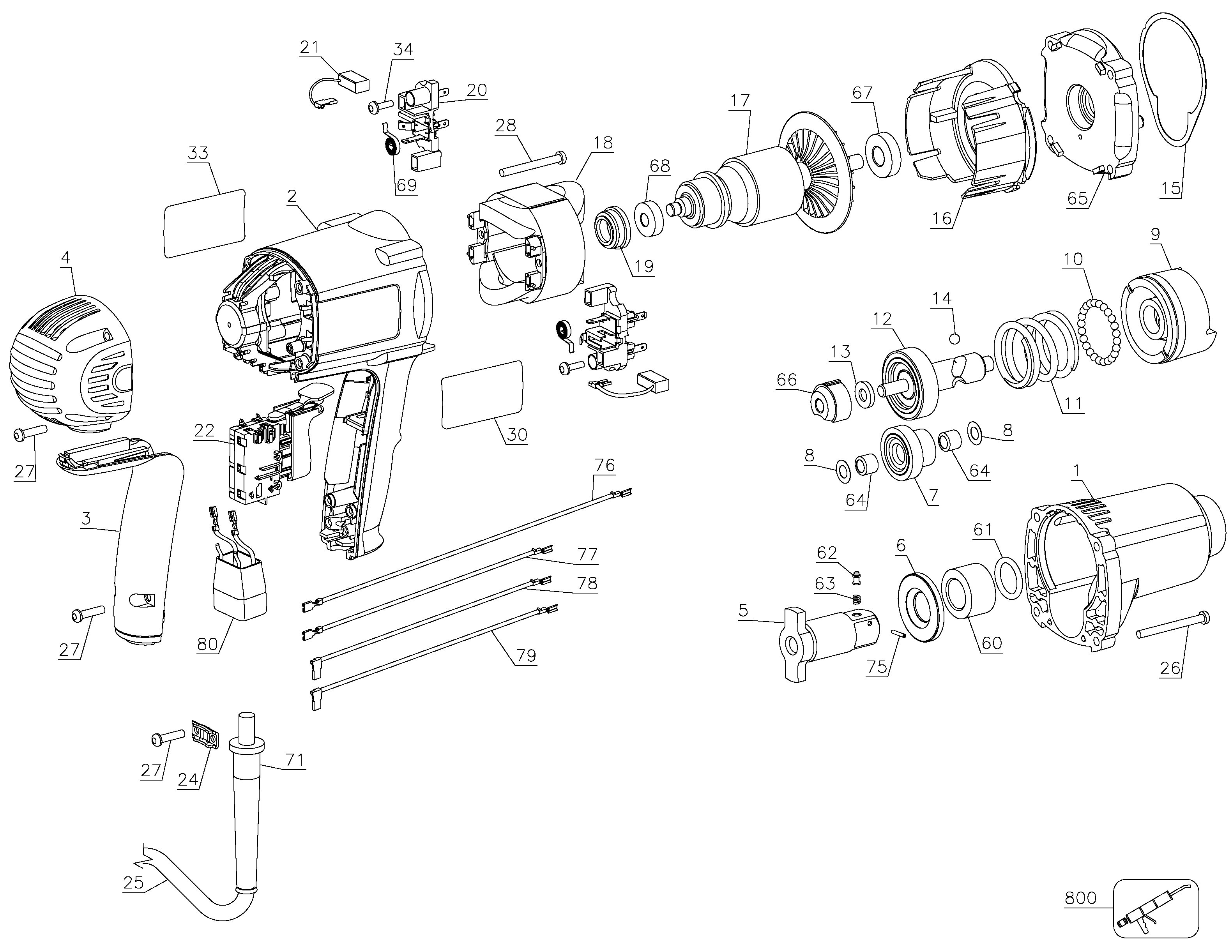

DW292 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N822135 | 1 | GEARCASE SA | PKGD 616822-00 | Incl. 60,61 | LX |  |
| 2 | 616828-05 | 1 | FIELDCASE | LX | |
||
| 3 | 616829-01 | 1 | HANDLE COVER | LX | |
||
| 4 | 616830-00 | 1 | END CAP | LX | |
||
| 5 | 627238-00SV | 1 | ANVIL ASSEMBLY | Incl. 62,63,75 | LX | |
|
| 6 | 616859-00 | 1 | WASHER THRUST | LX | |
||
| 7 | 135093-01SV | 1 | GEAR & PINION | LX | |
||
| 8 | 135089-00 | 2 | WASHER | LX | |
||
| 9 | 628129-00 | 1 | IMPACTOR | LX | |
||
| 10 | 000475-00 | 25 | BALL STEEL | LX | |
||
| 11 | 618843-00 | 1 | SPRING | LX | |
||
| 12 | 659923-00SV | 1 | GEAR & CAM SA | LX | |
||
| 13 | 450667-00 | 1 | WASHER | LX |  |
||
| 14 | 618844-00 | 2 | BALL STEEL | 1/4 INCH | LX | |
|
| 15 | 616847-00 | 1 | GASKET | LX | |
||
| 16 | 655537-00 | 1 | BAFFLE FAN | LX | |
||
| 17 | 658751-00SV | 1 | ARMATURE 115V | LX | |
||
| 18 | 617862-00SV | 1 | FIELD 115V | LX | |
||
| 19 | 445217-01 | 1 | SLEEVE | LX | |
||
| 20 | 616857-00 | 2 | BRUSH HOLDER | LX | |
||
| 21 | 617848-03 | 2 | BRUSH 230V | LX | |
||
| 22 | 616849-00 | 1 | SWITCH | LX | |
||
| 24 | 450877-00 | 1 | CORD CLAMP | LX | |
||
| 25 | 330061-10 | 1 | CORDSET (M/PLUG) | LX | |
||
| 26 | 330019-18 | 4 | SCREW | M4.55 x 50 PLASTIC THD FMG | LX | |
|
| 27 | 330019-13 | 8 | SCREW | M4X19 T20 | LX | |
|
| 28 | 330019-17 | 2 | SCREW | LX | |
||
| 30 | N031299 | 1 | RATING PLATE | LX | |
||
| 33 | 605523-00 | 1 | IDENTITY LABEL | LX | |
||
| 34 | 176951-00 | 2 | SCREW | LX | |
||
| 60 | N863052 | 1 | SERVICE KIT | INCL. SEAL | LX | |
|
| 61 | N863052 | 1 | SERVICE KIT | INCL. SEAL | LX | |
|
| 62 | N020802 | 1 | DETENT | LX | |
||
| 63 | 038769-00 | 1 | SPRING | LX | |
||
| 64 | 330004-02 | 2 | BEARING NEEDLE | LX | |
||
| 65 | 616823-00SV | 1 | GEARCASE COVER SA | Incl. 66,67 | LX | |
|
| 66 | 616841-00 | 1 | BEARING BLOCK | LX | |
||
| 67 | 616823-00SV | 1 | GEARCASE COVER SA | LX | |
||
| 68 | 330003-04 | 1 | BEARING | LX | |||
| 69 | 383387-00 | 2 | BRUSH SPRING | LX | |
||
| 71 | 148809-00 | 1 | CORD PROTECTOR | NPP | LX | |
|
| 75 | 099205-07 | 1 | ROLL PIN | LX | |
||
| 76 | 616852-00 | 1 | LEAD BLUE | BLUE | LX | |
|
| 77 | 616852-01 | 1 | LEAD WHITE | WHITE | LX | |
|
| 78 | 616852-02 | 1 | LEAD BLACK | BLACK, 18GA | LX | |
|
| 79 | 616852-03 | 1 | LEAD RED | RED | LX | |
|
| 80 | 623976-00 | 1 | FILTER | LX | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | LX | |
|
| 836 | 233804-32 | 1 | SERVICE TOOL | 626571-00 | FOR ARMATURE FAN END BRG. | LX |
