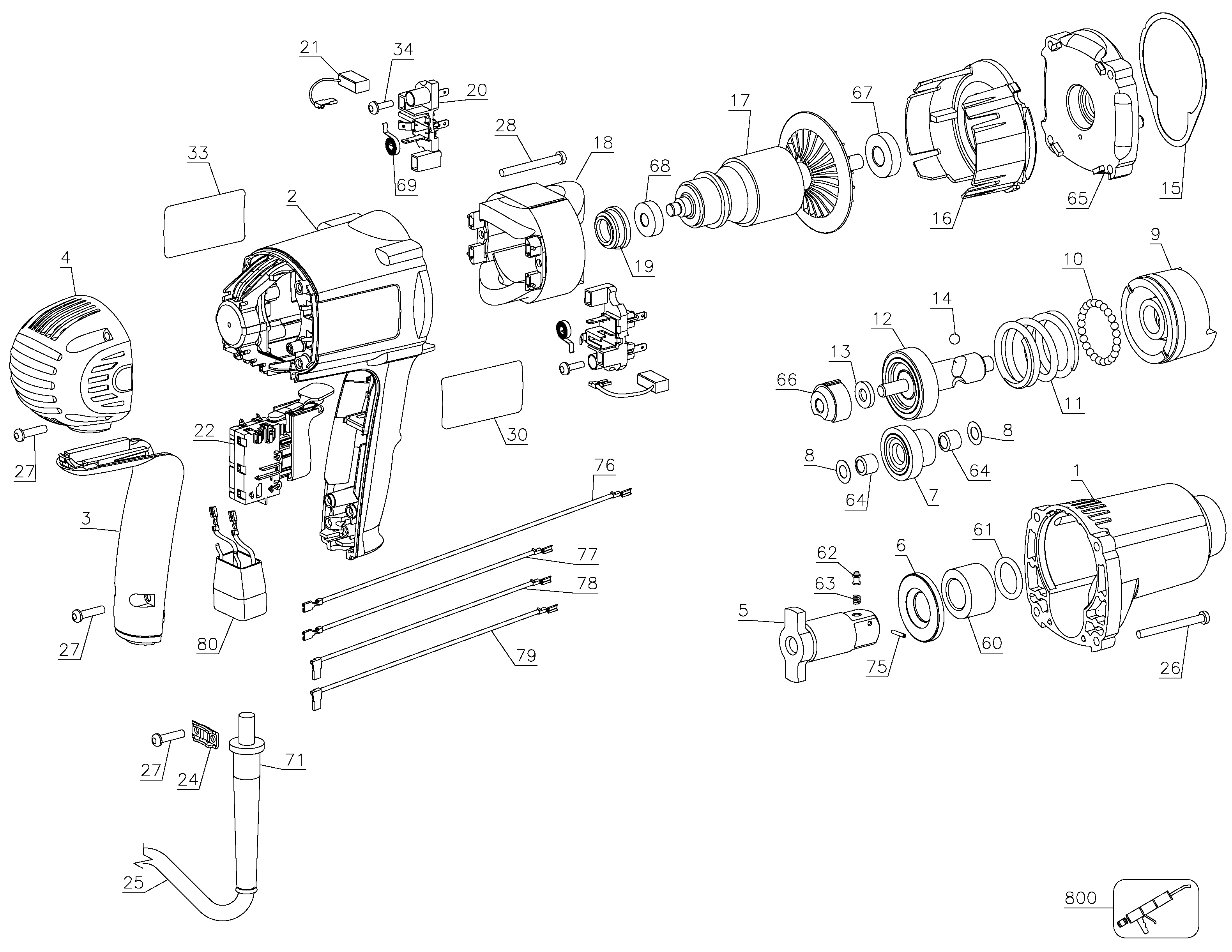

DW294 3/4 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 621136-00 | 1 | GEARCASE SA | INC. 60,61 | GB |  |
|
| 2 | 616828-05 | 1 | FIELDCASE | GB | |
||
| 3 | 616829-01 | 1 | HANDLE COVER | GB | |
||
| 4 | 616830-00 | 1 | END CAP | GB | |
||
| 5 | 621005-00SV | 1 | ANVIL ASSEMBLY | INC. 62,63,75 | GB | |
|
| 6 | 621046-00 | 1 | WASHER THRUST | GB | |
||
| 7 | 135093-01SV | 1 | GEAR & PINION | GB | |
||
| 8 | 135089-00 | 2 | WASHER | GB | |
||
| 9 | 628129-00 | 1 | IMPACTOR | GB | |
||
| 10 | 000475-00 | 25 | BALL STEEL | GB | |
||
| 11 | 618843-00 | 1 | SPRING | GB | |
||
| 12 | 659923-00SV | 1 | GEAR & CAM SA | GB | |
||
| 13 | 450667-00 | 1 | WASHER | GB |  |
||
| 14 | 618844-00 | 2 | BALL STEEL | 1/4 INCH | GB | |
|
| 15 | 616847-00 | 1 | GASKET | GB | |
||
| 16 | 655537-00 | 1 | BAFFLE FAN | GB | |
||
| 17 | 5140071-79 | 1 | ARMATURE KIT 220 | 230V | GB | |
|
| 18 | 617862-01SV | 1 | FIELD | 230v | GB | |
|
| 19 | 445217-01 | 1 | SLEEVE | GB | |
||
| 20 | 616857-00 | 2 | BRUSH HOLDER | GB | |
||
| 21 | 617848-03 | 2 | BRUSH 230V | GB | |
||
| 22 | 616849-00 | 1 | SWITCH | GB | |
||
| 24 | 450877-00 | 1 | CORD CLAMP | GB | |
||
| 25 | 330060-44 | 1 | CORDSET (M/PLUG) | GB | |
||
| 26 | 330019-18 | 4 | SCREW | M4.55 x 50 PLASTIC THD FMG | GB | |
|
| 27 | 330019-13 | 8 | SCREW | M4X19 T20 | GB | |
|
| 28 | 330019-17 | 2 | SCREW | GB | |
||
| 30 | N031301 | 1 | RATING PLATE | DW294-GB TYPE1 | GB | |
|
| 33 | 605523-00 | 1 | IDENTITY LABEL | GB | |
||
| 34 | 176951-00 | 2 | SCREW | GB | |
||
| 60 | 619367-00 | 1 | SLEEVE | GB | |
||
| 61 | 621128-00 | 1 | O RING | GB | |
||
| 62 | N020802 | 1 | DETENT | GB | |
||
| 63 | 038769-00 | 1 | SPRING | GB | |
||
| 64 | 330004-02 | 2 | BEARING NEEDLE | GB | |
||
| 65 | 616823-00SV | 1 | GEARCASE COVER SA | Incl. 66,67 | GB | |
|
| 66 | 616841-00 | 1 | BEARING BLOCK | GB | |
||
| 67 | 616823-00SV | 1 | GEARCASE COVER SA | GB | |
||
| 68 | 330003-04 | 1 | BEARING | GB | |||
| 69 | 383387-00 | 2 | BRUSH SPRING | GB | |
||
| 71 | 148809-00 | 1 | CORD PROTECTOR | NPP | GB | |
|
| 75 | 046376-00 | 1 | PIN | GB | |
||
| 76 | 616852-00 | 1 | LEAD BLUE | BLUE | GB | |
|
| 77 | 616852-01 | 1 | LEAD WHITE | WHITE | GB | |
|
| 78 | 616852-02 | 1 | LEAD BLACK | BLACK, 18GA | GB | |
|
| 79 | 616852-03 | 1 | LEAD RED | RED | GB | |
|
| 80 | 623976-00 | 1 | FILTER | GB | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | GB | |
