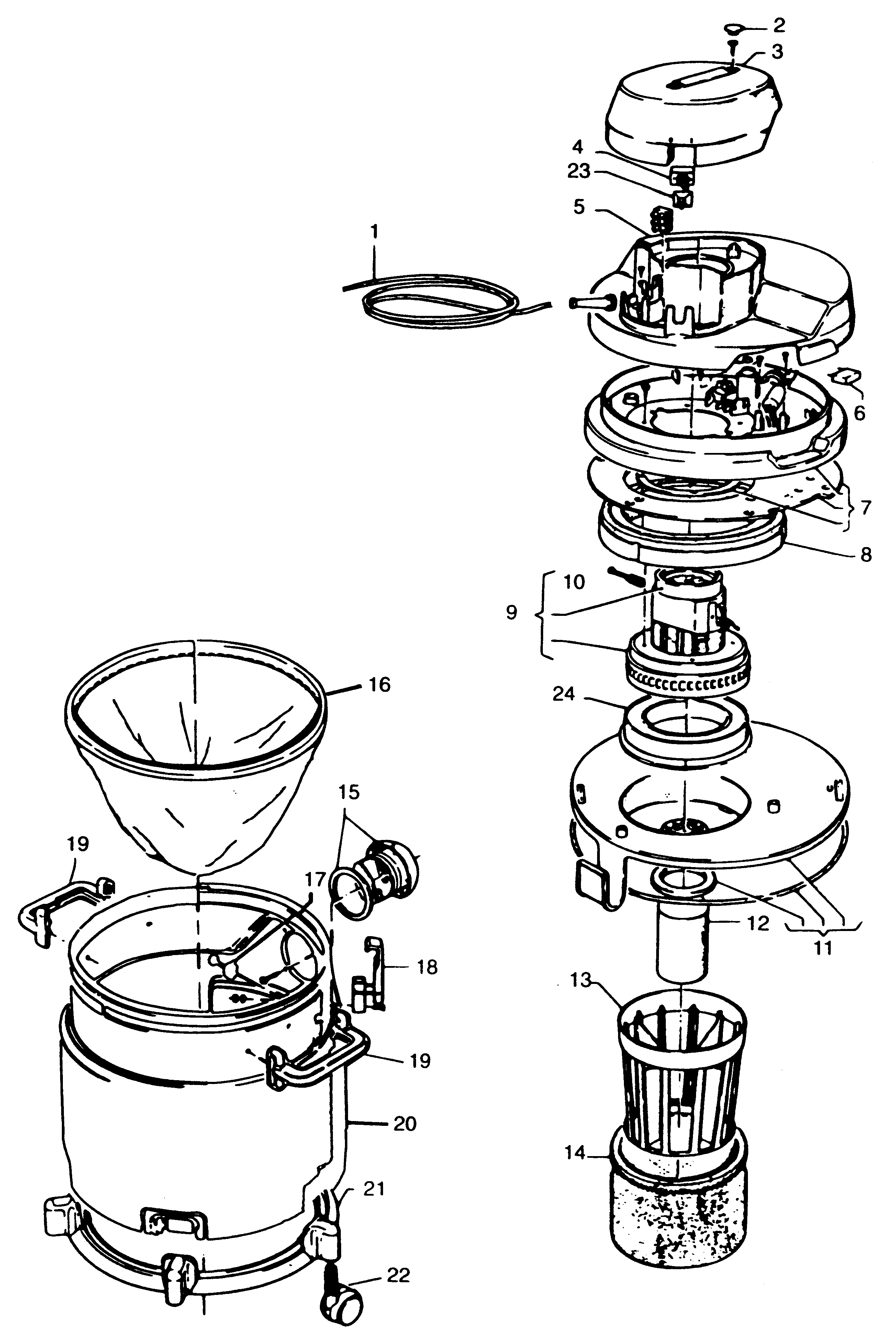

P9024 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 278854-00 | 1 | HOSE | Dia=36mm | XJ |  |
|
| 1 | 278888-00 | 1 | HOSE | Dia=36mm VC7/BEL2000 | XJ | |
|
| 2 | 278420-00 | 1 | CAP | P9024 | XJ | ||
| 2 | 278855-00 | 1 | TUBE PLASTIC | Dia=36mm | XJ | |
|
| 2 | 278855-00 | 1 | TUBE PLASTIC | Dia=36mm VC7/BEL2000 | XJ | |
|
| 3 | 278856-00 | 1 | BRUSH | Dia=36mm | XJ | |
|
| 3 | 278856-00 | 1 | BRUSH | Dia=36mm VC7/BEL2000 | XJ | |
|
| 4 | 278461-00 | 1 | SWITCH | 240V | XJ | |
|
| 4 | 278469-00 | 1 | SWITCH 115V | 115V | XJ | |
|
| 5 | 278858-00 | 1 | TOOL CREVICE | Dia=36mm | XJ | |
|
| 5 | 278858-00 | 1 | TOOL CREVICE | Dia=36mm VC7/BEL2000 | XJ | |
|
| 5 | 278445-00 | 1 | COVER | P9024 | XJ | |
|
| 6 | 278417-00 | 1 | FILTER | P9024 | XJ | |
|
| 6 | 278859-00 | 1 | REGULATOR | Dia=36mm | XJ | |
|
| 6 | 278859-00 | 1 | REGULATOR | Dia=36mm VC7/BEL2000 | XJ | |
|
| 7 | 278446-00 | 1 | COVER | P9024 | XJ | |
|
| 7 | 278860-00 | 1 | TOOL GEN PURPOSE | Dia=36mm | XJ | |
|
| 7 | 278860-00 | 1 | TOOL GEN PURPOSE | Dia=36mm VC7/BEL2000 | XJ | |
|
| 8 | 278861-00 | 1 | CONNECTOR | Dia=36mm | XJ | |
|
| 8 | 278861-00 | 1 | CONNECTOR | Dia=36mm VC7/BEL2000 | XJ | |
|
| 8 | 278861-00 | 1 | CONNECTOR | Dia=64mm | XJ | |
|
| 8 | 278425-00 | 1 | SUPPORT | P9024 | XJ | |
|
| 9 | 278862-00 | 1 | HOLDER TOOL | Dia=36mm | XJ | |
|
| 9 | 278862-00 | 1 | HOLDER TOOL | Dia=36mm VC7/BEL2000 | XJ | |
|
| 9 | 278468-00 | 1 | MOTOR 115V | 115V | XJ | ||
| 10 | 278470-00 | 1 | BRUSH PAIR | 115V | XJ | |
|
| 10 | 278414-00 | 1 | BRUSH PAIR | 240V | XJ | |
|
| 11 | 278864-00 | 1 | TOOL BRUSH | Dia=36mm | XJ | |
|
| 11 | 278864-00 | 1 | TOOL BRUSH | Dia=36mm VC7/BEL2000 | XJ | |
|
| 12 | 278865-00 | 1 | TOOL WATER | Dia=36mm | XJ | |
|
| 12 | 278865-00 | 1 | TOOL WATER | Dia=36mm VC7/BEL2000 | XJ | |
|
| 14 | 278403-00 | 1 | FILTER | P9024 | XJ | |
|
| 15 | 278404-00 | 1 | INTAKE | P9024 | XJ | |
|
| 15 | 278868-00 | 1 | HOSE | Dia=40mm | XJ | |
|
| 16 | 278869-00 | 1 | TUBE PLASTIC | Dia=40mm | XJ | |
|
| 16 | 278408-00 | 1 | FILTER | P9024 | XJ | |
|
| 17 | 278870-00 | 1 | TOOL CREVICE | Dia=40mm | XJ | |
|
| 18 | 278430-00 | 2 | HOOK | P9024 | XJ | |
|
| 18 | 278871-00 | 1 | HOLDER TOOL | Dia=40mm | XJ | |
|
| 19 | 278434-00 | 2 | HANDLE | P9024 | XJ | |
|
| 19 | 278872-00 | 1 | TOOL BRUSH | Dia=40mm | XJ | |
|
| 20 | 278873-00 | 1 | TOOL CARPET | Dia=40mm | XJ | |
|
| 21 | 278874-00 | 1 | TOOL WATER | Dia=40mm | XJ | |
|
| 22 | 278564-00 | 1 | WHEEL SET | P9024 | XJ | ||
| 23 | 278876-00 | 1 | HOLDER TOOL | Dia=64mm | XJ | |
|
| 24 | 278877-00 | 1 | TOOL CARPET | Dia=64mm | XJ | |
|
| 26 | 278879-00 | 1 | TOOL BRUSH | Dia=64mm | XJ | |
|
| 27 | 278880-00 | 1 | TOOL CREVICE | Dia=64mm | XJ | |
|
| 29 | 278882-00 | 1 | BRUSH | Dia=64mm | XJ | |
|
| 30 | 278883-00 | 1 | NOZZLE TRIANGULAR | Dia=64mm | XJ | |
|
| 32 | 278885-00 | 1 | HOSE | Dia=64mm | XJ | |
|
| 33 | 278401-00 | 1 | HOSE | Dia=32mm | XJ | |
|
| 34 | 278886-00 | 1 | ADAPTOR | Dia=32mm | XJ | |
|
| 35 | 278842-00 | 1 | CLIP CABLE | Dia=32mm | XJ | |
