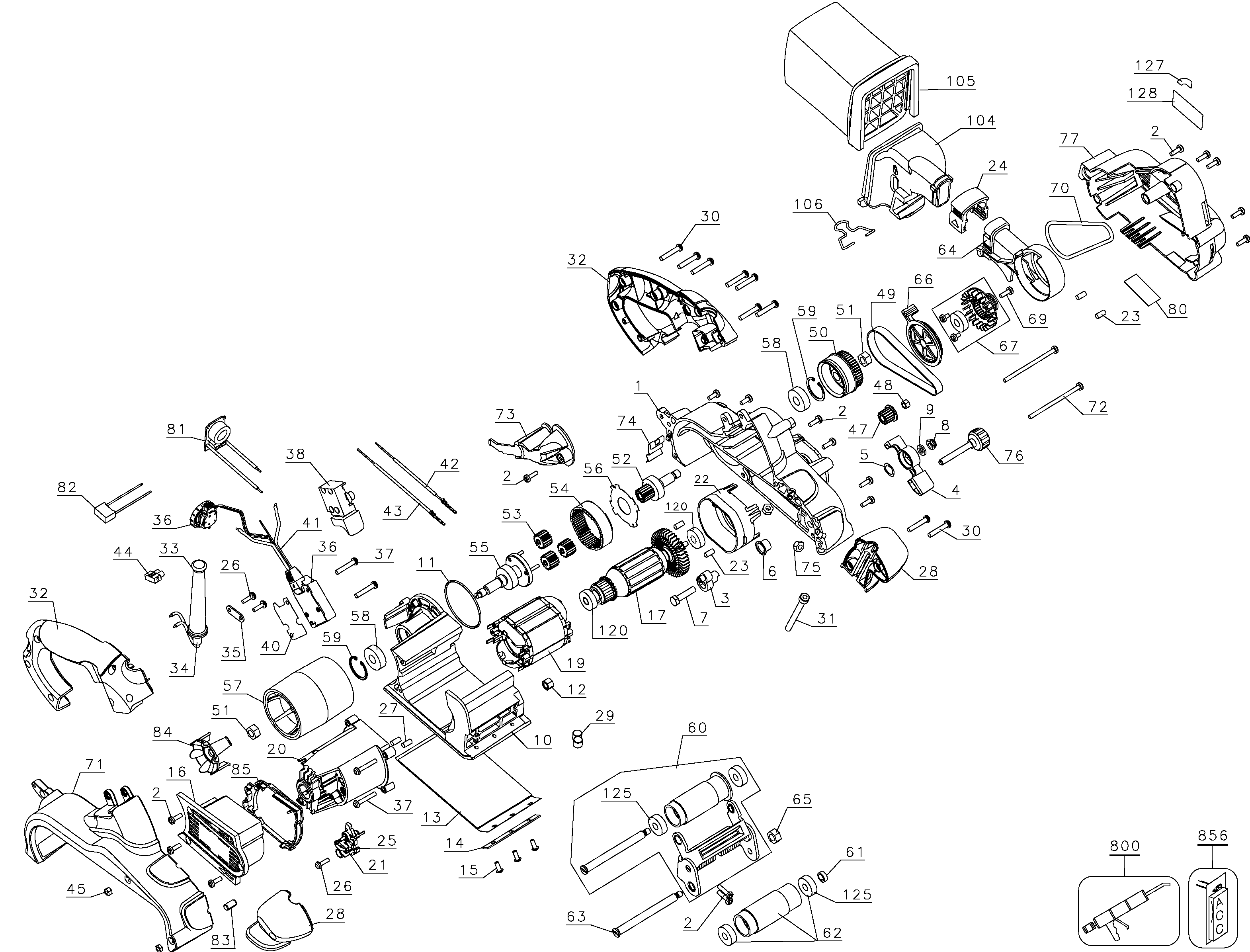

DW433 BELT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 398028-00SV | 1 | GEAR CASE | INCL. 120, 121 | LX | ||
| 2 | 330045-06 | 17 | SCREW | LX |  |
||
| 3 | 398097-00SV | 1 | SHAFT ASSEMBLY | LX | |||
| 4 | 398050-00 | 1 | LEVER | TENSION RELEASE | LX |  |
|
| 5 | 398074-00 | 1 | SPRING | LX | |
||
| 6 | 398064-00 | 1 | BUSHING | LX | |
||
| 7 | 098023-25 | 1 | SCREW | M6x1.0x25 HEXHD MACH | LX | ||
| 8 | 330021-07 | 1 | NUT | LX | |
||
| 9 | 330016-02 | 1 | WASHER | LX | |
||
| 10 | 393745-00 | 1 | PLATEN | LX | |
||
| 11 | 393758-00 | 1 | O RING | LX | |
||
| 12 | 398094-00 | 1 | NUT | LX | |
||
| 13 | 398080-00SV | 1 | BASEPLATE SA | LX | |
||
| 14 | 398049-00 | 1 | CLAMP | LX | |
||
| 15 | 153637-04 | 3 | SCREW | M4x8 BUTTON HD | LX | |
|
| 16 | 398065-00 | 1 | COVER | LX | |
||
| 17 | 398076-00SV | 1 | ARMATURE & BRG. | LX | |||
| 19 | 402051-03SV | 1 | FIELD | LX | |
||
| 20 | 393742-00 | 1 | FIELDCASE | LX | |
||
| 21 | 398045-01 | 2 | BRUSH 230V | LX | |
||
| 22 | 393747-00 | 1 | BAFFLE | LX | |
||
| 23 | 949638-02 | 4 | DAMPER | LX | |
||
| 24 | 398105-00 | 1 | COLLAR | LOCK | LX | |
|
| 25 | 398108-00 | 2 | BRUSH HOLDER | LX | |
||
| 26 | 176951-00 | 4 | SCREW | LX | |
||
| 27 | 072412-00 | 2 | PLUG | LX | |
||
| 28 | 398036-00 | 1 | HANDLE | LX | |
||
| 29 | 615509-00 | 2 | ROLLER | TRACKING | LX | |
|
| 30 | 330019-14 | 9 | SCREW | LX | |
||
| 31 | 398098-00 | 1 | LOCKING SCREW | M6x65 PATCH LOCK | LX | |
|
| 32 | 398117-00 | 1 | HANDLE & COVER | LX | |
||
| 33 | 330005-01 | 1 | CORD PROTECTOR | LX | |||
| 34 | 330061-25 | 1 | CORDSET | LX | |
||
| 35 | 380414-00 | 1 | CORD CLAMP | LX | |
||
| 36 | N033988 | 1 | CONTROL MODULE SA | LX | |
||
| 37 | 330045-07 | 6 | SCREW | LX | |
||
| 38 | 619242-00 | 1 | SWITCH | ON/OFF | LX | |
|
| 40 | 609468-00 | 1 | PAD | THERMAL | LX | |
|
| 41 | 612653-00 | 1 | WIRE | WIRE HARNESS | LX | |
|
| 41 | 619714-00 | 1 | WIRE | 2 LEADS TO SPD DIAL | LATE 2004 DATE CODES AND LATER | LX | |
| 42 | 398078-00 | 1 | LEAD WHITE | WHITE | LX | |
|
| 43 | 398078-01 | 1 | LEAD WHITE | WHITE | LX | |
|
| 44 | 398100-00 | 1 | TERMINAL BLOCK | LX | |
||
| 45 | 330015-01 | 2 | NUT | LX | |
||
| 47 | 393741-00 | 1 | DRIVE PULLEY | LX | |
||
| 48 | 330015-04 | 1 | NUT | LX | |
||
| 49 | 398029-00 | 1 | BELT DRIVE | LX | |
||
| 50 | 398030-00 | 1 | PULLEY | LX | |
||
| 51 | 330015-09 | 2 | NUT | M8 L.H. | LX | |
|
| 52 | 398096-00SV | 1 | SHAFT ASSEMBLY | LX | |||
| 53 | 393753-00 | 3 | GEAR | LX | |
||
| 54 | 393755-00 | 1 | GEAR | LX | |
||
| 55 | N174784 | 1 | REPAIR KIT | DW432/DW433 | Includes 55, 57 | LX | |
| 56 | 393759-00 | 1 | PLATE | RETAINER | LX | |
|
| 57 | N174784 | 1 | REPAIR KIT | DW432/DW433 | Includes 55, 57 | LX | |
| 58 | 605040-17 | 2 | BEARING BALL | LX | |
||
| 59 | 385244-00 | 2 | CIRCLIP | LX | |
||
| 60 | 640257-00 | 1 | YOKE SA | INCL. (2) 125 | LX | |
|
| 61 | 398068-00 | 1 | SPACER | LX | |
||
| 62 | 614545-00 | 1 | ROLLER | LOWER | INCL. 125 | LX | |
| 63 | 398039-00 | 1 | SHAFT | LX | |
||
| 64 | 393752-01 | 1 | SHROUD | LX | |
||
| 65 | 606899-00 | 1 | NUT | M6 | LX | |
|
| 66 | 393746-00 | 1 | BAFFLE | LX | |
||
| 67 | 393743-00SV | 1 | FAN | LX | |||
| 69 | 330045-13 | 1 | SCREW | M5x0.8x10 MTL THDFMG | LX | |
|
| 70 | 393749-01 | 1 | O RING | LX | |
||
| 71 | 398027-01 | 1 | FRAME | LX | |
||
| 72 | 613099-00 | 2 | SCREW | M4x70 MACHINE | LX | |
|
| 73 | 398083-00 | 1 | BAFFLE | MODULE | LX | |
|
| 74 | 398079-00 | 1 | CLIP | LX | |
||
| 75 | 330015-02 | 2 | NUT | LX | |
||
| 76 | 398070-00 | 1 | KNOB | LX | |
||
| 77 | 398071-01SV | 1 | BELT COVER | INC. 23, 127, 128 | LX | ||
| 80 | 635646-00 | 1 | RATING PLATE | DW433-LX TY1 | LX | |
|
| 81 | 398109-00 | 1 | PCB | LX | |
||
| 82 | 398111-00 | 1 | CAPACITOR | LX | |
||
| 83 | 617084-00 | 1 | PIN | LX | |
||
| 84 | 606902-00 | 1 | CAP | LX | |
||
| 85 | 636658-00 | 1 | BAFFLE | INTAKE | LX | |
|
| 104 | 398082-00 | 1 | HOLDER | DUST BAG | LX | |
|
| 105 | 398072-00 | 1 | FRAME | INCL. BAG | LX | |
|
| 106 | 617085-00 | 1 | CLIP | LX | |
||
| 120 | N110359 | 2 | BEARING | LX | |
||
| 125 | N110359 | 4 | BEARING | LX | |
||
| 127 | 398115-00 | 1 | LABEL | DUST COLLECTION | LX | |
|
| 128 | 616067-00 | 1 | WARNING LABEL | LX | |
||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | LX | ||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | LX | ||
| 856 | 340608-01 | 1 | BELT 80 GRIT | 3x21 80 GRIT | LX | |
