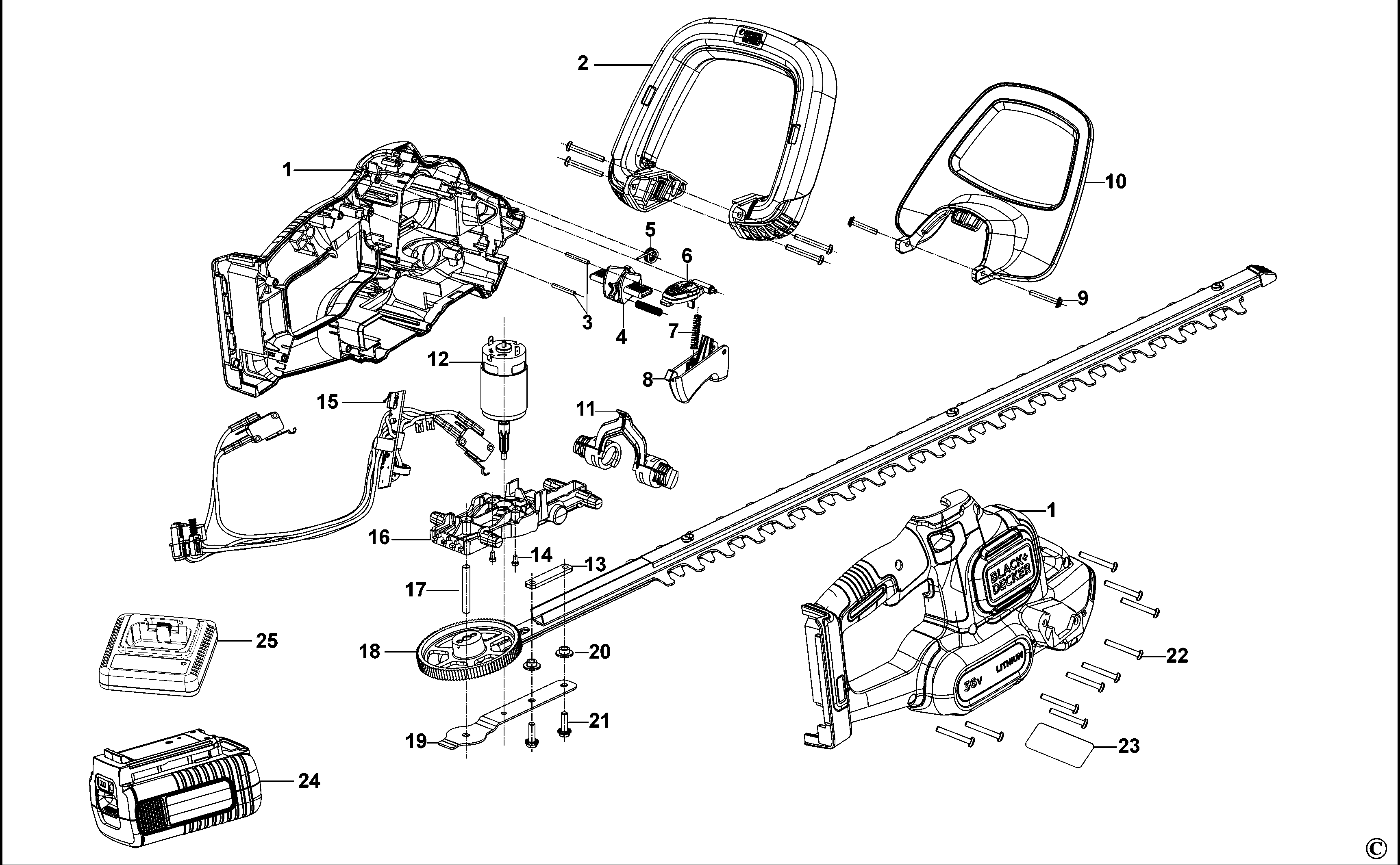

GTC36552PC HEDGE TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90628060 | 1 | HOUSING SA | GB |  |
||
| 2 | 90615518 | 1 | HANDLE SA | GB | |
||
| 3 | 5119820-00 | 2 | PIN | GB |  |
||
| 4 | 90623716 | 1 | TRIGGER | Lock Off | GB | |
|
| 5 | 90623720 | 1 | SPRING TORSION | GB | |
||
| 6 | 90621626 | 1 | BUTTON | GB | |
||
| 7 | 90623323 | 2 | SPRING COMPRESSION | GB | |
||
| 8 | 90621622 | 1 | TRIGGER | GB | |
||
| 9 | 90577627 | 2 | SCREW | GB | |
||
| 10 | 90577004 | 1 | GUARD | BLACK | GB | |
|
| 11 | 90621623 | 1 | LINK | GB | |
||
| 12 | 90634326 | 1 | MOTOR SA | 36V | GB | |
|
| 13 | 90568498 | 1 | PLATE | GB | |
||
| 14 | 90566914 | 2 | SCREW | GB | |
||
| 15 | 90627101 | 1 | PCB SA | 36V | GB | |
|
| 16 | 90564147 | 1 | GEARBOX SA | GB | |
||
| 17 | 90597621 | 1 | AXLE | GB | |
||
| 18 | 90597360-02 | 1 | BLADE & GEAR SA | GB | |
||
| 19 | 90570808 | 1 | PLATE | GB | |
||
| 20 | 376614-01 | 2 | SPACER | GB | |
||
| 21 | 90527921 | 2 | BOLT | GB | |
||
| 22 | 747329 | 14 | SCREW | GB | |
||
| 23 | 90629619 | 1 | RATING LABEL | GB | |
||
| 24 | N694215 | 1 | BATTERY 36V - 2.0AH - 72WH | Li-Ion - BL20362 | GB | |
|
| 24 | N694215 | 1 | BATTERY 36V - 2.0AH - 72WH | Li-Ion - BL20362 | GB | |
|
| 25 | 90616337-02 | 1 | CHARGER 36V | UA CHARGER 36V | GB | |
|
| 101 | 5100335-00 | 1 | BASE SA | White | 7.2V | GB | |
| 103 | E604600030-B32 | 1 | KNOB | GB | |
||
| 104 | N072222 | 1 | PLATE | GB | |||
| 105 | 794891 | 1 | END CAP | HARD | GB | |
|
| 106 | 497549-00 | 1 | BAFFLE | GB | |
||
| 107 | 395985-00 | 1 | BRUSH HOLDER | GB | |
||
| 109 | 650728-00 | 1 | BEARING BLOCK | GB | |||
| 110 | 368946-03 | 1 | CHUCK KEYLESS | BLUE | GB | ||
| 120 | 369490 | 1 | INSTRUCTION MANUAL | BLUE | GB | ||
| 130 | 614724-00 | 1 | CAP | BLUE | GB | |
|
| 140 | 571128-04 | 1 | TRANSMISSION SA | BRIL WHITE | GB | |
|
| 150 | 797160 | 1 | FRAME | BLUE | GB | ||
| 180 | 496596-00 | 5 | SEAL | NO4X18 | GB | |
