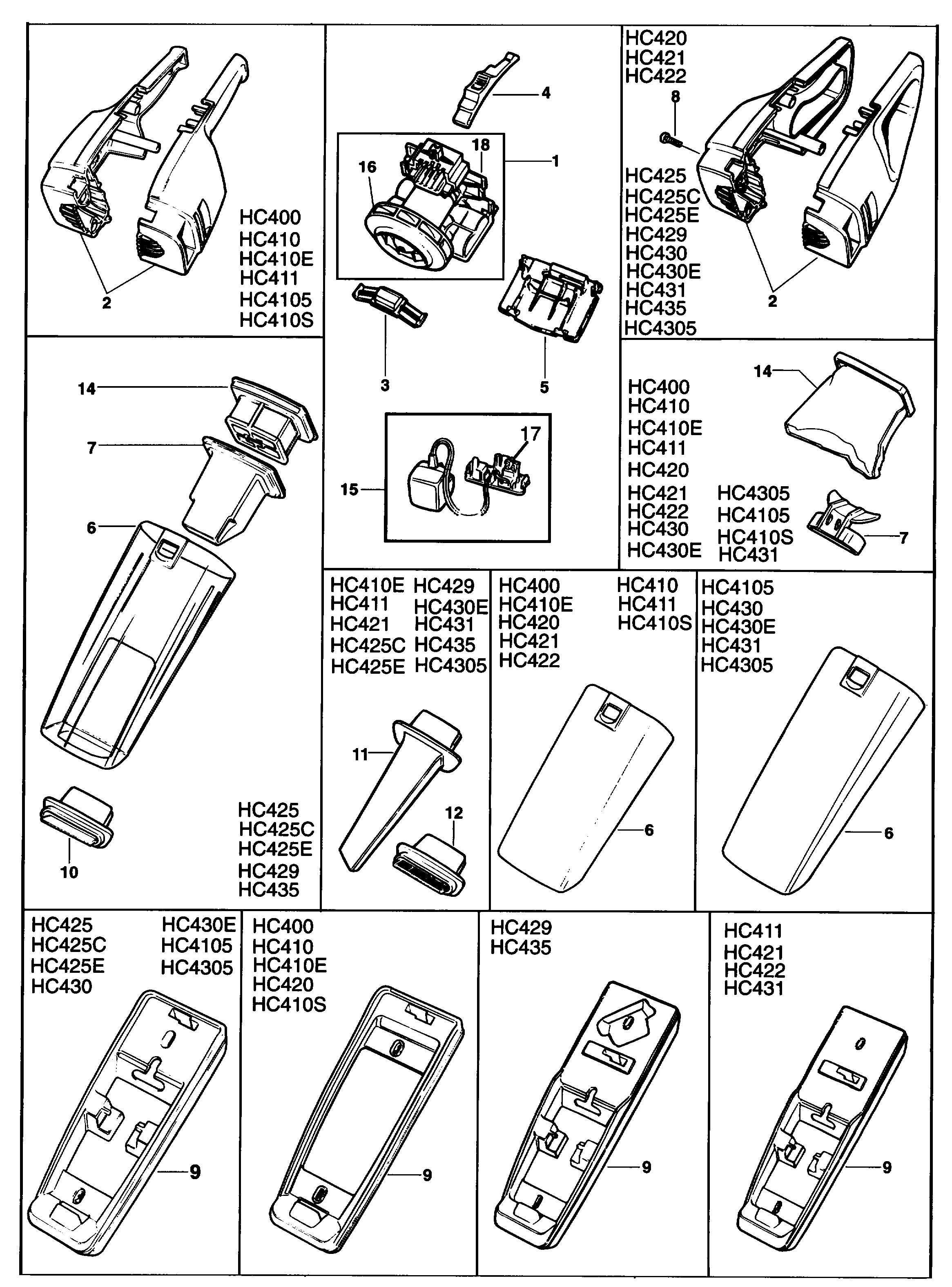

HC432RN DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 796819-05 | 1 | BATTERY & MOTOR SA | 6V - NiCd | GB |  |
|
| 1 | 571652-68 | 1 | NAMEPLATE | GB | |
||
| 2 | 498890-10 | 1 | HANDLE SA | GB | |
||
| 2 | 571652-72 | 1 | NAMEPLATE | GB | |
||
| 3 | 796728 | 1 | LATCH | GB | |
||
| 3 | 1003468-00 | 2 | SWITCHBOX | GB | |||
| 4 | 809201-02 | 1 | ACTUATOR | GB | |
||
| 4 | 605040-06 | 1 | BEARING,BALL | GB |  |
||
| 5 | 375781-04 | 1 | DOOR | GB | |||
| 5 | 624281-01 | 3 | CAP | NON VS | GB | |
|
| 6 | 808698-06 | 1 | BOWL | GB | |
||
| 6 | 90616851-01 | 1 | TANK | GB | |
||
| 7 | 172330-00 | 1 | DEFLECTOR | GB | |
||
| 7 | 90501579 | 1 | SCREW | GB | |
||
| 8 | 733886 | 5 | SCREW | GB | |
||
| 8 | 90530534 | 2 | DOOR | GB | |
||
| 9 | 377510 | 1 | BASE | HC431 HC431C | GB | |
|
| 9 | 377510 | 1 | BASE | HC432 HC432RN | GB | |
|
| 9 | 796752 | 1 | BASE | HC430E | GB | |
|
| 9 | 796752 | 1 | BASE | HC430 | GB | |
|
| 9 | 796752 | 1 | BASE | H4305 | GB | |
|
| 9 | N459477 | 1 | CLUTCH SA | GB | |
||
| 10 | N522267 | 1 | LINK | GB | |
||
| 11 | 171745-10 | 1 | TOOL CREVICE | H4305 | GB | |
|
| 11 | 171745-10 | 1 | TOOL CREVICE | HC432 HC432RN | GB | |
|
| 11 | 171745-10 | 1 | TOOL CREVICE | HC430E | GB | |
|
| 11 | 171745-10 | 1 | TOOL CREVICE | HC431 HC431C | GB | |
|
| 12 | 798785-02 | 1 | BRUSH | H4305 | GB | |
|
| 12 | 798785-02 | 1 | BRUSH | HC431 HC431C | GB | |
|
| 12 | 798785-02 | 1 | BRUSH | HC432 HC432RN | GB | |
|
| 12 | 90531369 | 25 | CHUCK KEYLESS | GB | |||
| 13 | 90524968 | 1 | BRAND LABEL | GB | |||
| 14 | 798530-00 | 1 | FILTER | GB | |
||
| 15 | 809030-05 | 1 | CHARGER SA | GB | |
||
| 15 | N549274 | 1 | HANDLE SA LH | GB | |
||
| 16 | 499887-00 | 1 | FAN | GB | |
||
| 16 | 1004721-44 | 1 | BEARING | GB | |
||
| 17 | 807918-03 | 1 | CONTACT SA | GB | |
||
| 17 | N528682 | 1 | TRIGGER | RIGHT | GB | |
|
| 18 | 809193 | 1 | SWITCH | GB | |
||
| 18 | 90632897 | 1 | DEPTH STOP | GB | |
||
| 19 | 90508160 | 3 | DEFLECTOR | WVF60 | GB | |
|
| 20 | N049495 | 3 | RATING PLATE | GB | |
||
| 21 | 90550938-03 | 1 | BLADE | JP | GB | ||
| 22 | N459472 | 1 | SLEEVE | GB | |
||
| 24 | 372261 | 1 | PUNCH | Inc items 25 - 26 | GB | |
|
| 25 | 90511749 | 1 | RATING PLATE | GB | |
||
| 26 | N506425 | 1 | SHAFT | GB | |
||
| 27 | 90561603 | 2 | SPINDLE | GB | |
||
| 28 | 90559541-03 | 1 | GEAR & SPINDLE | GB | |
||
| 29 | 622907-00 | 2 | COVER | GB | |
||
| 31 | 90506261-02 | 4 | TOOL CREVICE | RED | GB | |
|
| 32 | 90622128 | 1 | PIPE | PIPE,PUMP CONNECTING | GB | |
|
| 33 | 930243 | 2 | NUT | GB | |
||
| 34 | 1004771-15 | 1 | WIRE | GB | |
||
| 36 | 90626849 | 1 | SPRING | GB | |
||
| 37 | 1003297-00 | 1 | SWITCH | GB | |||
| 38 | 930244 | 1 | NUT | GB | |
||
| 39 | N459475 | 2 | RETAINER | GB | |
||
| 40 | N459468 | 1 | CHUCK | GB | |
||
| 41 | 571087-00 | 1 | BUTTON SA | Orange | GB | ||
| 42 | 90607885 | 2 | GUARD | GB | |
||
| 43 | 90516716 | 2 | CLAMSHELL SET | GB | |
||
| 44 | 682378-02 | 1 | COVER | GB | |
||
| 45 | N549276 | 1 | HANDLE SA RH | GB | |
||
| 46 | 911878 | 1 | SCREW | GB | |
||
| 47 | 911635 | 1 | LEVER | GB | |
||
| 48 | N529479 | 1 | LINK | GB | |
||
| 49 | N038938 | 3 | SPRING | GB | |
||
| 50 | 573262-00 | 1 | CLAMSHELL | GB | |
||
| 51 | 90549938 | 1 | BRUSHBOX SA | GB | |
||
| 52 | 90589659-00 | 1 | VALVE | GB | |
||
| 53 | 90567333 | 1 | HANDLE | GB | |
||
| 54 | 90528267 | 1 | RATING PLATE | GB | |||
| 55 | 90566706 | 1 | GRASSBOX RIGHT | GB | |
||
| 56 | A6023 | 1 | OIL | 1Litre | GB | ||
| 57 | 1005843-00 | 1 | BOLT | GB | |
||
| 58 | N549270 | 1 | HOUSING SWITCH | GB | |
||
| 59 | 90626046 | 1 | SPOOL & LINE | GB | |
||
| 60 | 571652-54 | 1 | BRAND LABEL | GB | |
||
| 62 | 90625102 | 1 | HOLDER | GB | |
||
| 63 | 90570177 | 1 | SPOOL SA | A6226-XJ | GB | |
|
| 66 | 573266-02 | 1 | BASEPLATE | GB | |
||
| 67 | 5170022-13 | 1 | PLATE | GB | |||
| 800 | 5104912-06 | 1 | EXTENSION | Use 3 grams | GB | |
