KG2300 ANGLE GRINDER Type 2 | Drawings
Documents

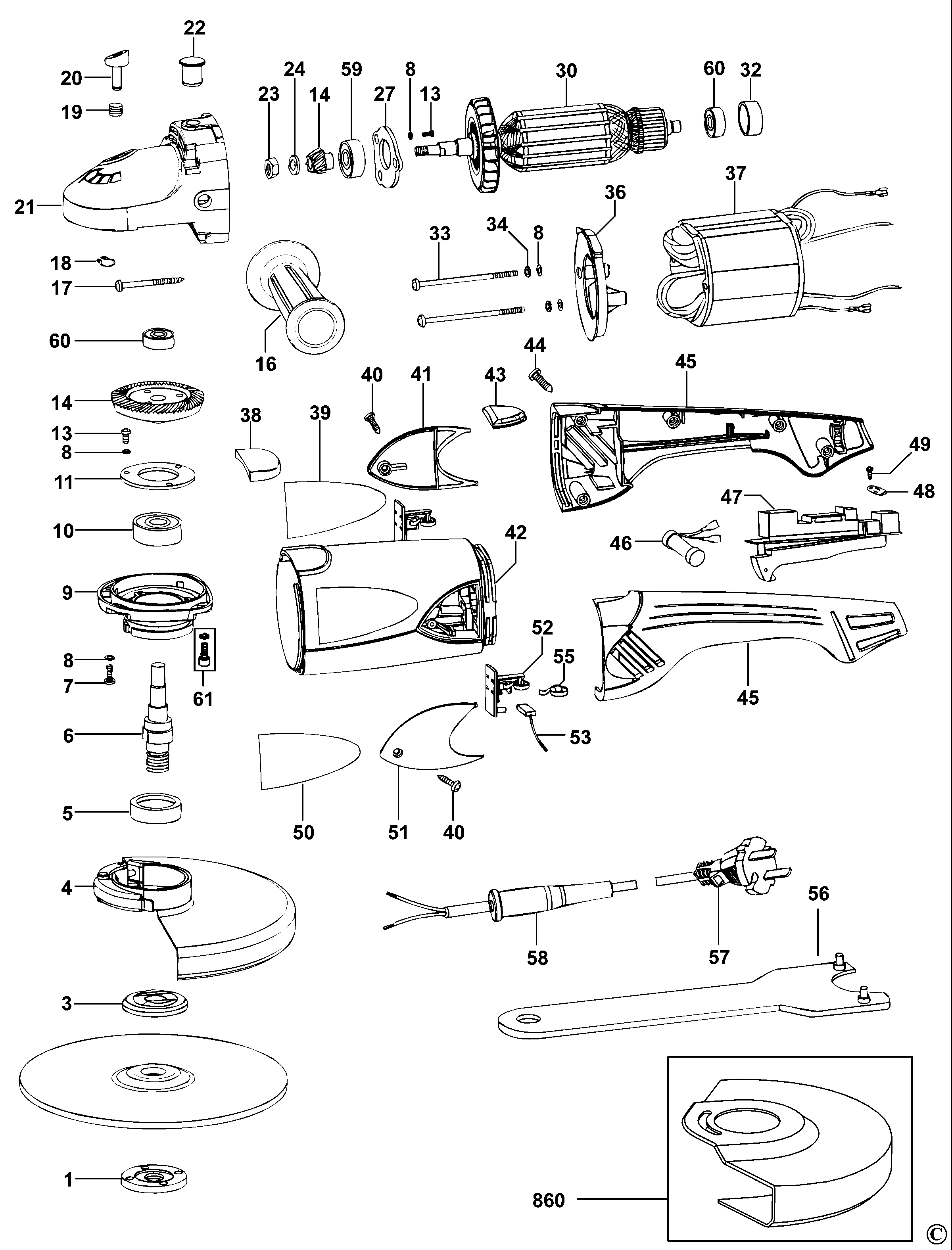

Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 597870-00 | 1 | OUTER FLANGE | GB |  |
||
| 3 | 597871-00 | 1 | INNER FLANGE | GB | |
||
| 4 | 597872-00 | 1 | GUARD 9" | GB | |
||
| 5 | 597873-00 | 1 | SEAL | GB | |
||
| 6 | 597874-00 | 1 | SPINDLE | GB | |
||
| 7 | 597875-00 | 5 | SCREW | M5 x 16mm | GB | |
|
| 8 | 597876-00 | 11 | WASHER SPRING | 5mm | GB | |
|
| 9 | 597877-00 | 1 | GEARCASE COVER | GB | |
||
| 10 | 597878-00 | 1 | BEARING | 6203ZZ - 17x40x12mm | GB | |
|
| 11 | 597879-00 | 1 | RETAINER | GB | |
||
| 13 | 597880-00 | 6 | SCREW | M4 | GB | |
|
| 14 | 597881-00 | 1 | GEAR & PINION | GB | |
||
| 16 | 597882-00 | 1 | SIDE HANDLE | GB | |
||
| 17 | 597883-00 | 4 | SCREW | 4.8 x 40mm | GB | |
|
| 18 | 597884-00 | 1 | CIRCLIP | GB | |
||
| 19 | 597885-00 | 1 | SPRING | GB | |
||
| 20 | 597886-00 | 1 | PIN | GB | |
||
| 21 | 597887-00 | 1 | GEARCASE | GB | |
||
| 22 | 597888-00 | 1 | COVER | GB | |
||
| 23 | 597889-00 | 1 | NUT | M8 | GB | |
|
| 24 | 597890-00 | 1 | WASHER SPRING | 8mm | GB | |
|
| 27 | 597891-00 | 1 | RETAINER | GB | |
||
| 30 | 597892-00 | 1 | ARMATURE SA | 230 Volt | Inc item 10 | GB | |
| 32 | 597893-00 | 1 | SLEEVE | GB | |
||
| 33 | 597894-00 | 2 | SCREW | GB | |
||
| 34 | 597895-00 | 2 | WASHER | GB | |
||
| 36 | 597896-00 | 1 | BAFFLE FAN | GB | |
||
| 37 | 597897-00 | 1 | FIELD SA | 230 Volt | GB | |
|
| 38 | 597898-00 | 1 | BUNG | GB | |
||
| 39 | 597899-00 | 1 | BRAND LABEL | GB | |
||
| 40 | 597900-00 | 2 | SCREW | 4.2 x 13mm | GB | |
|
| 41 | 597901-00 | 1 | COVER RH | GB | |
||
| 42 | 597902-00 | 1 | FIELDCASE | GB | |
||
| 43 | 597903-00 | 1 | BUNG | GB | |
||
| 44 | 597904-00 | 5 | SCREW | 4.2 x 19mm | GB | |
|
| 45 | 597905-00 | 1 | HANDLE SA | GB | |
||
| 46 | 597906-00 | 1 | RESISTOR | GB | |
||
| 47 | 597907-00 | 1 | SWITCH | GB | |
||
| 48 | 597908-00 | 1 | CORD CLAMP | GB | |
||
| 49 | 597909-00 | 2 | SCREW | 4.2 x 10mm | GB | |
|
| 50 | 597910-00 | 1 | LABEL | GB | |
||
| 51 | 597911-00 | 1 | COVER LH | GB | |
||
| 52 | 597912-00 | 2 | BRUSH HOLDER SA | GB | |
||
| 53 | 597913-00 | 2 | BRUSH | GB | |
||
| 55 | 597914-00 | 2 | BRUSH SPRING | GB | |
||
| 56 | 597916-00 | 1 | SPANNER | GB | |
||
| 57 | 597919-00 | 1 | CORDSET | GB | |
||
| 58 | 597915-00 | 1 | CORD PROTECTOR | GB | |
||
| 59 | 569347-00 | 1 | BEARING | 6201ZZ - 12x32x10mm | GB |  |
|
| 60 | 569337-00 | 2 | BEARING | 6000ZZ - 10x26x8mm | GB | |
|
| 61 | 1004505-00 | 1 | SCREW.SPECIAL | GB | |
||
| 860 | 1004484-02 | 1 | GUARD CUT OFF | 230MM | GB | |
