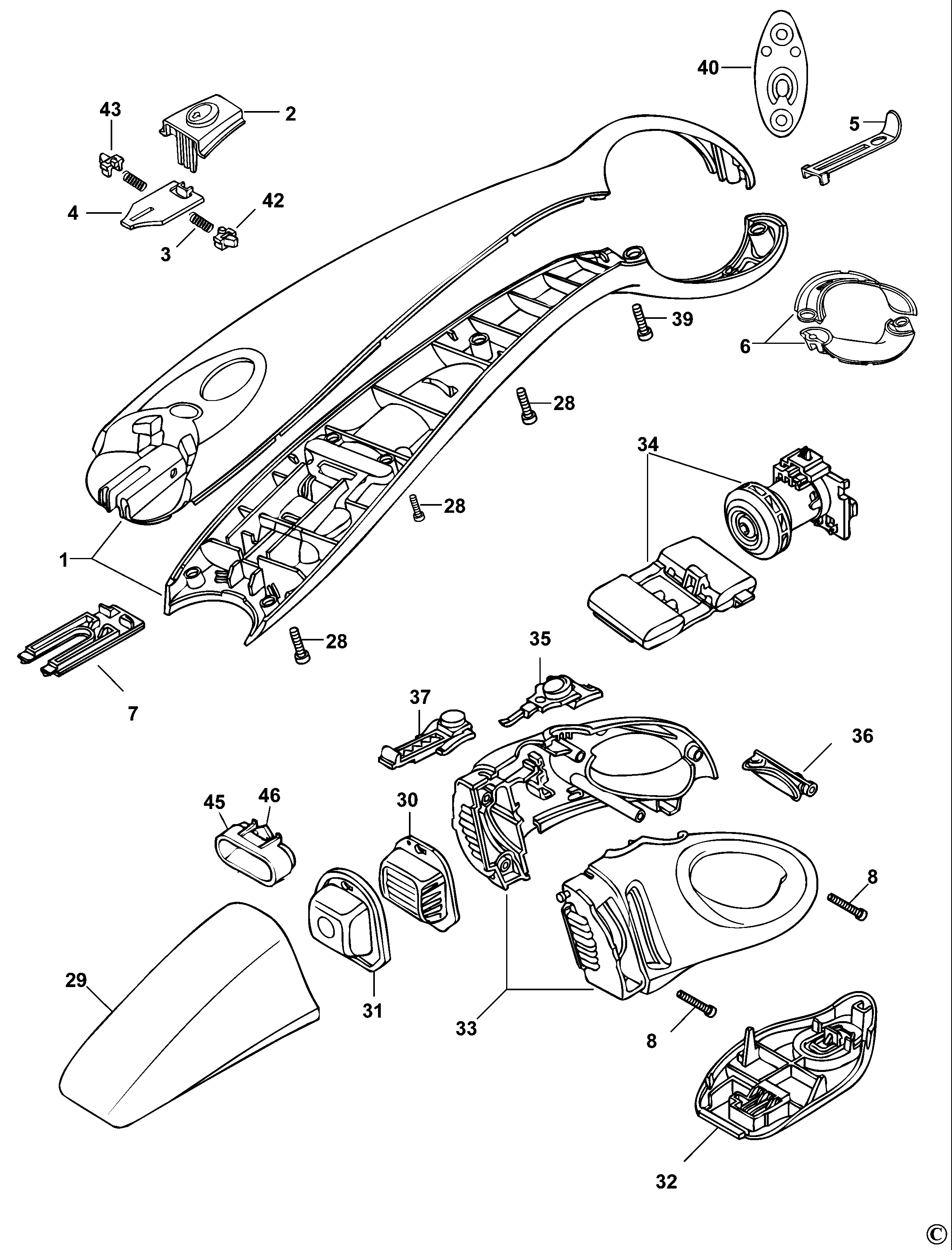

CFV1200 STICK-VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 5101467-00 | 1 | BUTTON | XJ | |||
| 3 | 418634-01 | 2 | SPRING | XJ | |||
| 4 | 5101469-00 | 1 | SLIDER | XJ | |||
| 5 | 5101479-00 | 1 | LOOP HANDLE | XJ |  |
||
| 6 | 5101444-00 | 1 | INSERT SA | XJ | |
||
| 7 | 5101476-01 | 1 | COVER | Indigo | XJ | |
|
| 8 | 499903-00 | 5 | SCREW | XJ |  |
||
| 9 | 5101441-03 | 1 | HOUSING SA | XJ | |||
| 10 | 5101447-01 | 1 | SET OF LEAD WIRES | XJ | |||
| 11 | 499738-10 | 1 | TERMINAL BLOCK | XJ | |||
| 12 | 5101461-03 | 1 | FUNNEL | XJ | |
||
| 13 | 5101464-01 | 1 | COVER | XJ | |
||
| 14 | 5101450-00 | 1 | CATCH SA | XJ | |
||
| 15 | 5101466-00 | 1 | DETENT | XJ | |||
| 16 | 418634-00 | 1 | SPRING | XJ | |||
| 17 | 5100550-01 | 1 | POWERBRUSH SA | XJ | |
||
| 18 | 5100562-03 | 1 | MOTOR SA | 12 Volt | XJ | |
|
| 19 | 5100561-00 | 1 | BELT TOOTHED | XJ | |
||
| 20 | 5101492-00 | 4 | AXLE | 2.5 x 30mm | XJ | |
|
| 21 | 5101486-00 | 4 | ROLLER | XJ | |
||
| 22 | 5101439-06 | 1 | HOUSING SA | XJ | |||
| 23 | 5101462-01 | 1 | CAP | Indigo | XJ | |
|
| 24 | 5101445-01 | 1 | INSERT | XJ | |||
| 25 | 5101478-01 | 1 | COVER | XJ | |
||
| 26 | 419799-05 | 4 | SCREW | XJ | |
||
| 27 | 5101503-00 | 5 | SCREW | 3.5 x 12mm | XJ | |
|
| 28 | 5100439-01 | 19 | SCREW | 3.6 x 18mm | XJ | |
|
| 29 | 499731-29 | 1 | BOWL | XJ | |||
| 30 | 499739-01 | 1 | FILTER | XJ | |
||
| 31 | 499742-00 | 1 | COVER | XJ | |
||
| 32 | 499724-10 | 1 | HOUSING LOWER | XJ | |
||
| 34 | 499697-25 | 1 | BATTERY & MOTOR SA | 12V - NiCd | XJ | |
|
| 35 | 5101437-03 | 1 | SWITCH SA | Indigo | XJ | |
|
| 36 | 499744-17 | 1 | INSERT | Indigo | XJ | |
|
| 37 | 499721-13 | 1 | LATCH | XJ | |
||
| 39 | 5101502-00 | 2 | SCREW | 3.5 x 38mm | XJ | |
|
| 40 | 5101484-00 | 1 | HOOK | XJ | |
||
| 42 | 5101468-00 | 1 | DETENT | XJ | |||
| 43 | 5101468-01 | 1 | DETENT | XJ | |||
| 44 | 5101491-00 | 4 | SCREW | XJ | |||
| 45 | 499733-00 | 1 | DEFLECTOR | XJ | |
||
| 46 | 172329-00 | 1 | VALVE FLAP | XJ |
