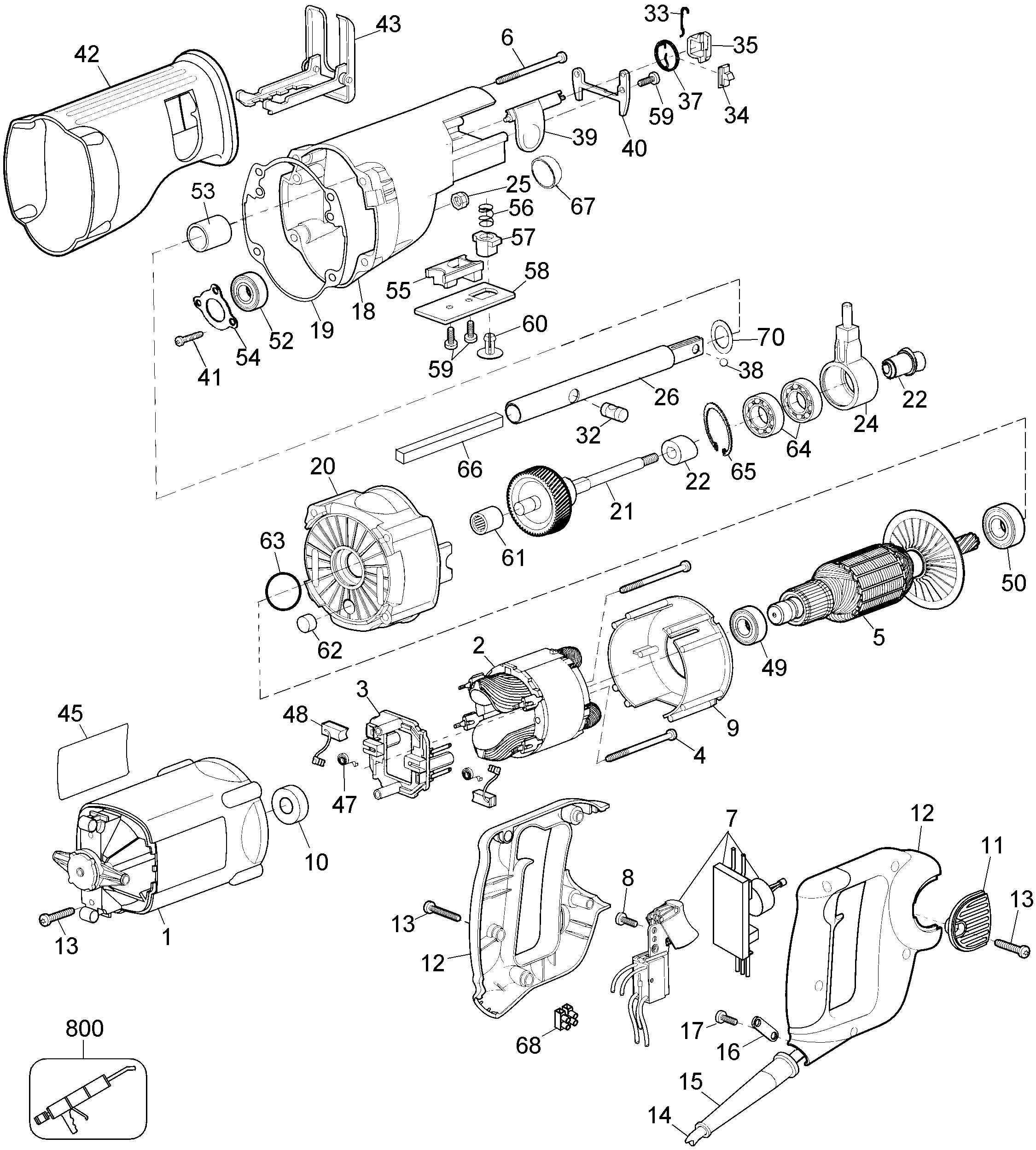

DW307MK RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 382747-08 | 1 | FIELDCASE | GB |  |
||
| 1 | N048000SV | 1 | FIELD 230V | GB |  |
||
| 2 | 450379-00SV | 1 | FIELD | GB | |||
| 2 | 603325-01 | 1 | MOTOR & PINION | GB | |||
| 3 | N402490 | 1 | BRUSH SA | GB | |
||
| 3 | 147795-00 | 1 | QUADRANT | GB | |
||
| 4 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | GB | |
|
| 4 | N037639 | 1 | SHAFT | GB | |||
| 5 | 383392-04 | 1 | ARMATURE 230V | INCL. 49, 50 | GB | |
|
| 5 | 388529-00 | 1 | BAFFLE FAN | GB | |
||
| 6 | 330019-34 | 4 | SCREW | GB | |
||
| 6 | 624370-00 | 1 | KIT BOX | GB | |||
| 7 | 382642-06 | 1 | ELECTRONIC & SWITCH | GB | |
||
| 7 | 398083-00 | 1 | BAFFLE | MODULE | GB | |
|
| 8 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 8 | 647560-01 | 1 | MOTOR & PINION | 36V mtr./pin/plate | GB | ||
| 9 | 382750-01 | 1 | BAFFLE FAN | GB | |
||
| 10 | 137382-02 | 1 | SLEEVE | GB | |
||
| 10 | 445860-00 | 1 | BRUSH SPRING | GB | |
||
| 11 | 382751-00 | 2 | COVER BRUSH | GB | |
||
| 11 | 623258-00 | 1 | ACTUATOR | GB | |||
| 12 | 383598-00 | 1 | HANDLE SA | GB | |
||
| 12 | N046191 | 1 | RATING PLATE | DW965 Type 3 | GB | |
|
| 13 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 13 | 243985-00 | 1 | FILTER | GB | |||
| 14 | 330060-84 | 1 | CABLE & PLUG | GB | |
||
| 14 | 385865-00 | 8 | SCREW | GB | |
||
| 15 | 330005-01 | 1 | CORD PROTECTOR | GB | |||
| 16 | 86634-00 | 1 | CORD CLAMP | GB | |||
| 16 | 605040-69 | 1 | BEARING | GB | |
||
| 17 | 330019-02 | 2 | SCREW | GB | |
||
| 17 | 153765-03 | 1 | BASE | GB | |||
| 18 | 385721-00 | 1 | GEARCASE | INCL. 52-60 | GB | |
|
| 18 | 390835-00 | 1 | KITBOX | DW008 | GB | ||
| 19 | 383752-00 | 1 | GASKET | GB | |
||
| 19 | N031218 | 1 | RATING PLATE | D21510-GB Ty1 | GB | |
|
| 20 | 385720-00SV | 1 | GR.CASE CVR.ASY | INCL. 61,62,63 | GB | ||
| 20 | 395308-00 | 1 | MOTOR SA | GB | |||
| 21 | 429952-01 | 1 | SHAFT SA | INCL. 25 | GB | |
|
| 21 | 241545-03 | 1 | KNOB | GB | |
||
| 22 | 397097-00SV | 1 | PIN. WOBBLE SET | GB | |||
| 22 | 647398-00 | 1 | PIN | KNURLED | GB | |
|
| 23 | 148679-02 | 1 | CAPACITOR | GB | |
||
| 24 | 385872-00 | 1 | COVER BEARING | INCL. 64,65 | GB | |
|
| 24 | 286438-00 | 3 | BRACKET | GB | |||
| 25 | 395918-00 | 1 | NUT | 5/16-18, 13MM | GB | |
|
| 26 | 623504-00 | 1 | SHAFT | GB | |
||
| 26 | 244009-00 | 1 | ADAPTOR | GB | |||
| 27 | 383197-01 | 1 | ECCENTRIC | GB | |
||
| 28 | 630063-00 | 1 | HOUSING GEAR | Gearbox | GB | |
|
| 29 | 395085-00 | 1 | PIN | GB | |
||
| 30 | 605040-15 | 1 | BEARING,BALL | NPP | GB | |
|
| 31 | 628425-00 | 1 | BLADE | 6 1/2 - 16 TEETH | GB | ||
| 32 | 382187-00 | 1 | AXLE | GB | |
||
| 33 | 620663-00 | 1 | LOCK PIN | GB | |
||
| 33 | 385579-00 | 1 | RATING PLATE | GB | |
||
| 34 | 383749-01 | 1 | SLIDE | GB | |
||
| 34 | 244332-00 | 1 | ADAPTOR | GB | |||
| 35 | 604731-00 | 1 | BLADE CLAMP | GB | |
||
| 35 | 396992-01 | 1 | KNOB | GB | |
||
| 36 | 98185-20 | 1 | PIN | GB | |
||
| 37 | 623343-00 | 1 | SPRING | GB | |
||
| 38 | 000903-00 | 1 | BALL | GB | |
||
| 38 | 380779-00 | 1 | SWITCH | GB | |
||
| 39 | 391452-00 | 1 | LEVER | GB | |
||
| 39 | N674939 | 1 | LABEL | BRUSHLESS | GB | ||
| 40 | 383745-00 | 1 | RETAINING PLATE | GB | |
||
| 40 | 445704-00 | 1 | WASHER | GB | |
||
| 41 | 330045-05 | 3 | SCREW | GB | |
||
| 41 | N055724 | 1 | LEAD BLACK | Black, 18GA | GB | |
|
| 42 | 384023-00 | 1 | BOOT | GB | |
||
| 42 | 624548-00SV | 2 | CONTROL MODULE | GB | |||
| 43 | 383435-00 | 1 | SHOE | GB | |
||
| 43 | N032694 | 2 | BRUSH | GB | |||
| 44 | 088148-00 | 1 | GROMMET | GB | |||
| 45 | 627212-00 | 1 | BRAND LABEL | DEWALT | GB | |
|
| 45 | 385969-00 | 1 | GUARD LOWER | GB | |
||
| 46 | N182022 | 1 | FIELD CASE | INCL. FIELD | GB | ||
| 47 | 383387-00 | 2 | BRUSH SPRING | GB | |
||
| 47 | 497898-00 | 1 | NUT | GB | |
||
| 48 | N501035 | 2 | BRUSH 230V | GB | |
||
| 48 | 90547807 | 1 | CHARGER & BASE | 6 V B1 | GB | ||
| 49 | 605040-20 | 2 | BEARING | 12 x 28 x 8mm | GB | |
|
| 50 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 51 | 380786-01 | 1 | SWITCH | GB | |
||
| 52 | 330003-04 | 1 | BEARING | GB | |||
| 52 | 390151-00 | 1 | PISTON RING | GB | |
||
| 53 | 383241-00 | 1 | BEARING | GB | |
||
| 53 | 629591-00SV | 1 | SHOE ASSEMBLY | GB | |||
| 54 | 384466-00 | 1 | RETAINING PLATE | GB | |
||
| 54 | 575580-06 | 1 | HOUSING LOWER | Green | GB | |
|
| 55 | 389999-00 | 1 | SPACER | GB | |
||
| 55 | 624222-00 | 1 | WARNING LABEL | GB | |||
| 56 | 045550-00 | 1 | SPRING | GB | |||
| 56 | 385561-00 | 1 | LEAD | GB | |
||
| 57 | 613056-00 | 1 | PIN | DETENT | GB | |
|
| 57 | 90569695 | 1 | SPRING | GB | |
||
| 58 | 389999-00 | 1 | SPACER | GB | |
||
| 58 | 604996-03 | 1 | FIELD CASE | GB | |||
| 59 | 330045-06 | 4 | SCREW | GB | |
||
| 59 | 370167-00 | 2 | SCREW | GB | |||
| 60 | 384405-00 | 1 | BUTTON | GB | |
||
| 60 | 98004-36 | 1 | SCREW.TEMP | GB | |
||
| 61 | 330004-02 | 1 | BEARING NEEDLE | GB | |
||
| 61 | N541864 | 3 | FAN | GB | |
||
| 62 | 384401-00 | 1 | PLUG | GB | |
||
| 62 | 330024-01 | 8 | SCREW | GB | |
||
| 63 | 99180-24 | 1 | SEAL | GB | |
||
| 63 | N646628 | 1 | SPRING | GB | |
||
| 64 | 605040-25 | 2 | BEARING,BALL | GB | |
||
| 64 | 392448-00 | 1 | SPRING | GB | |
||
| 65 | 384046-00 | 1 | CIRCLIP | GB | |||
| 65 | 244025-00 | 1 | ADAPTOR | GB | |||
| 66 | 387262-00 | 1 | OILER | GB | |
||
| 66 | 651681-00 | 1 | WARNING LABEL | GB | |||
| 67 | 383227-00 | 1 | CAP | GB | |
||
| 67 | 86391-05 | 4 | GEAR SA | GB | |
||
| 68 | 320078-00 | 1 | TERMINAL BLOCK | GB | |
||
| 68 | 610026-05 | 1 | CONTROL MODULE | 120v | GB | ||
| 69 | 382629-00 | 1 | LEAD BLACK | GB | |
||
| 70 | 623496-00 | 1 | RING | D/C 200340 THRU 200408 ONLY | GB | |
|
| 72 | N022520 | 1 | CONTACT | GB | |
||
| 73 | 176834-00 | 1 | LEAD BLUE | GB | |||
| 75 | 1342256 | 1 | SPACER | DELTA | GB | |
|
| 76 | 448519-08 | 1 | ARMATURE & FAN | GB | |||
| 77 | 90528396 | 1 | MOTOR & PINION | 7.2V | GB | ||
| 80 | 569232-00 | 1 | REAMER | GB | |
||
| 81 | 394575-00 | 1 | GRINDING WHEEL | DW4514, 4 1/2 IN | GB | ||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | GB | |
|
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 801 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 846 | 46903-03 | 1 | FIELDCASE | GB | |
||
| 866 | 569221-00 | 1 | BELT | GB | |
