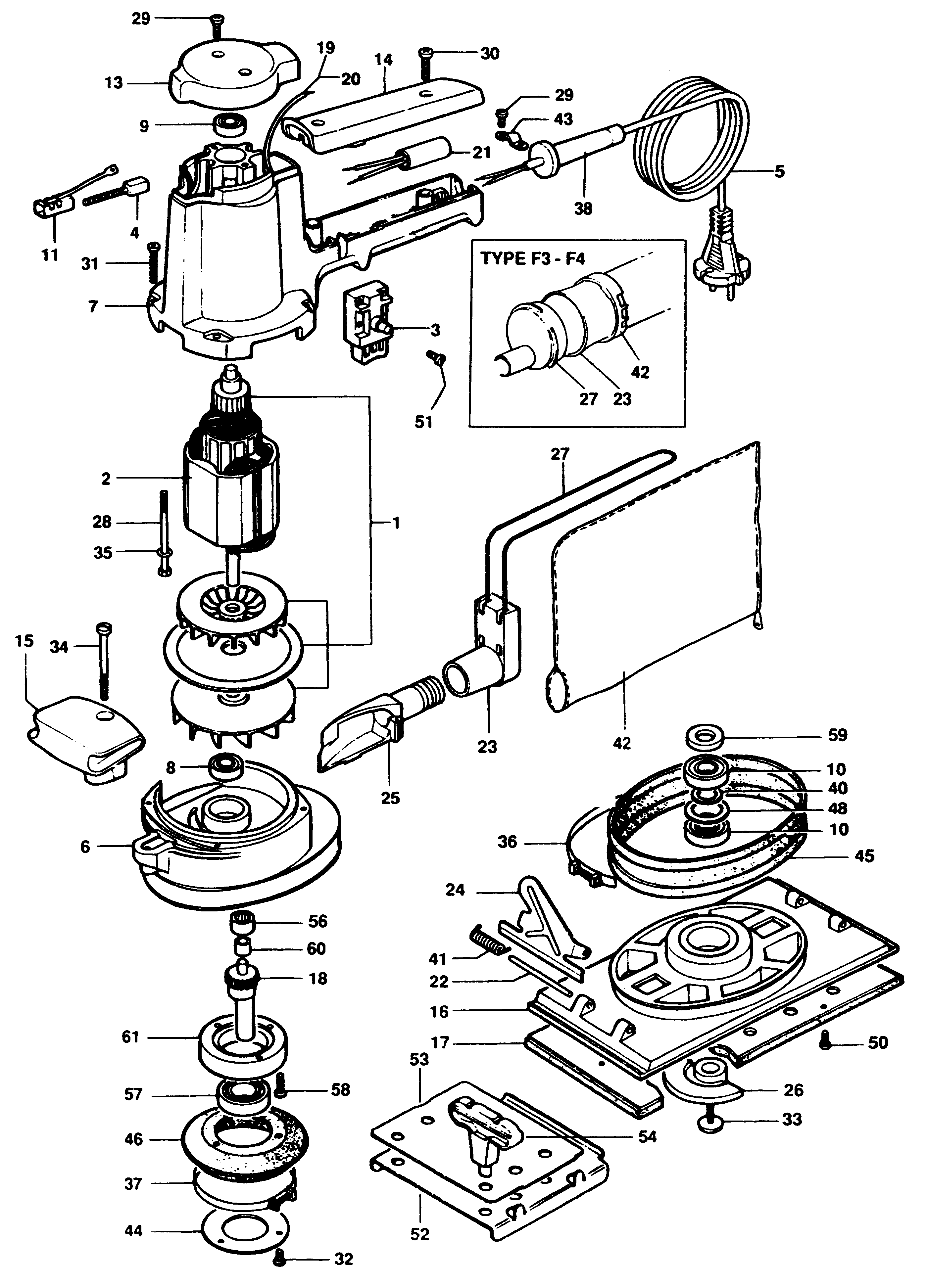

P6305 ORBITAL SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 736564 | 1 | ARMATURE | 220/240 VOLTS | GB |  |
|
| 3 | 953088 | 1 | SWITCH | GB | |
||
| 4 | 916424 | 2 | FSO BRUSH | GB | |
||
| 5 | 4688529 | 1 | CABLE PER METRE | GB | |
||
| 6 | 732256-01 | 1 | GEARCASE | GB | |
||
| 7 | 733827 | 1 | FIELDCASE | GB | |
||
| 8 | 605040-05 | 1 | BEARING | GB |  |
||
| 9 | 142830000 | 1 | BEARING | GB | |
||
| 10 | 915541 | 2 | BEARING | GB | |
||
| 11 | 730657 | 2 | BRUSH HOLDER | TYPE F11 | GB | |
|
| 11 | 730657 | 2 | BRUSH HOLDER | TYPE F3-F4 | GB | |
|
| 11 | 733829 | 2 | BRUSH HOLDER | TYPE D1 | GB | |
|
| 13 | 733828 | 1 | COVER | GB | |
||
| 14 | 730622 | 1 | COVER | GB | |
||
| 15 | 731526 | 1 | HANDLE | GB | |
||
| 17 | 735719 | 1 | PAD | GB | |
||
| 18 | 732247 | 1 | GEAR SA | GB | |
||
| 19 | 322076 | 1 | LEAD 160MM BLACK | GB | |
||
| 20 | 322075 | 1 | LEAD 210MM BLACK | GB | |
||
| 21 | 321384 | 1 | CAPACITOR | GB | |
||
| 22 | 955264 | 2 | AXLE | GB | |
||
| 23 | 731280 | 1 | BRACKET | TYPE F11 | GB | |
|
| 23 | 731280 | 1 | BRACKET | TYPE D1 | GB | |
|
| 24 | 730633 | 2 | GRIP | GB | |
||
| 25 | 730645 | 1 | PIPE | GB | |
||
| 26 | 730744 | 1 | COUNTERWEIGHT | GB | |
||
| 27 | 732836 | 1 | BRACKET | TYPE F11 | GB | |
|
| 27 | 732836 | 1 | BRACKET | TYPE D1 | GB | |
|
| 28 | 736416 | 2 | SCREW | GB | |
||
| 29 | 894748 | 4 | O RING | GB | |
||
| 30 | 323924-17 | 2 | SCREW | GB | |
||
| 31 | 911996 | 4 | SCREW | GB | |
||
| 32 | 734892 | 3 | SCREW | GB | |
||
| 33 | 730111 | 1 | SCREW | GB | |
||
| 34 | 911880 | 1 | SCREW | GB | |
||
| 35 | 322475 | 2 | WASHER | GB | |
||
| 36 | 730638 | 1 | COLLAR | GB | |
||
| 37 | 730639 | 1 | COLLAR | GB | |
||
| 38 | 859013 | 1 | PROTECTOR | GB | |
||
| 40 | 730920 | 1 | SPACER | GB | |
||
| 41 | 731408 | 2 | SPRING | GB | |
||
| 42 | 732882 | 1 | BAG | TYPE F11 | GB | |
|
| 42 | 732882 | 1 | BAG | TYPE D1 | GB | |
|
| 43 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 44 | 730923 | 1 | WASHER | GB | |
||
| 45 | 730637 | 1 | SKIRT | GB | |
||
| 46 | 736855 | 1 | SKIRT | GB | |
||
| 48 | 731892 | 1 | BUSH | GB | |
||
| 50 | 735722 | 6 | SCREW | GB | |
||
| 51 | 911026 | 2 | SCREW | GB | |
||
| 52 | 731439 | 1 | BRACKET | GB | |
||
| 53 | 731440 | 1 | GAUGE | GB | |
||
| 54 | 731441 | 1 | PUNCH | GB | |
||
| 56 | 330004-06 | 1 | BEARING NEEDLE | GB | |
||
| 57 | 051830000 | 1 | BEARING | GB | |
||
| 58 | 324006-01 | 3 | SCREW | GB | |
||
| 59 | 730924 | 1 | SPACER | GB | |
||
| 60 | 732259 | 1 | BEARING | GB | |
||
| 61 | 730742 | 1 | CAGE | GB | |
