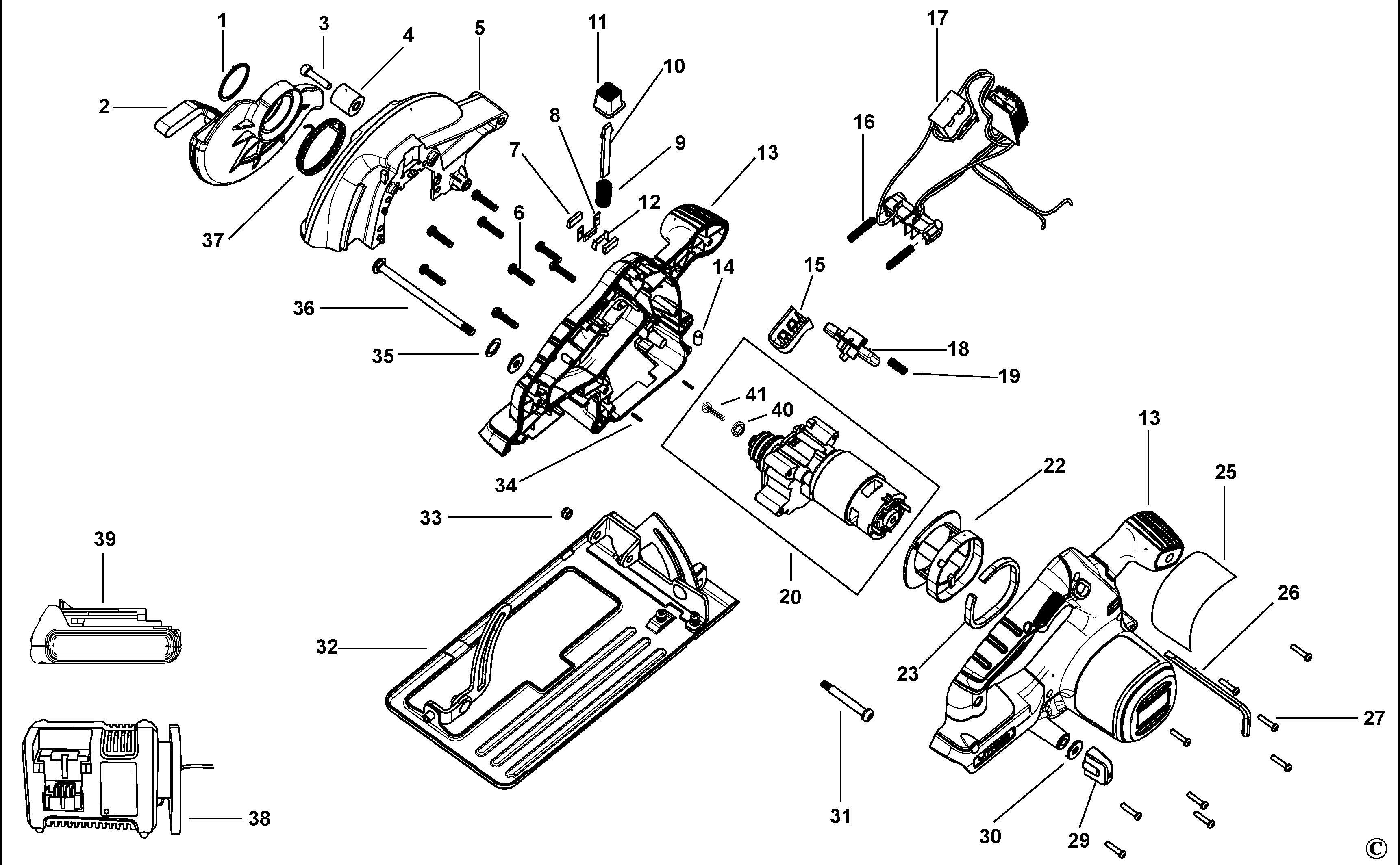

BDCCS18 CIRCULAR SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90596839 | 1 | RING | GB |  |
||
| 2 | 90591863 | 1 | GUARD LOWER | GB | |
||
| 3 | 90554559 | 1 | SCREW | GB | |
||
| 4 | 5147707-00 | 1 | BUMPER | GB | |||
| 5 | 90620617 | 1 | GUARD UPPER | GB | |
||
| 6 | 5148755-00 | 8 | SCREW | GB | |||
| 7 | 90599419 | 2 | FILTER | GB | |
||
| 8 | 5148017-00 | 1 | COVER | GB | |||
| 9 | 90599596 | 1 | SPRING | GB | |
||
| 10 | 90595283 | 1 | ROD | GB | |
||
| 11 | 90595286 | 1 | BUTTON | GB | |
||
| 12 | 5148018-00 | 1 | HOLDER | GB | |||
| 13 | N763978 | 1 | HOUSING SA | GB | |
||
| 14 | 5149025-00 | 1 | PLUG | GB | |
||
| 15 | 5148438-00 | 1 | TRIGGER | GB | |
||
| 16 | 5100035-03 | 2 | SPRING | GB | |
||
| 17 | N732192 | 1 | SWITCH & PCB SA | GB | |
||
| 18 | 90532025-02 | 1 | BUTTON LOCK-OFF | GB | |
||
| 19 | 90532974 | 1 | SPRING | GB | |
||
| 20 | N580753 | 1 | MOTOR & GEARCASE | GB | |
||
| 22 | 90593114-01 | 1 | BAFFLE | GB | |
||
| 23 | 90597104 | 1 | CAP | GB | |
||
| 26 | 90502723 | 1 | HEX KEY | GB | |
||
| 27 | 90501917 | 9 | SCREW | M3.5X16 | GB | ||
| 29 | 90503101-01 | 1 | KNOB | GB | |
||
| 30 | 490900-00 | 2 | WASHER | GB | |
||
| 31 | 5148557-01 | 1 | SCREW | M5X46 | GB | |
|
| 32 | 90595740 | 1 | SHOE SA | GB | |
||
| 33 | 497557-00 | 1 | NUT | GB | |
||
| 34 | 000000-11 | 2 | NO LONGER REQUIRED ON THIS UNIT | GB | |||
| 35 | 90599319 | 1 | WASHER | GB | |
||
| 36 | 90532402 | 1 | BOLT | GB | |
||
| 37 | N560693 | 1 | SPRING TORSION | GB | |
||
| 38 | N494099 | 1 | CHARGER SA | 0.4A | BDCCS18C1 | GB | |
| 40 | 90596020 | 1 | WASHER CLAMP | GB | |
||
| 41 | 90596168 | 1 | BLADE BOLT | GB | |
