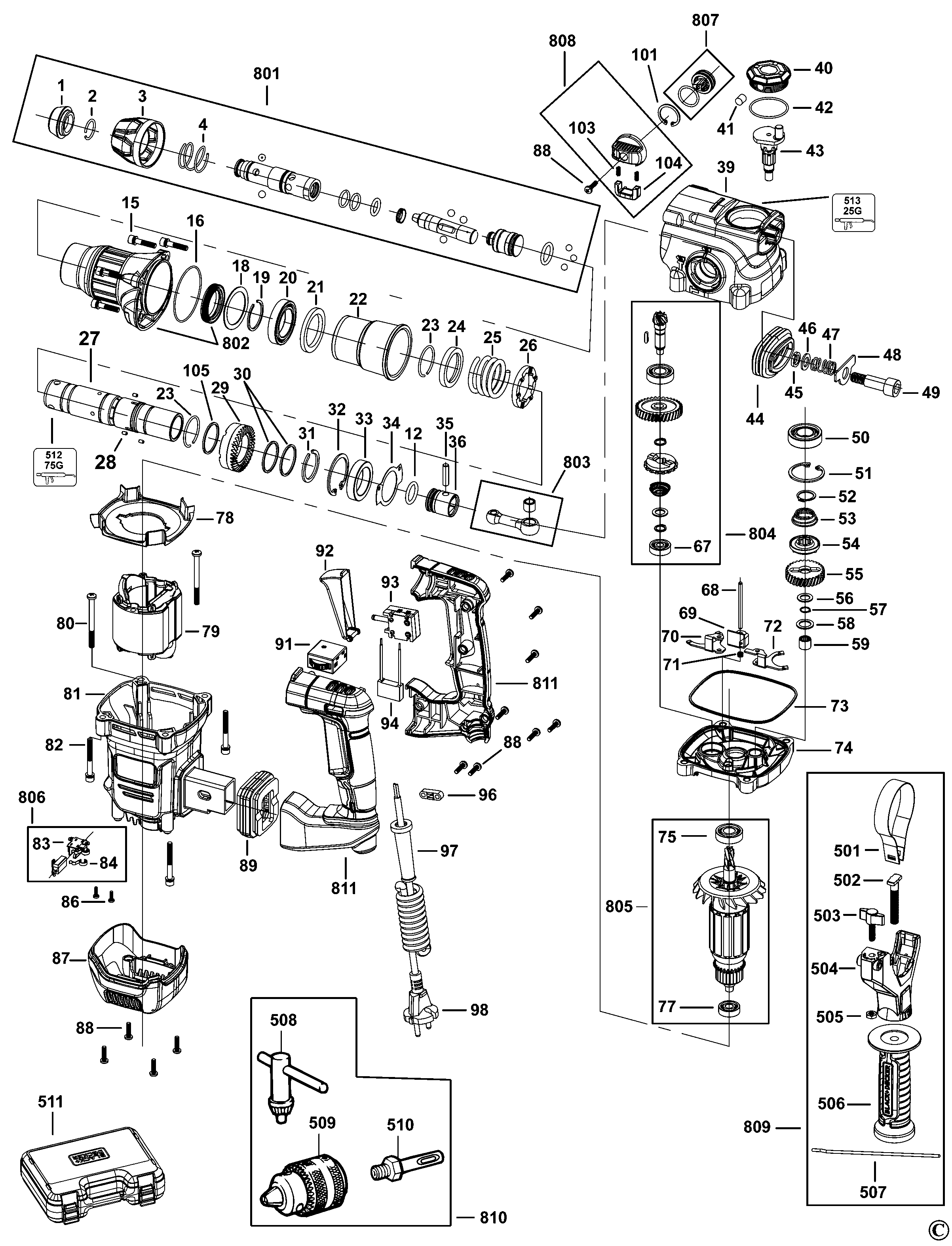

BEHS03 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004774-16 | 1 | BOOT | GB |  |
||
| 2 | 5140144-59 | 1 | CIRCLIP | GB | |
||
| 3 | 1004774-17 | 1 | COLLAR | GB | |
||
| 4 | 1004774-18 | 1 | SPRING | GB | |
||
| 15 | 1004774-21 | 1 | SCREW | GB | |
||
| 16 | 1004774-22 | 1 | O RING | GB | |
||
| 18 | 1004774-23 | 1 | WASHER | GB |  |
||
| 19 | 1004774-24 | 1 | RING | GB | |
||
| 20 | 1004774-25 | 1 | BEARING | GB | |
||
| 21 | 1004774-26 | 1 | RING | GB | |
||
| 22 | 1004774-27 | 1 | BUSH | GB | |
||
| 23 | 1004774-28 | 2 | RING | GB | |
||
| 24 | 1004774-29 | 1 | HOLDER | GB | |
||
| 25 | 1004774-30 | 1 | SPRING | GB | |
||
| 26 | 1004774-31 | 1 | CLUTCH | GB | |
||
| 27 | 1004774-32 | 1 | CYLINDER | GB | |
||
| 28 | 1004774-33 | 3 | PIN | GB | |
||
| 29 | 1004774-34 | 1 | GEAR | GB | |
||
| 30 | 1004774-35 | 2 | WASHER | GB | |
||
| 31 | 1004774-36 | 1 | RING | GB | |
||
| 32 | 1004774-37 | 1 | CIRCLIP | GB | |
||
| 33 | 1004774-38 | 1 | BUSH | GB | |
||
| 34 | 1004774-39 | 1 | BAFFLE | GB | |
||
| 35 | 5140147-41 | 1 | PIN | GB | |
||
| 36 | 1004774-40 | 1 | PISTON | GB | |
||
| 39 | 1004774-42 | 1 | GEARBOX | GB | |
||
| 40 | 1004774-43 | 1 | COVER | GB | |
||
| 41 | 1004774-44 | 1 | SEAL | GB | |
||
| 42 | 5140144-93 | 1 | O RING | GB | |
||
| 43 | 1004774-45 | 1 | CRANKSHAFT | GB | |
||
| 44 | 1004774-46 | 1 | DAMPER | GB | |
||
| 45 | 1004774-47 | 1 | RING | GB | |
||
| 46 | 1004774-48 | 1 | WASHER | GB | |
||
| 47 | 1004774-49 | 1 | SPRING | GB | |
||
| 48 | 1004774-50 | 1 | WASHER | GB | |
||
| 49 | 1004774-51 | 1 | SCREW | GB | |
||
| 50 | 1004774-52 | 1 | BEARING | GB | |
||
| 51 | 5140144-99 | 1 | CIRCLIP | GB | |
||
| 52 | 5140145-00 | 1 | CIRCLIP | GB | |
||
| 53 | 1004774-53 | 1 | SPRING | GB | |
||
| 54 | 1004774-54 | 1 | CLUTCH | GB | |
||
| 55 | 1004774-55 | 1 | GEAR | GB | |
||
| 56 | 1004774-56 | 1 | WASHER | GB | |
||
| 57 | 1004774-57 | 1 | RING | GB | |
||
| 58 | 1004774-58 | 1 | WASHER | GB | |
||
| 59 | 1004774-59 | 1 | BEARING | GB | |
||
| 67 | 1004774-61 | 1 | BEARING | GB | |
||
| 68 | 1004774-62 | 1 | GUIDE | GB | |
||
| 69 | 1004774-63 | 1 | STOP PLATE | GB | |
||
| 70 | 1004774-64 | 1 | SELECTOR FORK | GB | |
||
| 71 | 1004774-65 | 1 | SPRING | GB | |
||
| 72 | 1004774-66 | 1 | SELECTOR FORK | GB | |
||
| 73 | 1004774-67 | 1 | SEAL | GB | |
||
| 74 | 1004774-68 | 1 | COVER | GB | |
||
| 75 | 1004775-11 | 1 | BEARING | GB | |
||
| 77 | 5140145-15 | 1 | BEARING | GB | |
||
| 78 | 1004774-70 | 1 | FAN COVER | GB | |
||
| 79 | 1004774-71 | 1 | FIELD | GB | |
||
| 80 | 5140145-16 | 2 | SCREW | GB | |
||
| 81 | 1004774-72 | 1 | FIELDCASE | GB | |
||
| 82 | 1004774-73 | 4 | SCREW | GB | |
||
| 83 | 5140145-20 | 1 | BRUSH HOLDER PAIR | GB | |
||
| 84 | 5140145-23 | 2 | SPRING | GB | |
||
| 86 | 5140145-22 | 2 | SCREW | GB | |
||
| 87 | 1004774-75 | 1 | COVER | GB | |
||
| 88 | 1004774-76 | 13 | SCREW | GB | |
||
| 89 | 1004774-77 | 1 | DAMPER | GB | |
||
| 91 | 1004774-80 | 1 | POTENTIOMETER SA | GB | |
||
| 92 | 1004774-81 | 1 | TRIGGER | GB | |
||
| 93 | 1004774-82 | 1 | SWITCH | GB | |
||
| 94 | 1004774-83 | 1 | CAPACITOR | GB | |
||
| 96 | 1004774-84 | 1 | CORDCLAMP | GB | |
||
| 97 | 1004774-85 | 1 | CORD PROTECTOR | GB | |
||
| 97 | 1004774-86 | 1 | CORDSET | GB | |
||
| 101 | 1004774-90 | 1 | CIRCLIP | GB | |
||
| 103 | 1004774-91 | 2 | SPRING | GB | |
||
| 104 | 1004774-92 | 1 | BUTTON | GB | |
||
| 105 | 1004775-44 | 1 | WASHER | GB | |
||
| 501 | 1004775-04 | 1 | CLAMP | GB | |
||
| 502 | 1004775-05 | 1 | BOLT | GB | |
||
| 503 | 1004775-06 | 1 | LOCKING SCREW | GB | |
||
| 504 | 1004775-07 | 1 | BRACKET | GB | |
||
| 505 | 1004775-08 | 1 | NUT M6 | GB | |
||
| 506 | 1004775-09 | 1 | SIDE HANDLE | GB | |
||
| 507 | 1004775-10 | 1 | DEPTH ROD | GB | |
||
| 508 | 1004692-32 | 1 | CHUCK KEY | GB | |
||
| 509 | 1004692-33 | 1 | CHUCK | GB | |
||
| 510 | 1004692-34 | 1 | ADAPTOR | SDS | GB | |
|
| 511 | 1004775-01 | 1 | KITBOX | GB | |
||
| 512 | 1004775-02 | 1 | GREASE | 75g - CYLINDER | GB | |
|
| 513 | 1004775-03 | 1 | GREASE | 25g -GEAR BOX | GB | |
|
| 801 | 1004774-19 | 1 | SPINDLE SA | GB | |
||
| 802 | 1004774-20 | 1 | HEAD SA | GB | |
||
| 803 | 1004774-41 | 1 | CON ROD SA | GB | |
||
| 804 | 1004774-60 | 1 | GEAR SA | GB | |
||
| 805 | 1004774-69 | 1 | ARMATURE SA | GB | |
||
| 806 | 1004774-74 | 1 | BRUSH PAIR SA | GB | |
||
| 807 | 1004774-88 | 1 | LEVER SA | GB | |
||
| 808 | 1004774-94 | 1 | KNOB SA | GB | |
||
| 809 | 1004774-95 | 1 | HANDLE SA | GB | |
||
| 810 | 1004774-97 | 1 | CHUCK SA | GB | |
||
| 811 | 1004774-78 | 1 | SWITCH HANDLE | GB | |
