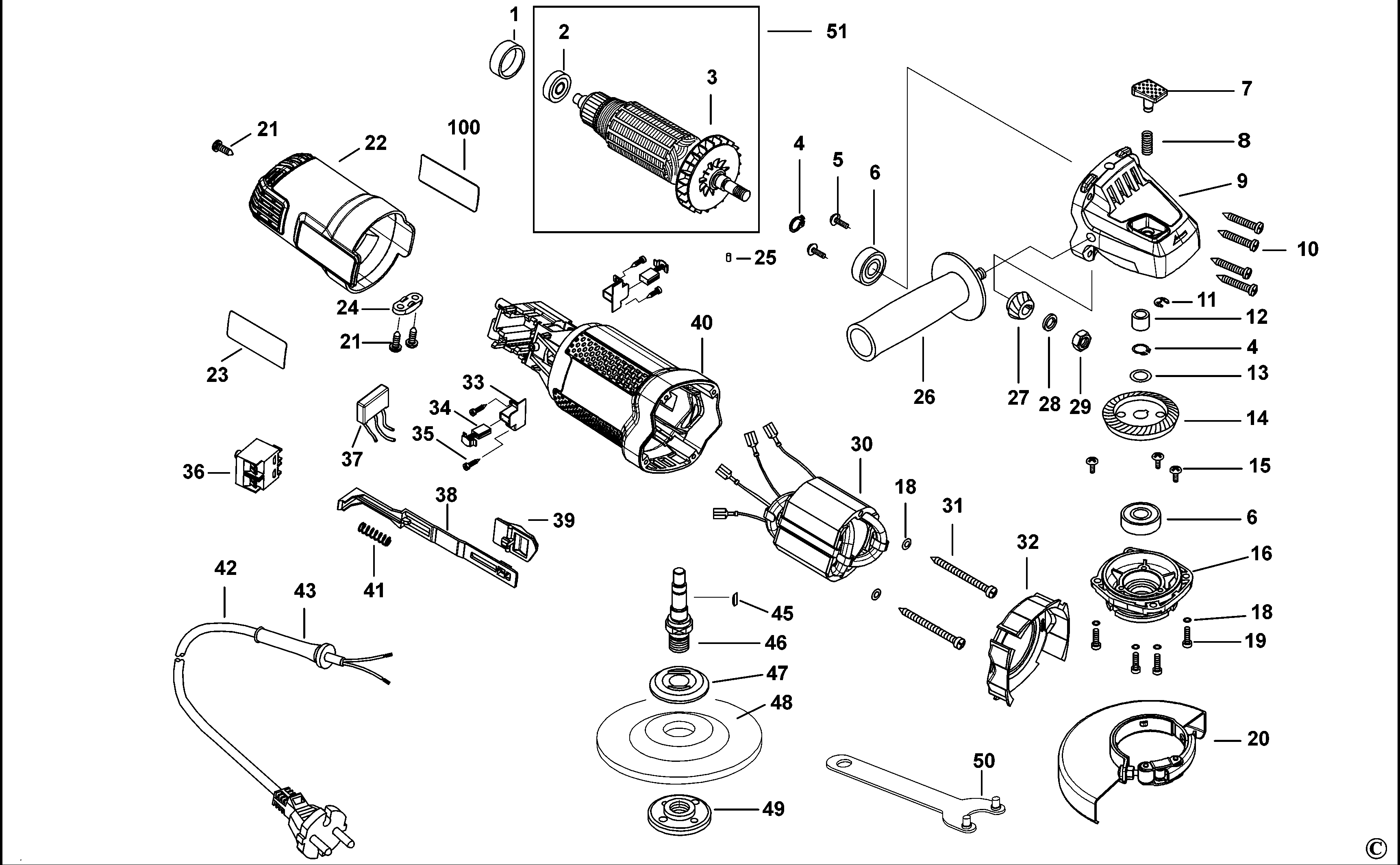

G720G SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140003-59 | 1 | BEARING HOLDER | XJ |  |
||
| 2 | 5140003-60 | 1 | BEARING | XJ | |
||
| 3 | 1004734-10 | 1 | ARMATURE SA | No. 51 | XJ | |
|
| 4 | 5140003-64 | 2 | LOCKING RING | XJ | |
||
| 5 | 5140003-89 | 2 | SCREW | XJ | |
||
| 6 | 5140003-66 | 2 | BEARING | Ø26xØ10x8 | XJ | |
|
| 7 | 5140121-89 | 1 | LOCK PIN | XJ | |
||
| 8 | 5140065-70 | 1 | SPRING | XJ | |
||
| 9 | 5140121-90 | 1 | GEARCASE | XJ | |
||
| 10 | 5140065-72 | 4 | SCREW | XJ |  |
||
| 11 | 5140003-64 | 1 | LOCKING RING | Ø5 | XJ | |
|
| 12 | 5140003-72 | 1 | BEARING | XJ | |
||
| 13 | 5140003-73 | 1 | WASHER | XJ | |
||
| 14 | 5140003-75 | 1 | GEAR | XJ | |
||
| 15 | 5140003-94 | 3 | SCREW | XJ | |
||
| 16 | 5140121-91 | 1 | HOUSING FRONT | XJ | |
||
| 18 | 5140003-79 | 6 | WASHER | XJ | |||
| 19 | 5140003-80 | 4 | SCREW | M4x14 | XJ | ||
| 20 | 5140003-81 | 1 | GUARD | XJ | |
||
| 21 | 5140003-99 | 3 | SCREW | XJ | |
||
| 22 | 5140121-94 | 1 | END CAP | XJ | |
||
| 24 | 5140002-48 | 1 | CORD CLAMP | XJ | |||
| 25 | 5140003-88 | 1 | LOCK SCREW | XJ | |||
| 26 | 5140003-90 | 1 | HANDLE | XJ | |||
| 27 | 5140003-91 | 1 | PINION | XJ | |
||
| 28 | 5140003-92 | 1 | WASHER SPRING | XJ | |
||
| 29 | 5140003-93 | 1 | NUT | XJ | |
||
| 30 | 5140003-95 | 1 | STATOR SA 220V | 220V | XJ | |
|
| 31 | 5140004-04 | 2 | SCREW | XJ | |
||
| 32 | 5140122-02 | 1 | BAFFLE FAN | XJ | |
||
| 33 | 5140002-37 | 2 | BRUSH HOLDER | XJ | |
||
| 34 | 90601642 | 1 | BRUSH PAIR | XJ | |
||
| 37 | 90606319 | 1 | CAPACITOR | XJ | |
||
| 37 | 5140004-01 | 1 | CONDENSOR | XJ | |||
| 38 | 5140122-05 | 1 | LEVER | XJ | |
||
| 39 | 5140122-06 | 1 | BUTTON | XJ | |
||
| 40 | 5140122-01 | 1 | HOUSING | XJ | |
||
| 41 | 5140065-88 | 1 | SPRING | XJ | |
||
| 43 | 5140002-29 | 1 | SLEEVE | XJ | |
||
| 45 | 5140004-05 | 1 | WOODRUFF KEY | XJ | |
||
| 46 | 5140004-06 | 1 | SPINDLE | XJ | |
||
| 47 | 5140002-52 | 1 | FLANGE | XJ | |
||
| 48 | 5140065-90 | 1 | DISC | XJ | |
||
| 49 | 5140004-07 | 1 | NUT | FLANGE | XJ | |
|
| 50 | 5140005-89 | 1 | SPANNER | XJ | |||
| 51 | 1004734-10 | 1 | ARMATURE SA | XJ | |
||
| 100 | 90599226 | 1 | BRAND LABEL | XJ | |
