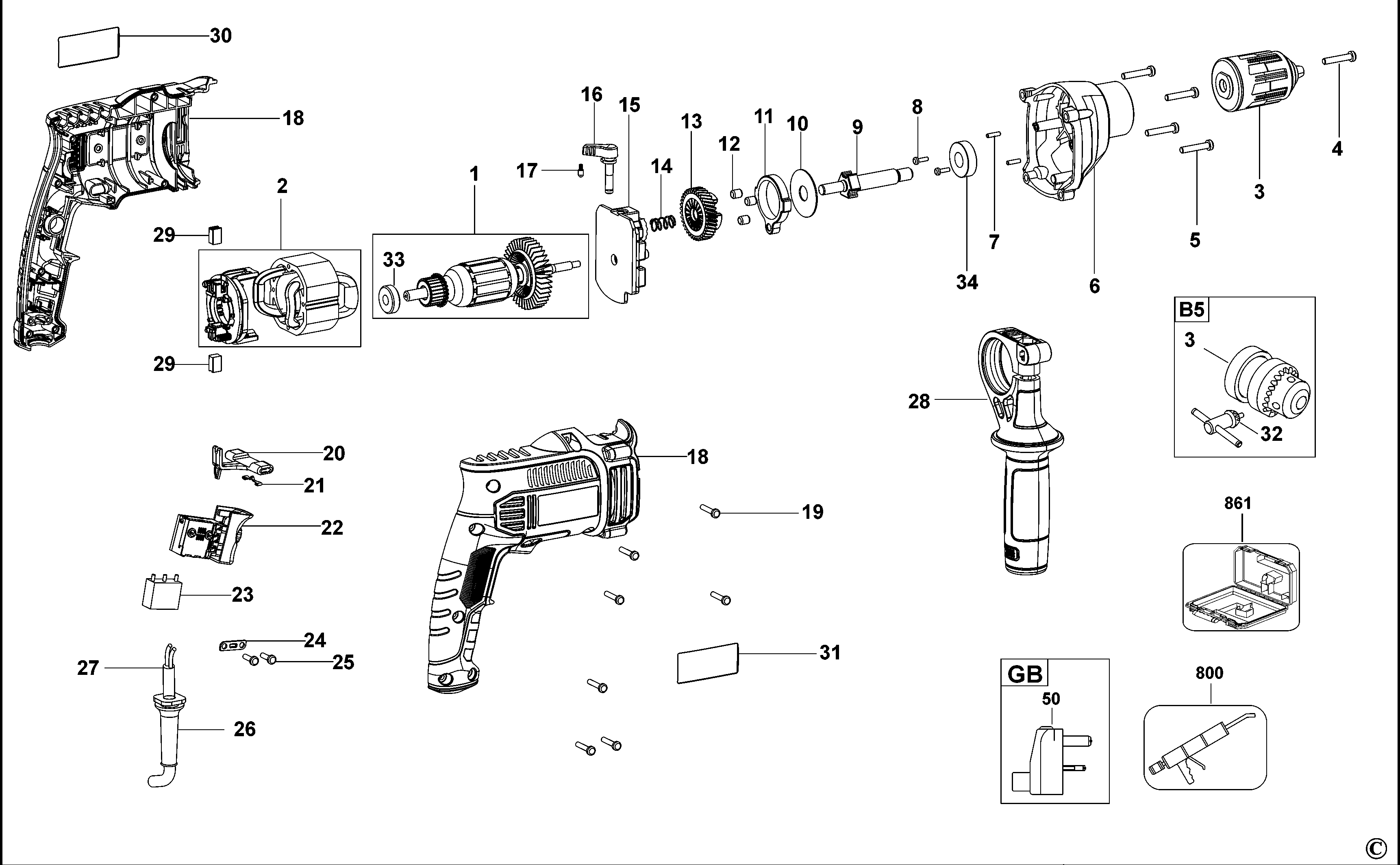

KR806K DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90573879 | 1 | ARMATURE | GB |  |
||
| 2 | 90573880 | 1 | FIELD SA | GB |  |
||
| 3 | 629530-01L | 1 | CHUCK KEYLESS | GB | |
||
| 4 | 90552945 | 1 | SCREW.SPECIAL | M5 x 18mm LH | GB | |
|
| 5 | 330019-32 | 4 | SCREW | GB | |
||
| 6 | 90631931 | 1 | GEARCASE SA | GB | |
||
| 7 | 330041-12 | 1 | PIN | GB | |
||
| 8 | 330045-01 | 2 | SCREW | GB | |||
| 9 | 90564352 | 1 | SPINDLE SA | GB | |
||
| 10 | 478753-00 | 1 | WASHER | GB | |
||
| 11 | 90564351 | 1 | CARRIER | GB | |
||
| 12 | 90571958 | 3 | PIN | GB | |
||
| 13 | 90567546 | 1 | GEAR | GB | |
||
| 14 | 90571237 | 1 | SPRING | GB | |
||
| 15 | 90564356 | 1 | BEARING HOUSING | GB | |
||
| 16 | 90564365 | 1 | LEVER | GB | |
||
| 17 | 90573075 | 1 | PIN | GB | |
||
| 18 | 90573144N | 1 | HOUSING SA | GB | |
||
| 19 | 330019-03 | 7 | SCREW | GB | |
||
| 20 | 90564324 | 1 | LEVER | GB | |
||
| 21 | 90560638 | 1 | SPRING | GB | |
||
| 22 | 90541944N | 1 | SWITCH SA | GB | |
||
| 23 | 90574765 | 1 | CAPACITOR | GB | |
||
| 24 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 25 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 26 | 770235 | 1 | PROTECTOR | GB | |
||
| 27 | 90570474 | 1 | CORDSET (EURO) | GB | |
||
| 28 | 614670-01 | 1 | HANDLE SA | GB | |
||
| 29 | 90573527 | 2 | BRUSH | GB | |
||
| 30 | 90568926 | 1 | BRAND LABEL | GB | |
||
| 31 | 90568929 | 1 | RATING PLATE | GB | |
||
| 33 | 574853-08 | 1 | BEARING | GB | |
||
| 34 | 606290-00 | 1 | BEARING | GB | |
||
| 50 | 588384-00 | 1 | ADAPTOR SA | GB | |
||
| 51 | 90632897 | 1 | DEPTH STOP | GB | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB | |
