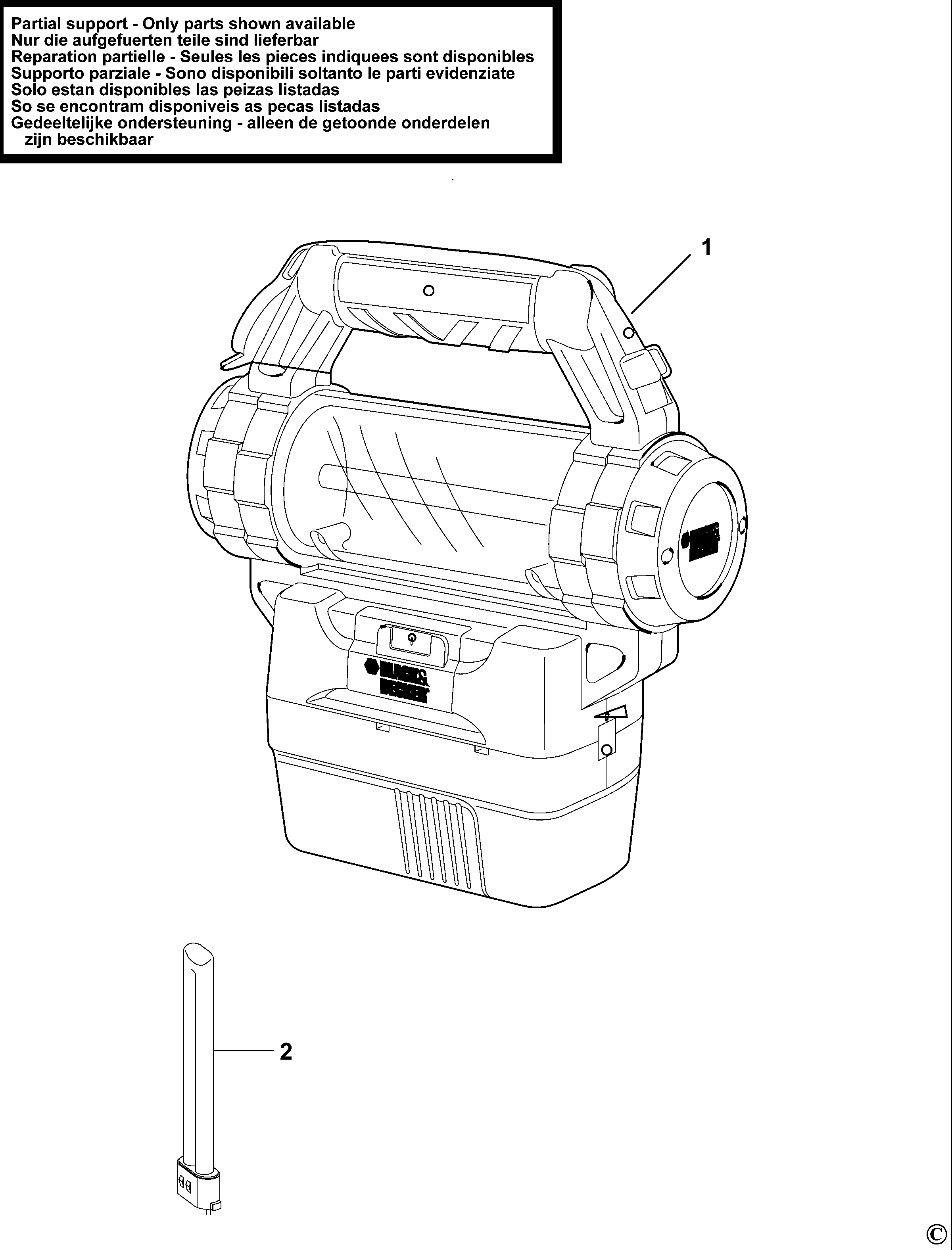

BD18AL TORCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | GB | |||
| 1 | 5170033-14 | 1 | TRIGGER | GB | |||
| 2 | 1004423-01 | 1 | BULB | DE5273; DE5273-XJ | GB |  |
|
| 2 | 748161-02 | 2 | SWITCH | GB | |
||
| 3 | 90517008 | 1 | SPRING | GB | |||
| 4 | N381521 | 1 | LINK | GB |  |
||
| 5 | 562230-00 | 1 | IDENTITY LABEL | GB | |
||
| 6 | 561922-00 | 1 | LABEL | GB | |
||
| 7 | 1005703-00 | 1 | WASHER | GB | |
||
| 8 | 6010119-16 | 15 | RING | GB | |
||
| 10 | 562233-00 | 1 | SCREW | GB | |
||
| 11 | 590443-00 | 1 | CLAMSHELL SET | GB | |||
| 12 | 562215-00 | 1 | BAFFLE | GB | |
||
| 13 | 562252-00 | 1 | GEARCASE COVER | GB | |
||
| 14 | 6010129-51 | 1 | GIFT BOX | GB | |||
| 15 | 90508160 | 1 | DEFLECTOR | WVF60 | GB | |
|
| 16 | N017894 | 1 | RATING PLATE | DC >2007 49 | GB | ||
| 17 | 90570102 | 2 | PIN | DC >2007 49 | GB | |
|
| 17 | 561917-01 | 2 | O RING | DC <2007 49 | GB | |
|
| 18 | 5102290-01 | 1 | SCREW | M3 X 12.5FH | GB | |
|
| 19 | N029033 | 1 | CAPACITOR | GB | |||
| 20 | 90568785 | 1 | FENCE | GB | |
||
| 21 | 90562332 | 1 | COLLAR | DC >2007 49 | GB | |
|
| 21 | 499059-00 | 1 | SPRING | DC <2007 49 | GB | |
|
| 22 | 569599-04 | 1 | GEARCASE SA | GB | |
||
| 23 | 589011-01 | 1 | GEARCASE SA | GB | |
||
| 24 | 90632259 | 2 | HANDLE SA | Inc items 24 - 54 | GB | |
|
| 25 | 5102759-05 | 1 | RATING PLATE | GB | |||
| 26 | 5102767-60 | 1 | CHARGER SA | GB | |||
| 27 | 1004441-04 | 2 | CORDSET | GB | |||
| 28 | 561928-00 | 1 | PIN | GB | |
||
| 29 | 1003297-00 | 1 | SWITCH | GB | |||
| 30 | 90626849 | 1 | SPRING | GB | |
||
| 32 | 562222-00 | 1 | END CAP | GB | |
||
| 33 | 561920-00 | 1 | PIN | GB | |
||
| 34 | 747507 | 1 | SCREW | GB | |
||
| 35 | 796819-18 | 1 | MOTOR SA | GB | |||
| 40 | 327100-00 | 1 | CASTING SA | GB | |
||
| 41 | 498641-00 | 1 | PCB SA | GB | |||
| 42 | 748191-01 | 1 | SWITCH VARIABLE | GB | |
||
| 43 | 748159-01 | 1 | INSERT | GB | |
||
| 46 | 747487 | 2 | ELECTRONIC SA | GB | |||
| 47 | 578661-03 | 1 | DOOR | GB | |
||
| 48 | 1004745-98 | 2 | ADAPTOR | GB | |
||
| 49 | 748173-02 | 1 | PCB | GB | |
||
| 50 | 496440-00 | 1 | REPAIR KIT | GB | |
||
| 51 | 748173-03 | 1 | PCB | GB | |
||
| 53 | 1004745-98 | 3 | ADAPTOR | GB | |
||
| 54 | 573580-00 | 1 | BOWL | GB | |
||
| 55 | N095619 | 1 | BRACKET | Cinderson motor | GB | ||
| 56 | 607918-55 | 1 | BIT SCREWDRIVER | PH2 / SL8 | GB | ||
| 800 | 498659-01 | 1 | WHEEL SPEED | 10 Gms | GB | ||
| 847 | 90562314 | 1 | PIN | Inc Itm 16,17,18,21 | GB | |
