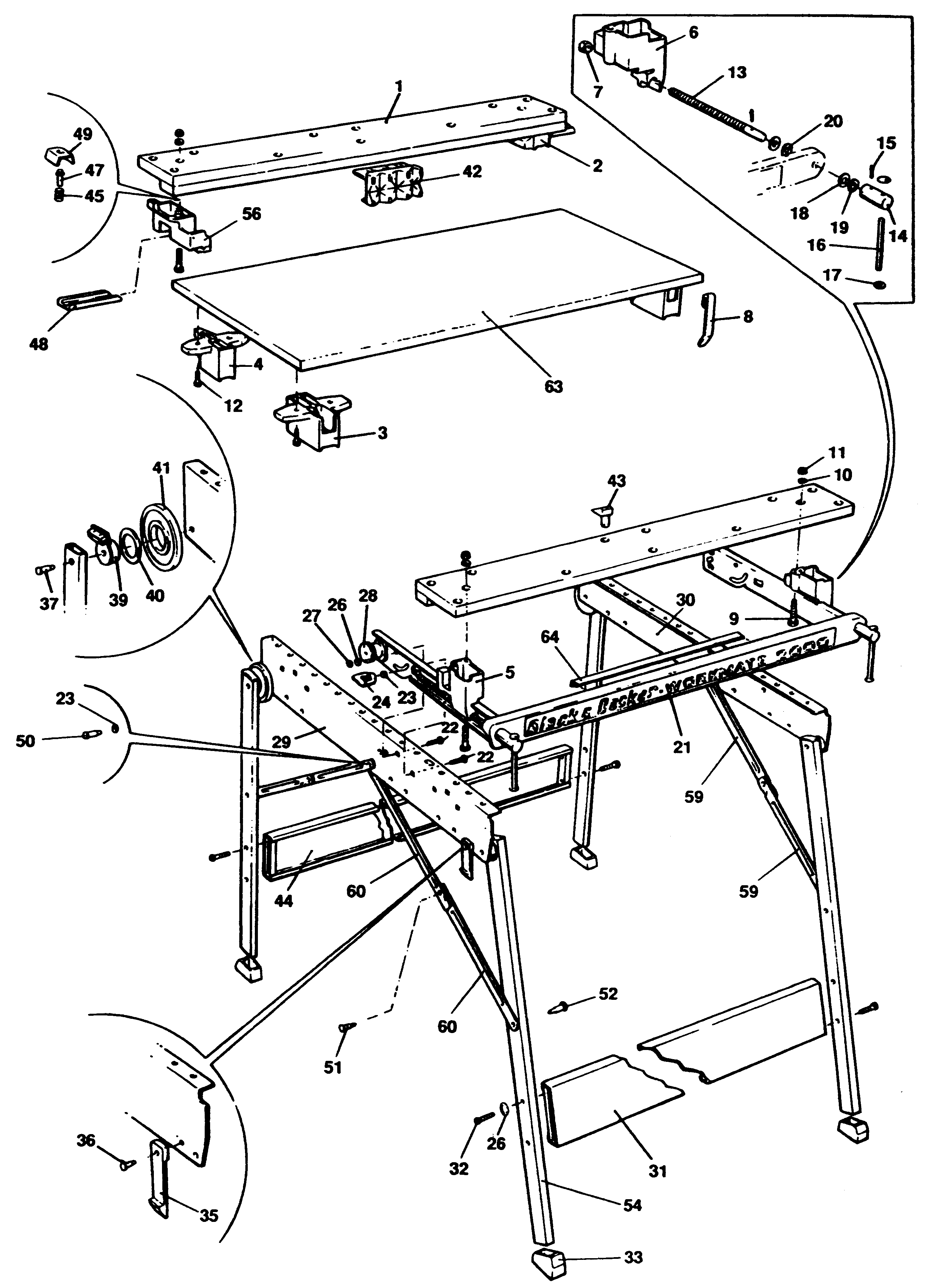

WM1000 WORKMATE Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	201505	2	VICE JAW		XJ
2	1515	1	BLOCK RH		XJ
3	301507	2	SUPPORT	WM2000	XJ
4	301508	2	SUPPORT	WM2000	XJ
5	1518	1	BLOCK LH		XJ
6	1517	1	BLOCK RH		XJ
7	725855	2	NUT	TYPE Y1	XJ
8	601526	2	CLIP	WM2000	XJ
9	942043-00	4	SCREW		XJ
10	725267	4	WASHER		XJ
11	725886	4	NUT		XJ
12	933355	8	SCREW	WM2000	XJ
13	725856	2	VICE SCREW	TYPE Y1	XJ
13	701522	2	VICE SCREW	TYPE A1-B1	XJ
14	725852	2	KNOB		XJ
15	725885	4	ROLLPIN		XJ
17	201503	4	CAP		XJ
18	725851	2	BUSH	TYPE Y1	XJ
19	601554	4	WASHER		XJ
20	725853	2	WASHER	TYPE Y1	XJ
21	901513	1	BRACKET SA		XJ
22	401513	4	SCREW		XJ
23	934849	4	WASHER		XJ
24	725887	2	NUT WING		XJ
26	880391	10	WASHER		XJ
27	725125	2	NUT		XJ
28	901511	2	KNOB		XJ
29	726213	1	FRAME LH	WM1000	XJ
29	725925	1	FRAME LH	WM2000	XJ
30	725926	1	FRAME RH	WM2000	XJ
30	726214	1	FRAME RH	WM1000	XJ
31	725923	1	STEP FRONT		XJ
32	11197	8	SCREW		XJ
33	301536	4	FOOT		XJ
35	301506	2	LATCH	WM2000	XJ
36	726322	2	RIVET	WM2000	XJ
37	726325	2	RIVET		XJ
39	301504	4	SPACER		XJ
40	601520	2	WASHER	WM2000	XJ
41	301505	2	WHEEL	WM2000	XJ
42	301509	2	BLOCK		XJ
43	820834	4	GRIP		XJ
44	725924	1	STEP REAR		XJ
45	501514	2	SPRING		XJ
47	701521	2	PIN		XJ
48	601483	2	LEVER		XJ
49	601484	2	BRACKET		XJ
50	726326	2	RIVET		XJ
51	726324	4	RIVET		XJ
52	726323	4	RIVET		XJ
54	726216	4	LEG	WM1000	XJ
54	601506	4	LEG	WM2000	XJ
56	1516	1	BLOCK LH		XJ
59	725920	2	ROD SA		XJ
63	201502	1	BOARD	WM2000	XJ
64	201506	1	BEAM		XJ
